Description
Reliable 100A Double Pole Main Switch by Garo

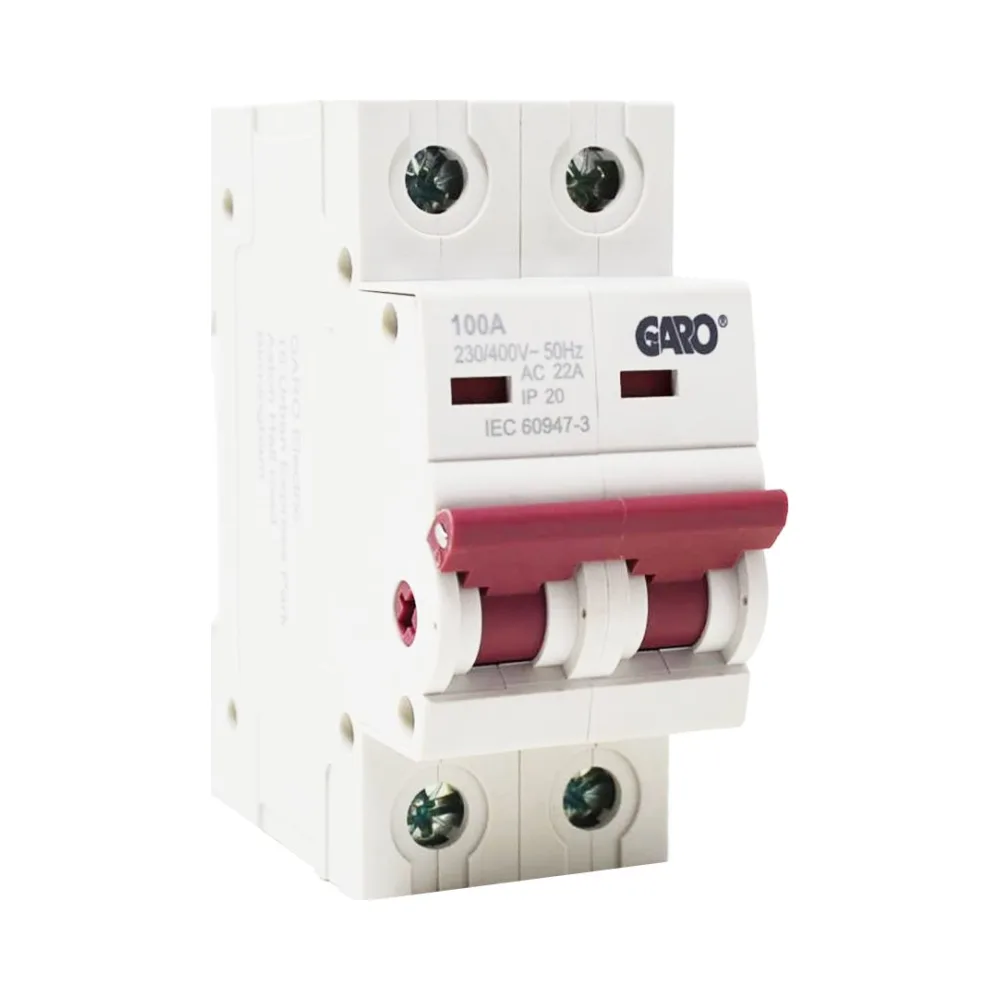

Garo DSV2100
The Garo DSV2100 100A Double Pole Main Switch is designed to ensure efficient isolation and protection in electrical installations. With a rated current of 100A and compliance with IEC/EN 60947-3 standards, this switch is ideal for both residential and commercial applications. It provides robust protection with a rated short-time withstand current of 1500A for 1 second and a rated impulse withstand voltage of 4 kV. This high-quality modular isolator is built to handle a voltage range of 230/400V AC, ensuring safety and durability in any installation.
Its compact 68mm height allows for easy DIN rail installation, while its terminal capacity of 1-50mm² ensures versatility for various wiring sizes. The device also features a mechanical contact position indicator (red/green) for easy operation, making it both practical and user-friendly. Operating within a temperature range of -25°C to +55°C, the Garo DSV2100 is built to withstand challenging conditions.
Key Features – Garo DSV2100 100A Double Pole Main Switch:
- Rated Current: 100A, suitable for diverse electrical installations.
- High Impulse Withstand: 4 kV rated impulse withstand voltage.
- Short-Time Withstand: 1500A for 1 second, ensuring protection from short-circuit faults.
- Versatile Terminal Capacity: Supports wiring from 1-50mm² for flexible installations.
- Mechanical Contact Indicator: Red/green position indicator for easy operation.
- Temperature Range: -25°C to +55°C, designed for demanding environments.
- IEC/EN 60947-3 Compliant: Meets international electrical safety standards.
Technical Overview:
- Rated Operational Voltage (Ue): 230/400V AC
- Rated Insulation Voltage (Ui): 1000V
- Rated Frequency: 50/60Hz
- Utilization Category: AC-22B
- Rated Short-Circuit Making Capacity (Icm): 2200A peak
- Rated Conditional Short-Circuit Current: 4 kA (with 100A fuse)
Why Choose This Product?
The Garo DSV2100 100A Double Pole Main Switch is an essential component for ensuring safety and efficiency in electrical systems. Its robust design and reliable performance make it an excellent choice for both residential and commercial projects. With its compliance to international standards and its ease of installation, this switch ensures that your electrical installations are safe and compliant with industry regulations.
Guarantee & Compliance
This product is covered by the Garo warranty, ensuring reliable performance and peace of mind.
