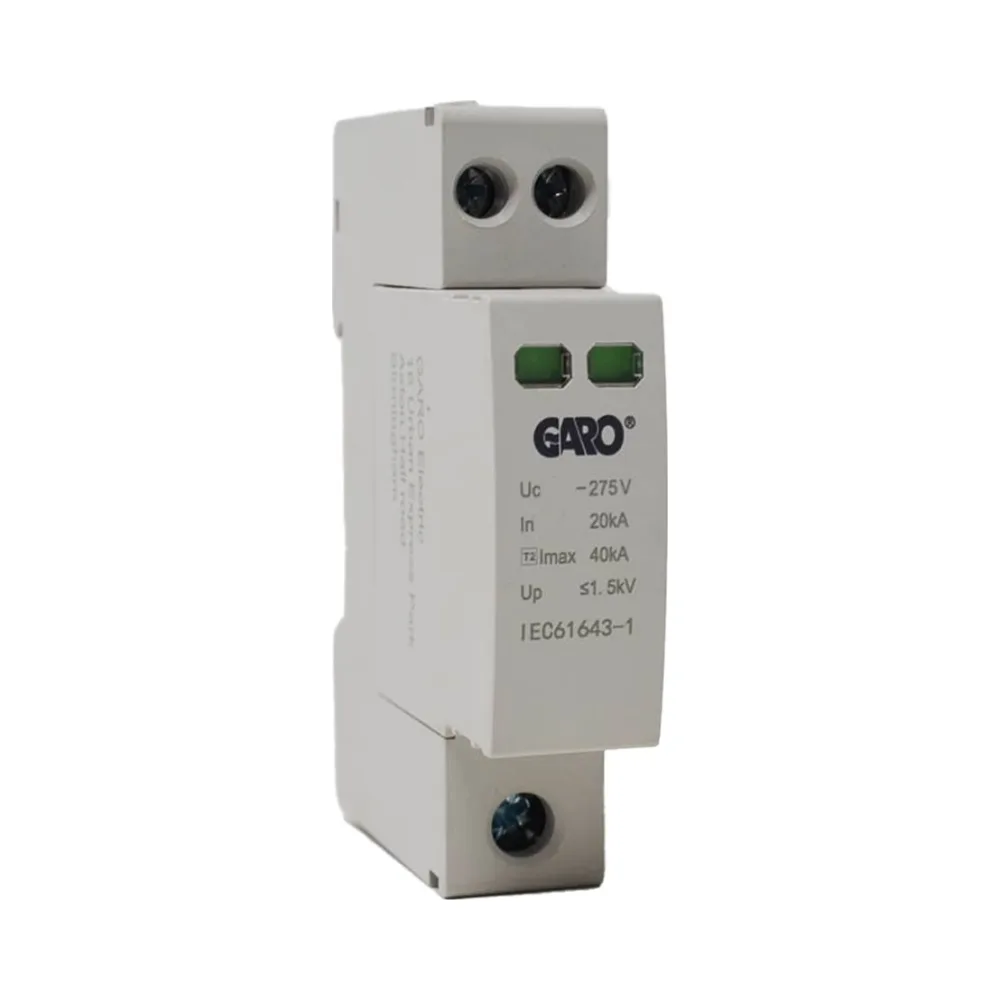

Complete Protection Kit with Garo 2 Pole Type 2 SPD
Garo DST2-275-2KIT
The Garo 2 Pole Type 2 SPD With Cable Kit provides the same robust surge protection as the standard DST2-275-2, but with the added convenience of pre-supplied Earth, Neutral, and Live cables. This all-in-one kit simplifies installation while ensuring compliance with IEC surge protection standards. Designed for TN-S and TNC-S systems.
Key Features – Garo 2 Pole Type 2 SPD With Cable Kit
- 2 Pole, 1 module pluggable SPD design with pre-terminated cables
- Includes Earth, Neutral, and Live connection leads
- Nominal discharge current: 20kA (8/20µs)
- Maximum discharge current: 50kA (8/20µs)
- Maximum continuous operating voltage (Uc): 275V AC
- Voltage protection level (Up): 1.5kV
- Thermal disconnector and visual status indication
- Remote contact option for monitoring
- Compliant with IEC 61643-11:2011, EN 61643-11:2012, and UL 1449 4th Edition
⚙️ Technical Overview – Garo 2 Pole Type 2 SPD With Cable Kit
- System use: Sub-distribution boards, TN-S and TNC-S systems
- Mode of protection: L-PEN
- Nominal voltage (Un): 240V AC (50/60Hz)
- Temporary overvoltage withstand (UT): 337V (5s), 442V (120min)
- Short-circuit current rating: 150kA
- Operating temperature: -40°C to +85°C
- Housing: Thermoplastic, UL 94 V-0 flame-retardant
- Mounting: 35mm DIN rail (EN 60715)
- Degree of protection: IP20 (built-in)
Why Choose This Product?
The Garo 2 Pole Type 2 SPD Kit offers reliable surge protection with maximum ease of use. With pre-supplied Earth, Neutral, and Live cables, installers save time and effort while maintaining a high level of safety and compliance.
✅ Guarantee & Compliance
This surge protection device kit is manufactured by Garo AB in compliance with IEC, EN, and UL standards. It meets the requirements of the Low Voltage Directive (2014/35/EU), EMC Directive (2004/108/EU), and RoHS Directive (2011/65/EU).
