G-ProBox 100A Bi-Directional Three-Phase Modbus Compact Check Meter

Description

100A Bi-Directional Three-Phase Modbus Compact Check Meter

G-ProBox COMPAC-MET-100A-3PHASE-BI

High-Precision MID-Approved Meter for PV, EV, and BMS Applications -100A Bi-Directional Three Phase Modbus Check Meter

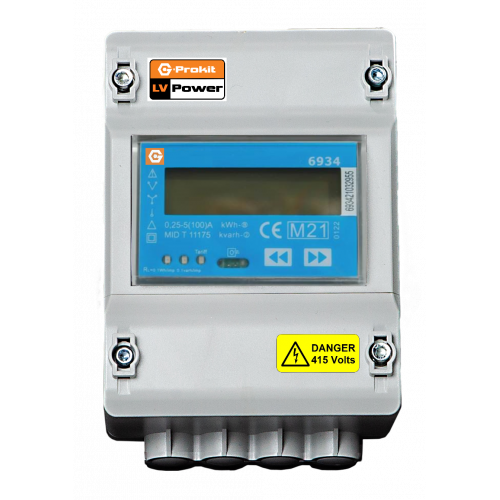

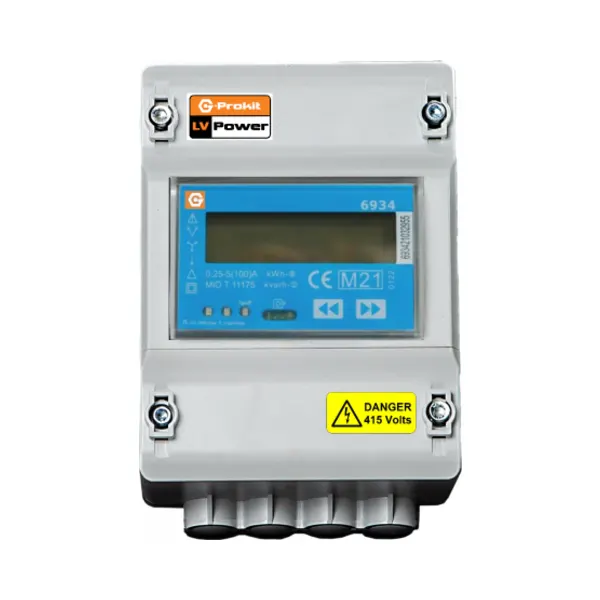

The G-ProBox 100A Bi-Directional Three-Phase Modbus Compact Check Meter is a high-quality, direct-connected energy meter designed for photovoltaic systems (PV), electric vehicle chargers (EV), and building management systems (BMS). Its compact 4-DIN module size, bi-directional energy measurement, and advanced communication capabilities make it ideal for accurate energy tracking and billing applications.

This meter complies with the Measuring Instruments Directive (MID) 2014/32/EU, ensuring class B accuracy for active energy (±1%) and class 2 accuracy for reactive energy. With support for RS485 Modbus RTU and DLT645 protocols, along with infrared communication and pulse output, this device provides seamless integration into modern energy management systems.

Key Features

• MID Approved – Fully compliant with MID standards for accurate energy measurement and billing
• Bi-Directional Measurement – Tracks both import and export active energy, ideal for PV and battery storage applications
• Dual Communication Protocols – Supports RS485 Modbus RTU and DLT645 for flexible data transmission
• Infrared & Pulse Output – Enables easy remote data collection and programming
• User-Friendly LCD Display – Provides real-time energy readings and system diagnostics
• Compact Design – 4 DIN-module size for easy installation in space-constrained panels
• Adjustable Settings – Supports custom programming via Modbus, M-Bus, or infrared interface

Energy Measurement & Display Functions

The LCD display allows users to navigate and view essential energy data, including:

• Active Energy (Total & Per Phase)
• Reactive Energy (Total & Per Phase)
• Instantaneous Voltage, Current, Power (Active, Reactive, Apparent)
• Power Factor (COS φ), Frequency
• Forward & Reverse Energy Tracking
• Customisable Display Pages with Automatic Scroll Function

Advanced Communication & Settings

The G-ProBox 100A Check Meter offers extensive configurability through Modbus, M-Bus, or Infrared commands. Key programmable settings include:

• Modbus/M-Bus ID: Set between 1-247 (Modbus) and 1-250 (M-Bus)
• Baud Rate: Adjustable from 300 to 9600
• Modbus Parity: Even, None, or Odd
• LCD Backlight Mode: ON, OFF, or Button Mode
• Automatic Scroll Timing: Adjustable from 1-30 seconds
• S0 Output Pulse Rate: Selectable from 10,000 to 0.01 imp/kWh
• Password Protection: Secure access in program mode 3

Applications

• Solar PV & Battery Storage Systems
• EV Charging Stations
• Building Management Systems (BMS)
• Industrial and Commercial Energy Monitoring

Why Choose This Product?

The G-ProBox 100A Three-Phase Check Meter delivers precise, real-time energy tracking for billing, compliance, and energy management. Its MID certification, multiple communication protocols, and bi-directional energy tracking make it the ideal choice for PV, EV, and BMS applications.

Compliance & Standards

• MID Approved (Measuring Instruments Directive 2014/32/EU)
• BS EN 50470-1 & BS EN 50470-3 Certified
• Class B Active Energy Accuracy (±1%)
• Class 2 Reactive Energy Accuracy
