Description
Accurate Three Phase Energy Monitoring

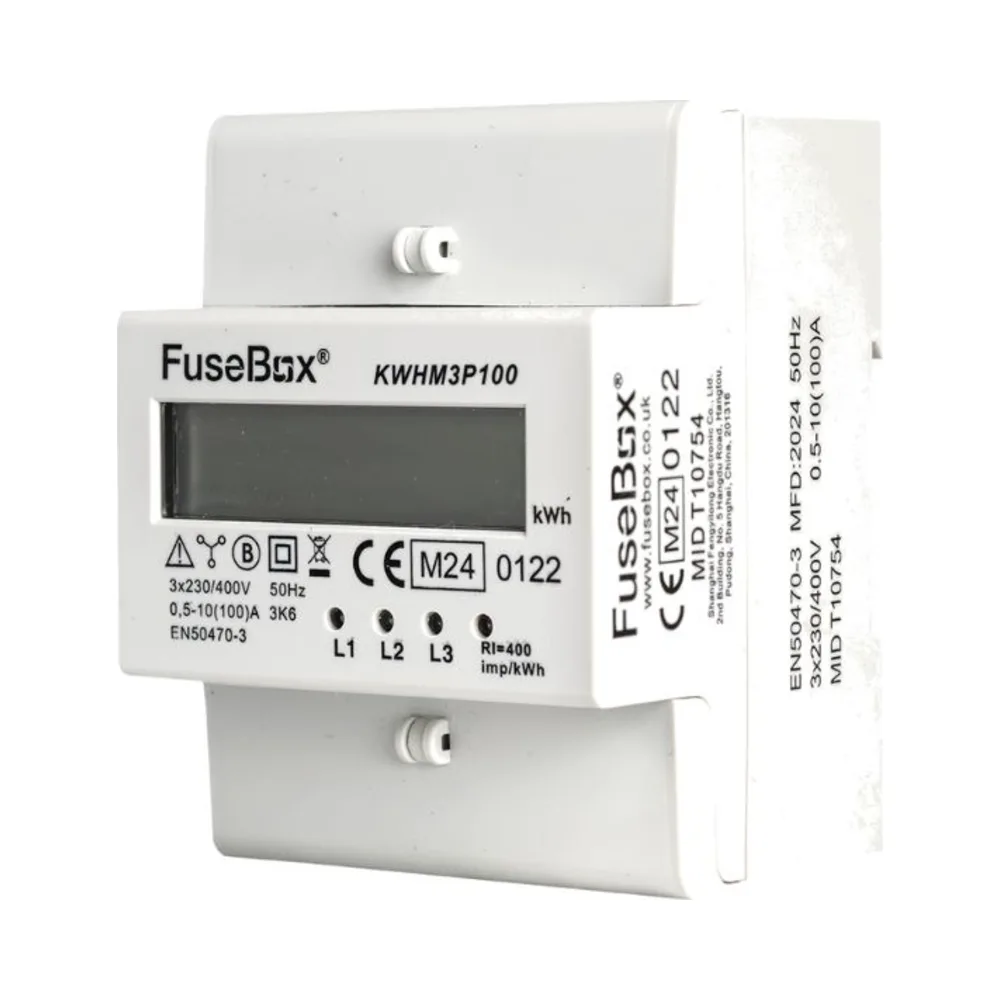

KWHM3P100 – FuseBox KWHM3P100 Three Phase Energy Meter
The FuseBox KWHM3P100 Three Phase kWh Energy Meter offers precise energy measurement for domestic, commercial, and industrial installations. This MID-certified meter supports up to 100A direct connection, providing reliable tracking of power consumption across three-phase circuits.
Designed for durability and ease of installation, it features a compact four-module DIN rail design, a clear backlit LCD display, and a pulse output for data integration. Terminal access can be wire sealed to prevent tampering, ensuring security and compliance in professional setups.
✨ Key Features – FuseBox KWHM3P100 Three Phase Energy Meter
- MID-certified three phase energy meter for accurate consumption monitoring
- Direct connection up to 100A | Ideal for domestic, commercial, and industrial use
- Backlit LCD for clear visibility in all conditions
- Compact 4-module DIN rail design for easy installation
- Pulse output (400/1000 imp/kWh) for remote data systems
- Seal-ready terminals to prevent unauthorised access
📐 Technical Overview – FuseBox KWHM3P100 Three Phase Energy Meter
- Voltage: 3×230/400V AC (range 3×161/279V to 300/500V)
- Rated current: 5(100)A
- Frequency: 50Hz (±10%)
- Accuracy: Class B (EN 50470-3)
- Power consumption: ≤2W / 10VA per phase
- Operating temperature: -25°C to +55°C
- Protection class: IP51 | Insulation class II
- Mounting: 35mm top-hat DIN rail
- Max cable size: 35mm² | Terminal torque: 1.2Nm
- Memory backup: EEPROM | Data retention: 20+ years
✅ Why Choose This Product?
The KWHM3P100 provides dependable three phase energy metering with precision and protection. Its robust design, MID certification, and secure installation features make it ideal for engineers, electricians, and facilities managers monitoring multi-phase loads.
🔎 About FuseBox
FuseBox is a trusted UK brand known for reliable circuit protection and energy monitoring solutions. Their products combine installer-friendly designs with compliance to UK and EU standards, ensuring confidence and accuracy in every installation.
🛡️ Guarantee & Compliance
The KWHM3P100 complies with EN 50470-3 and MID standards for energy measurement accuracy. All FuseBox meters undergo rigorous testing for quality, safety, and long-term reliability.
