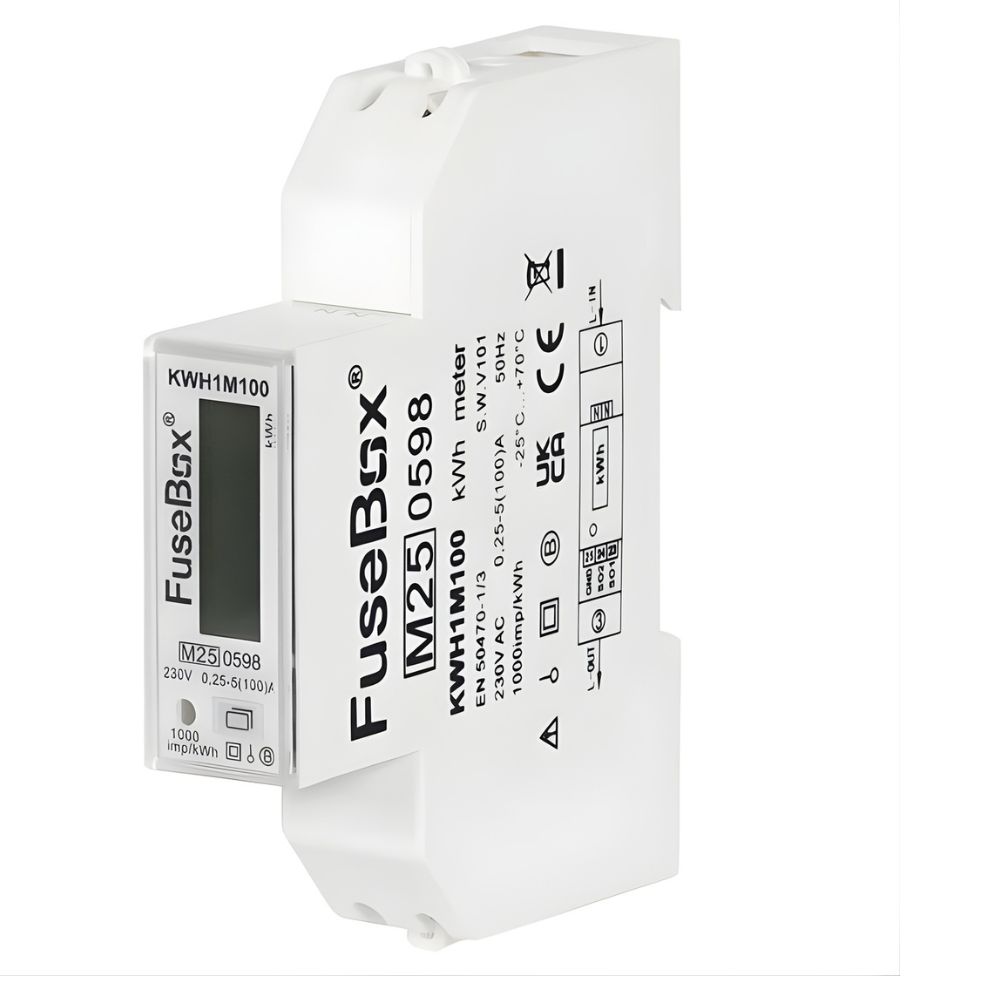

FuseBox KWH1M100 100A MID kWh Meter
DIN Rail Energy Meter for Accurate Monitoring
The FuseBox KWH1M100 100A MID kWh Meter is a compact, single phase energy meter designed for accurate measurement of electrical consumption in domestic, commercial and industrial installations. With MID certification and bi-directional capability, it is ideal for monitoring both imported and exported energy in modern systems.
This 1-module DIN rail mounted meter features a clear backlit LCD display and simple touch button navigation for viewing key electrical parameters. It measures active energy (kWh), reactive energy (kVArh), voltage, current, power, frequency and power factor, giving full visibility of system performance.
Designed for reliability and compliance, the FuseBox KWH1M100 is suitable for use in consumer units and distribution boards, particularly in solar PV and energy management applications.
Key Features
- 100A single phase MID certified kWh meter
- Bi-directional measurement (import & export)
- Compact 18mm (1 module) DIN rail design
- Backlit LCD display for clear readings
- Touch button interface for easy navigation
- Measures kWh, kVArh, voltage, current, power and frequency
- Pulse output: 1000 imp/kWh
- Ideal for solar PV and energy monitoring
Technical Specifications
- Brand: FuseBox
- Part Number: KWH1M100
- Maximum Rated Current: 100A
- Voltage: 230V AC
- Frequency: 50Hz
- Mounting: 35mm DIN rail
- Module Width: 18mm
- Maximum Cable Size: 25mm²
- Terminal Torque: 2.5Nm
- Impulse Constant: 1000 imp/kWh
- Standards: EN 50470-1 / EN 50470-3
