Smarter 18th Edition Compliant RCBO Consumer Unit – With FuseBox F3023MZ SPD Upgrade
FuseBox F3023MZ

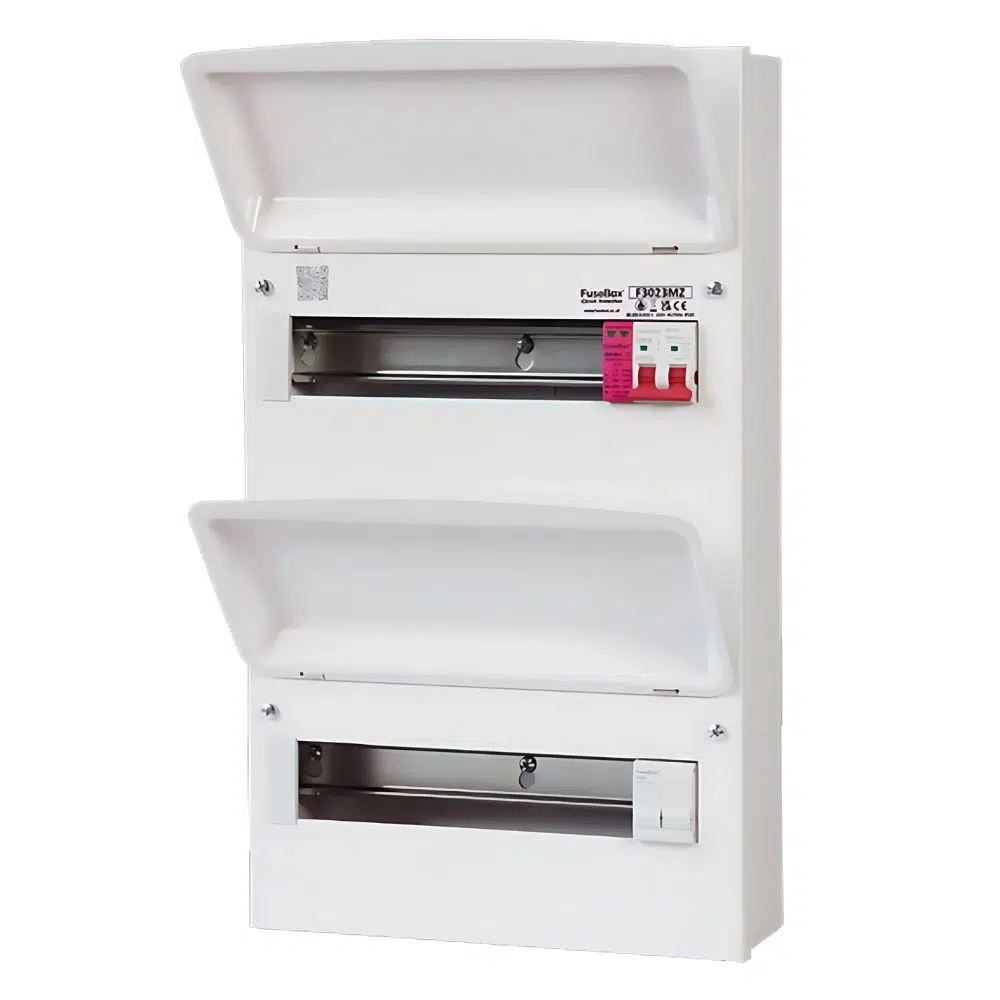

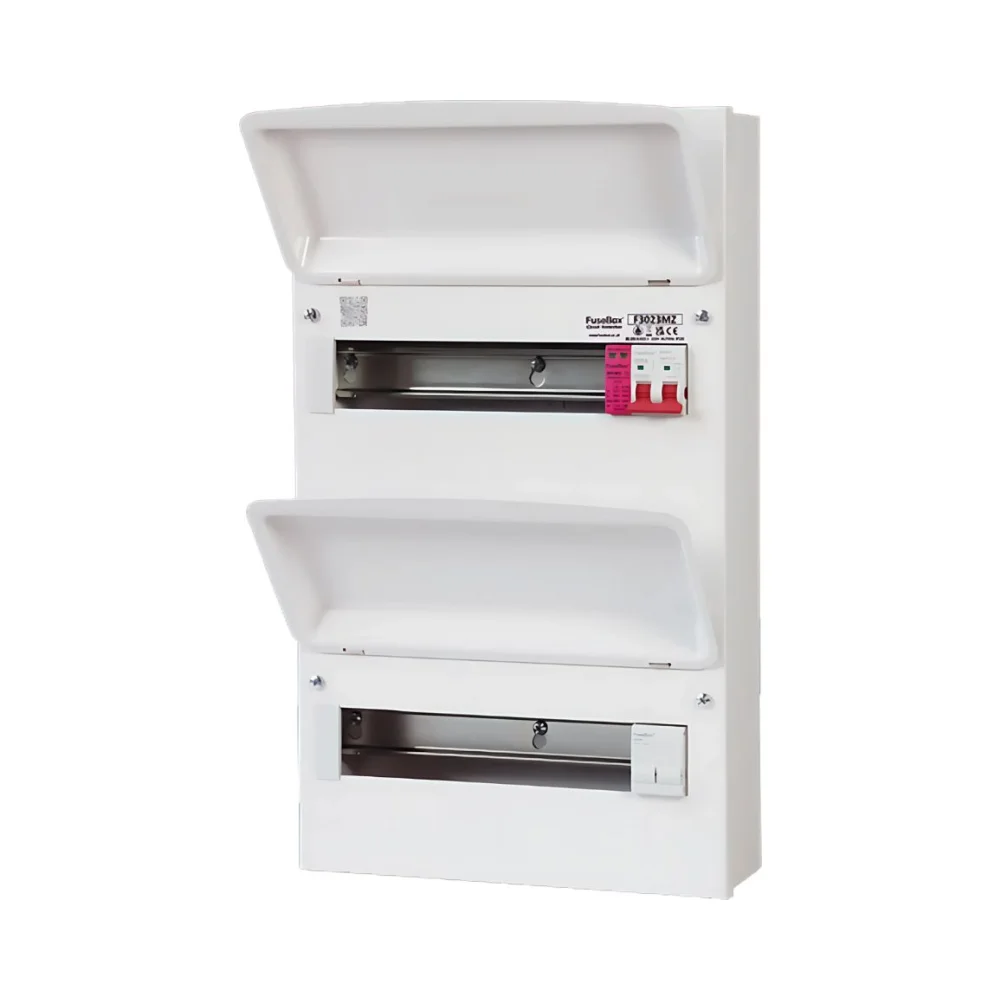

The FuseBox F3023MZ RCBO Consumer Unit With SPD is part of the enhanced FuseBox F3 range. It offers 23 usable ways in a compact double row (double bank) layout, perfect for larger residential installations. By spreading the circuits across two horizontal DIN rails, this board maintains a tidy, accessible layout while keeping installation height more manageable.
The unit includes a 100A double pole main switch, a Type 2 SPD with a pink surge protection enclosure, and a robust fully metal casing. The SPD connects directly to the busbar—no separate MCB required—freeing up valuable DIN space.
🔍 Key Features – FuseBox F3023MZ RCBO Consumer Unit With SPD
- 23 usable outgoing ways
- Double row design for better layout and access
- SPD connects directly to the busbar – no MCB needed
- 100A double pole main switch included
- Metal enclosure with RAL 9001 powder-coated finish
- DIN rail-mounted tail clamp for secure cable entry
- Reinforced grommet strip included for added protection
- Green and red status indicators on SPD module
- BS EN 61439-3 and BS 7671 (18th Edition) compliant
📏 Technical Overview – F3 Design
- Voltage: 230V | Frequency: 50–60Hz
- DIN rail: 35mm width
- Knockouts: 20–40mm – top, bottom, sides, rear
- Earth/Neutral Bars: Clearly labelled and protected
🆕 What’s New in the FuseBox F3 Consumer Unit Range?
The most significant upgrade in the FuseBox F3 range is the new single module pink SPD that connects directly to the busbar — meaning no separate MCB is required. This not only saves a usable outgoing way, but also makes wiring faster and neater.
Other improvements include:
- DIN Rail-Mounted Tail Clamp – The tail clamp is now fixed directly onto the DIN rail. This offers better cable retention and makes fitting quicker and more secure.
- Reinforced Grommet Strip – Each unit includes a tougher, more durable grommet strip to protect cables at the point of entry. It’s designed to handle demanding installations without tearing or shifting.
These enhancements make FuseBox F3 boards even more installer-friendly, while staying fully compliant with the 18th Edition Wiring Regulations.
⚡ FuseBox SPD Advantage – Save Space in Your RCBO Consumer Unit
This FuseBox F3 range unit uses a pink SPD enclosure that connects directly to the busbar. No MCB is needed, meaning faster installs and one extra usable way. Visual status indicators show green (safe) and red (fault).
🪛 Use the Right Torque – Stay 18th Edition Compliant
Use a torque screwdriver to install. The included manual shows exact torque values for all terminals, keeping your work safe and fully regulation-compliant.
🔗 Explore Other FuseBox SPD Consumer Units
Need even more room? The FuseBox F3047MZ 47 Way Triple Row Unit or FuseBox F3031MZ 31 Way Double Row SPD Board could be ideal.
📝 Summary – FuseBox F3023MZ RCBO Consumer Unit With SPD
The FuseBox F3023MZ is a high-spec 23-way double row F3 RCBO board, fitted with a pink surge protection enclosure and a direct-to-busbar SPD. Compact yet powerful, it’s fully 18th Edition compliant and ideal for large residential installations.
