63A Garage Consumer Unit with MCBs & Type 2 SPD
FuseBox F300GRAZ

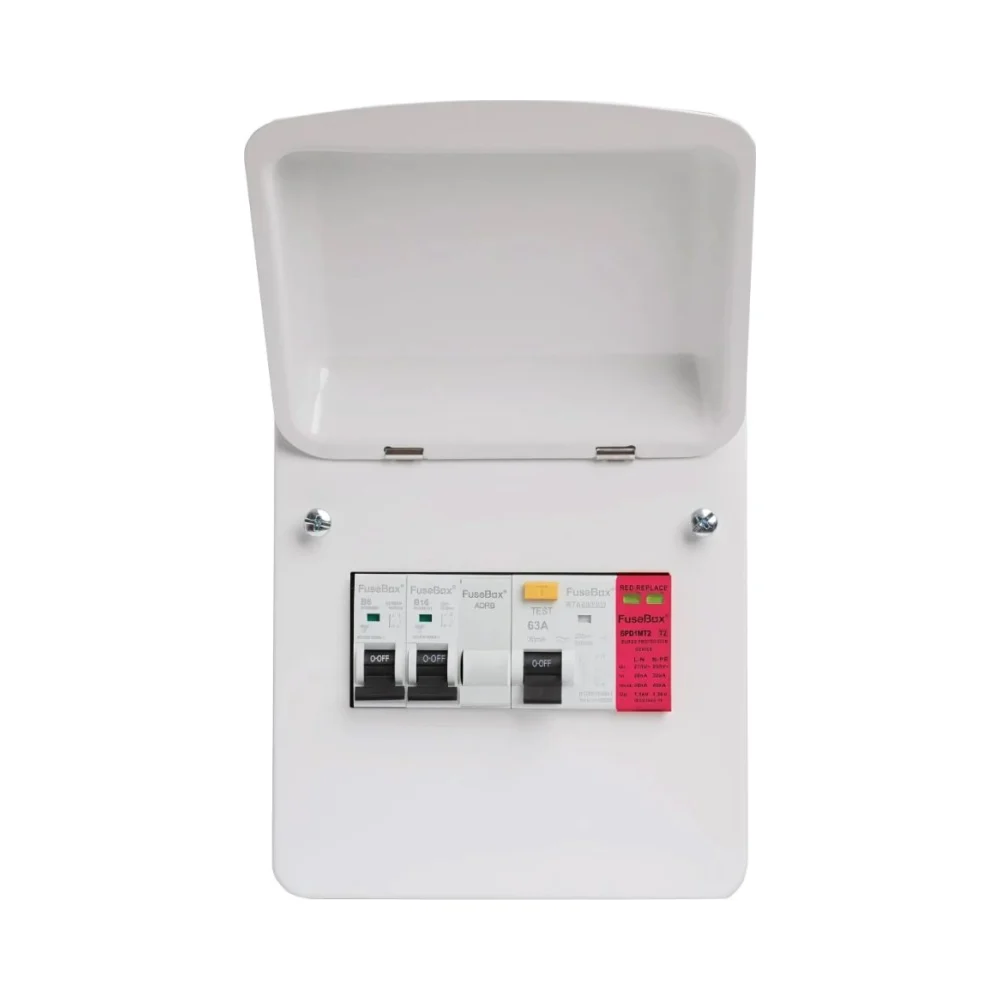

The FuseBox F300GRAZ Garage Consumer Unit offers a complete circuit protection solution for garages, sheds, and outbuildings. This compact unit features a 63A 30mA Type A RCD incomer, pre-fitted B6 and B16 MCBs, and an integrated Type 2 SPD (SPD1MT2) that connects directly to the busbar for reliable surge protection.
Housed in a non-combustible steel enclosure with a RAL 9003 white powder-coated finish, this unit is designed for easy installation and long-term safety. It comes with a DIN rail, neutral and earth terminals, and round knockouts (20mm and 32mm) on the top and bottom for flexible cabling.
This consumer unit complies with BS EN 61439-3 and the 18th Edition AMD3 wiring regulations. Additional features include a padlockable front cover for added security, SPD status indicator, clear labelling, and pre-wired connections for fast setup.
✅ Key Features – FuseBox F300GRAZ Garage Consumer with SPD
- 63A Type A RCD incomer with B6 & B16 MCBs (pre-fitted)
- Integrated Type 2 SPD with surge protection flag indicator
- Pre-wired with tail clamp for easy connection
- Earth and neutral terminal bars included
- Padlockable front cover for extra security
- DIN rail and round knockouts (20mm & 32mm) included
- IP2XC internal protection rating
- Complies with BS EN 61439-3 and 18th Edition regulations
- Finished in RAL 9003 white powder coat
- Ideal for garages, workshops, outbuildings, and sheds
Technical Specifications:
- Main RCD: 63A Type A, 30mA
- MCBs Included: B6 and B16
- SPD: Type 2 SPD (SPD1MT2)
- Enclosure Material: Non-combustible steel
- Knockouts: 20mm & 32mm (top & bottom)
- DIN Rail: Included
- IP Rating: IP2XC
- Dimensions: 263mm (H) x 162mm (W) x 116mm (D)
- Standards: BS EN 61439-3, 18th Edition AMD3
- Application: Garage, shed, workshop, outbuildings
