Description

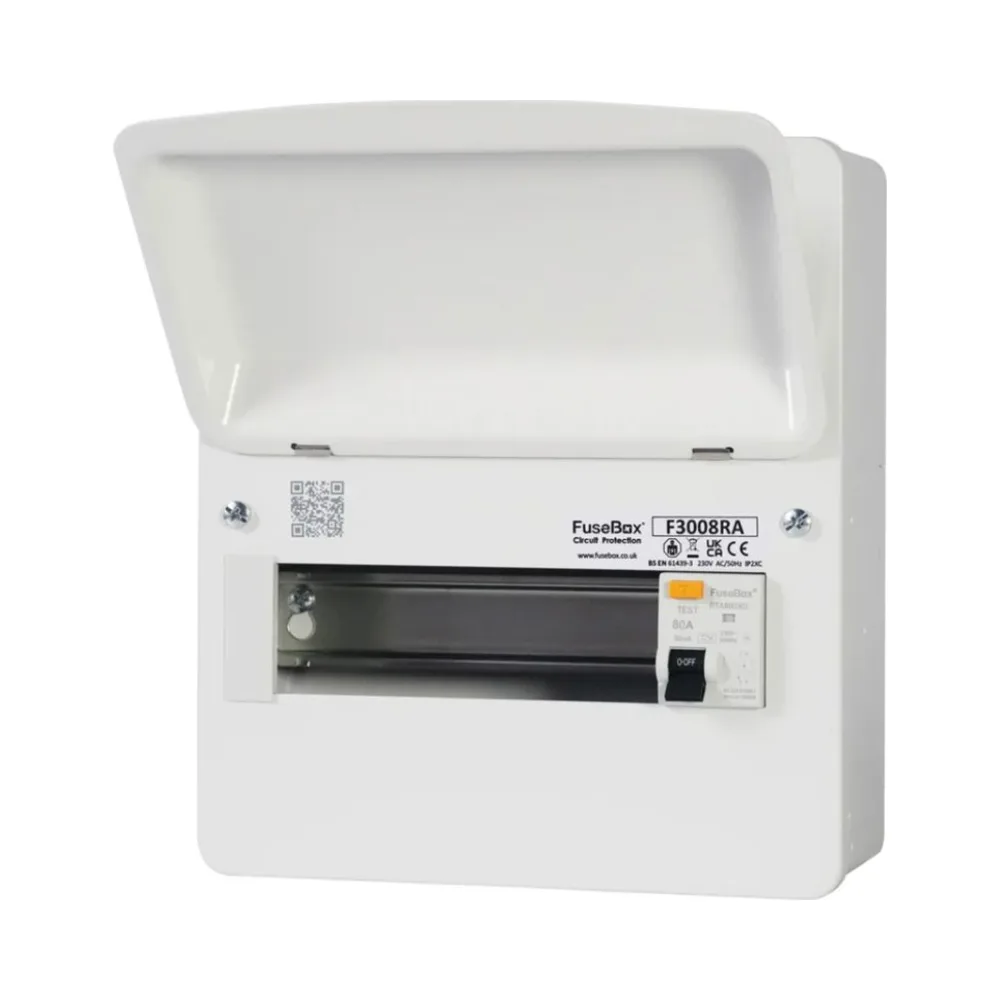

8 Way 80A Type A RCD Consumer Unit
FuseBox F3008RA
The FuseBox F3008RA RCD Consumer Unit is an excellent, cost-effective option for domestic and light commercial installations. Known for its installer-friendly design, this unit offers high-quality protection and easy installation, making it a popular choice among electricians.
At Electrical4Less, we supply FuseBox products trusted across the industry for their reliable performance and compliance with current electrical regulations.
✅ Key Features – FuseBox F3008RA RCD Consumer Unit
- Fitted with 80A Type A RCD for robust circuit protection
- Complies fully with the 18th Edition wiring regulations
- Earth and neutral terminal bars conveniently positioned at the top
- Removable and raised DIN rail for easier device fitting
- Extra internal height to accommodate standard and mini RCBOs
- Supplied with full circuit identification label pack
- Includes upgraded grommet strip for enhanced cable protection
- Captive screws on front cover for faster, safer installation
- Stylish RAL 9001 powder-coated arctic white finish
- Tail clamp compatible (sold separately – ACCF)
Technical Specifications:
- Main RCD Rating: 80A, Type A
- Usable Ways: 8
- Enclosure Material: 1mm Electro-galvanised steel (zinc-coated)
- Knockouts: 20mm & 32mm (top and bottom), 40mm (sides)
- Busbar Shroud: Supplied
- Ingress Protection: IP20XC
- Standards Compliance: BS EN 61439-3
- Dimensions:
- Height: 259mm
- Width: 234mm
- Depth: 116mm
This unit is engineered for efficiency and ease of installation, making it ideal for electricians seeking a dependable and compliant consumer unit.
