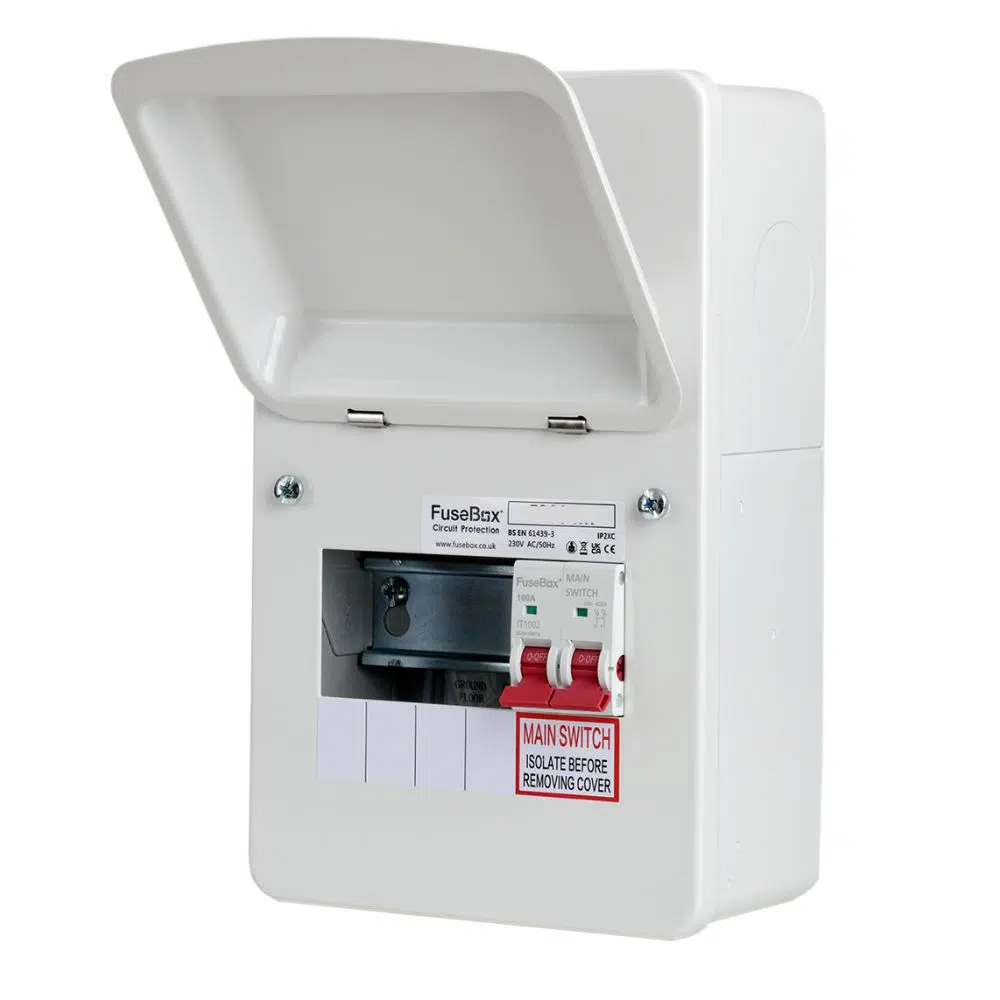

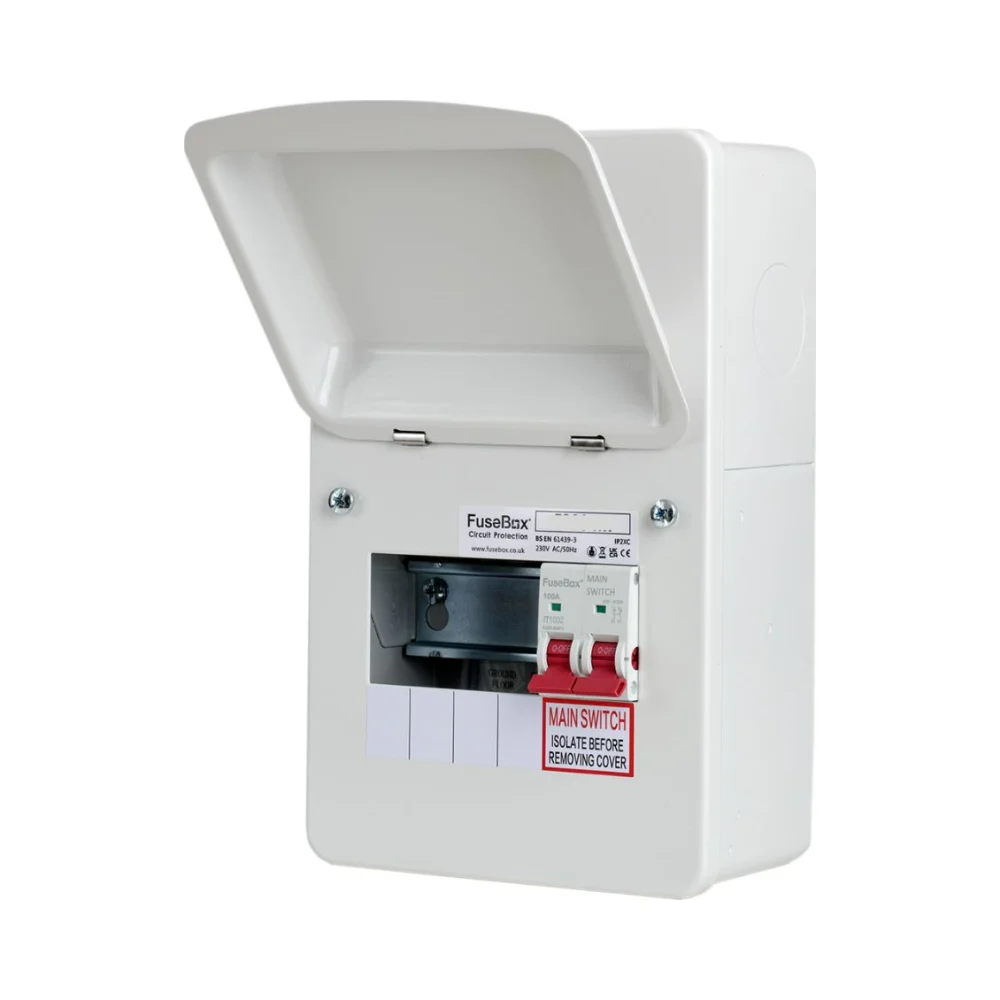

FuseBox F3004M 4 Way RCBO Consumer Unit

Description

Reliable, Compact 18th Edition-Compliant RCBO Consumer Unit – Without SPD

FuseBox F3004M

The FuseBox F3004M 4 Way RCBO Consumer Unit is part of the no-SPD version of the FuseBox F3 range. Designed for smaller installs, this 4-way board is ideal for flats, outbuildings, or basic sub-mains. It features a 100A double pole main switch, a fully enclosed metal housing, and FuseBox’s newest F3 safety upgrades.

While it doesn’t include an SPD, the F3004M remains fully BS7671 18th Edition compliant. It’s also equipped with the latest DIN rail-mounted tail clamp and a reinforced grommet strip—offering both protection and ease of install in compact spaces.

🔍 Key Features – FuseBox F3004M 4 Way RCBO Consumer Unit

• 4 usable outgoing ways
• 100A double pole main switch included
• No SPD – ideal for basic installs or where surge protection is not needed
• Durable metal case (RAL 9001 finish)
• DIN rail-mounted tail clamp included
• Reinforced grommet strip for cable protection
• BS7671 18th Edition Wiring Regulation compliant

📏 Technical Overview – F3 Design

• Voltage: 230V AC | Frequency: 50–60Hz
• Standard 35mm DIN rail
• Knockouts: Top, bottom, sides, rear (20mm to 40mm)
• Fully labelled neutral and earth bars
• Hinged metal front cover

🆕 What’s New in the FuseBox F3 Range?

• DIN Rail Tail Clamp – Securely fixed for easier and safer installation
• Reinforced Grommet Strip – Offers better durability and cable protection

🪛 Install With Confidence – Use Torque Tools

Install using a torque-calibrated screwdriver. The included manual lists all torque values to ensure safe, BS7671-compliant terminations.

🔗 FuseBox F3004M – 4 Way

Looking for more flexible layout options?
Check out the FuseBox F3008M 8 Way or go bigger with the FuseBox F3012M 12 Way RCBO-ready consumer units.

📝 Summary – FuseBox F3004M 4 Way RCBO Consumer Unit

The FuseBox F3004M offers a compact, 4-way layout without SPD. It’s ideal for smaller circuits or extensions, with a 100A isolator, full metal case, and F3 installation upgrades included as standard.
