Description

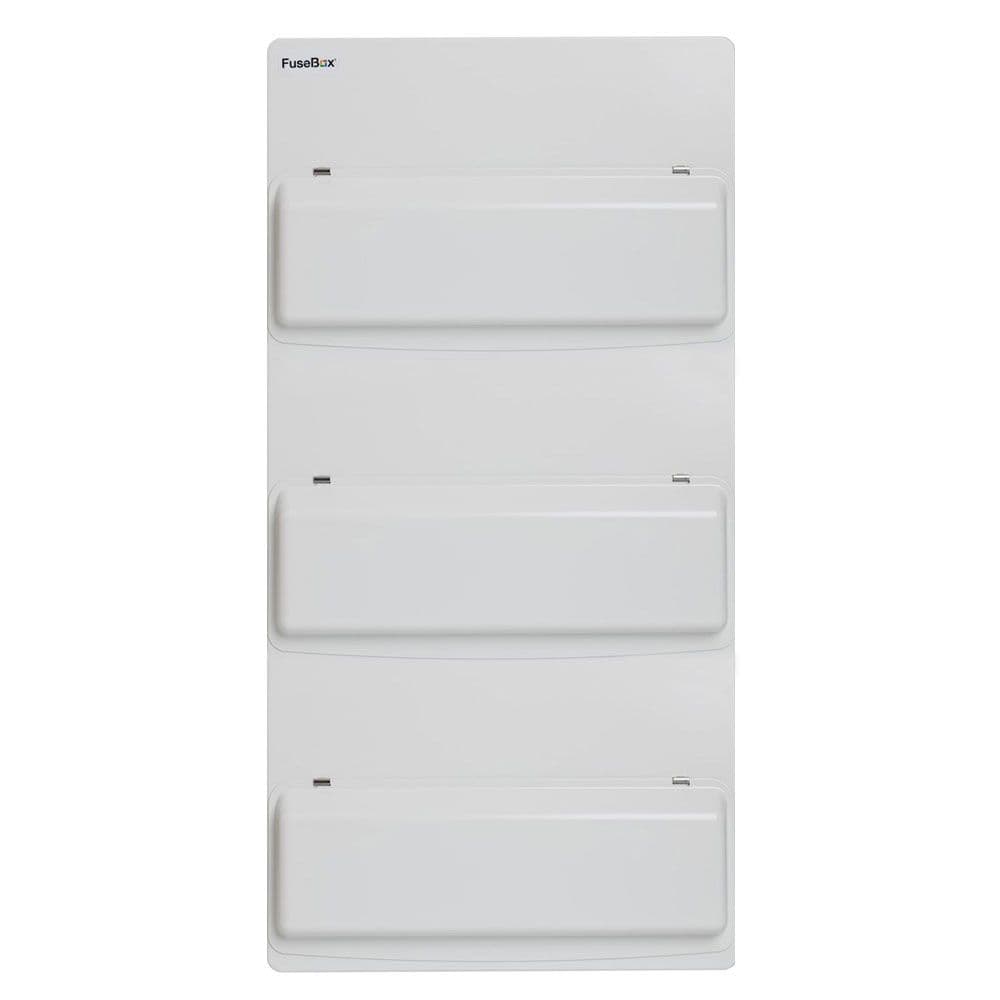

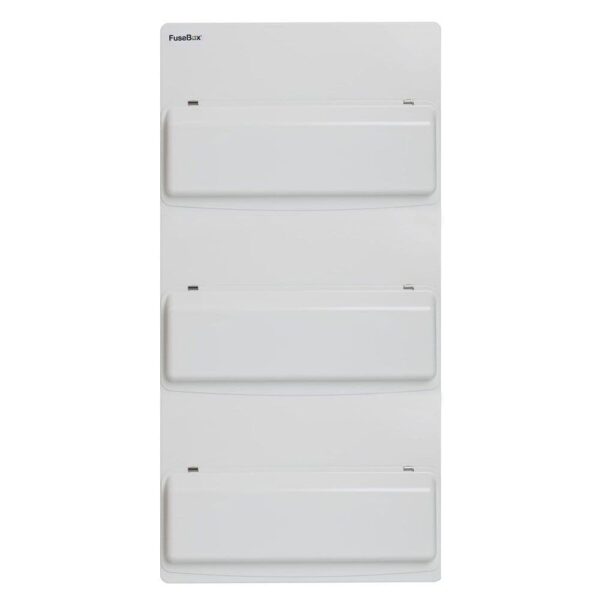

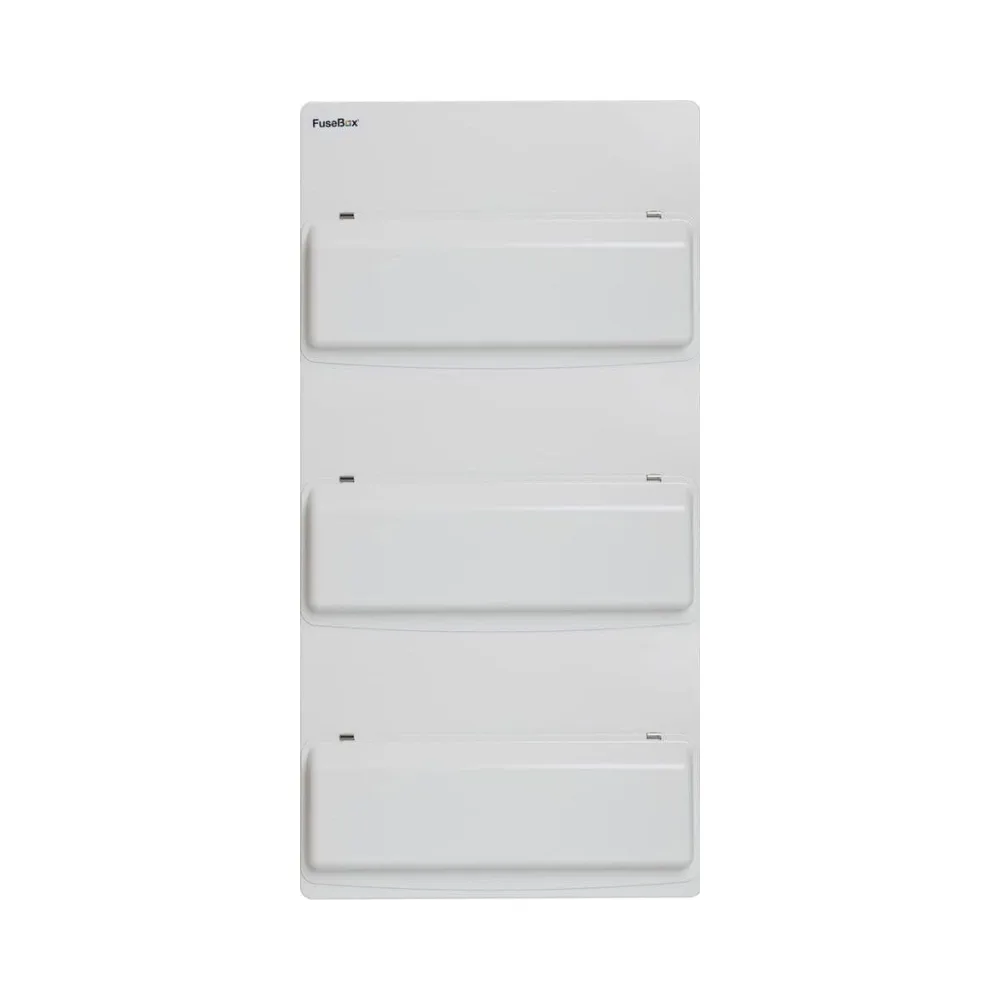

48 Module Metal Enclosure with DIN Rail & Knockouts
FuseBox F2048E
The FuseBox F2048E is a 48-module metal enclosure designed for large-scale residential, commercial, and light industrial installations. It provides durable housing for circuit protection devices, supported by robust construction, clear labelling, and flexible cable entry options.
This enclosure complies with BS EN 61439-3 and is engineered for clean layouts, easy wiring, and secure device mounting. It features 35mm DIN rail mounting, multiple 20mm–32mm knockouts, and comes complete with busbars, terminal bars, and a comprehensive accessory pack.
Key Features – 48 Module Distribution Board Enclosure
- 48 module capacity – Ideal for full board builds or sub-mains
- Standard 35mm DIN rail for secure component mounting
- 3x busbars and 3x neutral cables included
- Top & bottom 25mm / 32mm knockouts
- Side knockouts from 20mm–32mm
- Supplied with earth & neutral terminal bars
- Includes tail clamp, grommet strip, and circuit label pack
- Built to BS EN 61439-3 standards
- Rated voltage: 230V, max terminal bar capacity: 16mm²
- Terminal torque: 2.0Nm
- Finished in smooth powder-coated white (RAL 9001)
Dimensions – 48 Module Metal Enclosure
- Height: 762 mm
- Width: 378 mm
- Depth: 113 mm
Ideal For:
- Large residential consumer units
- Sub-distribution panels in commercial environments
- Full RCBO or surge-protection layouts
- Clean, professional enclosure builds with advanced component density
