Description

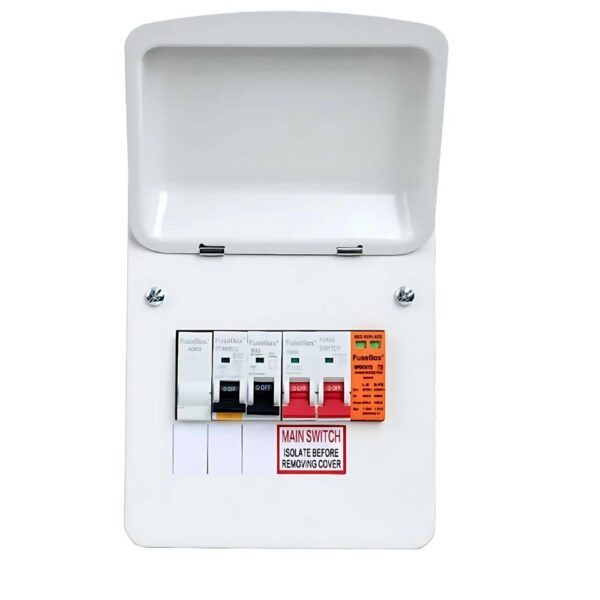

Premium EV Charging Consumer Unit – 100A Main Switch + 40A RCBO + SPD
FuseBox EV40AXBD – Advanced EV Consumer Unit with RCBO and SPD for Safe Charger Connections
The FuseBox EV40AXBD is a ready-to-install EV consumer unit designed for dedicated electric vehicle charge points. It includes a 100A main switch, a 40A Type A bi-directional RCBO (30mA), and a factory-fitted Type 2 SPD—delivering exceptional protection for single-phase EV circuits.
With a compact 6-module metal enclosure and Curve B RCBO, this board meets the latest 18th Edition wiring regulations and is trusted by EV installers across the UK.
🔧 Key Features – FuseBox EV40AXBD EV Charging Distribution Board
- 100A Double Pole Main Switch
- 40A 30mA Bi-Directional Type A RCBO (Curve B)
- Built-in Type 2 SPD (Surge Protection Device)
- Suitable for EV charger installations (AC up to 40A)
- IP2XC enclosure (W259 x H162 x D113mm)
- Removable DIN rail and top-mounted terminal bars
- High-quality powder-coated steel construction
- Designed for clean, fast, and safe connections
🚙 What Makes This Unit Ideal for EV Charging?
The EV40AXBD includes a bi-directional RCBO—essential for future-ready EV charging that may involve power export (e.g., solar PV or V2G setups). Its pre-fitted SPD ensures compliance with surge protection rules under BS 7671, helping to safeguard EVSE equipment.
This kit does not include a tail clamp and does not support tail clamp retrofitting.
🔁 The Benefits of Bi-Directional RCBOs
Bi-directional RCBOs offer residual current protection in both current flow directions. This is critical in EV and renewable energy setups where energy may be fed back to the grid or redistributed internally. The FuseBox 40A bi-directional RCBO is ideal for such circuits, with 30mA sensitivity and Curve B fault protection.
