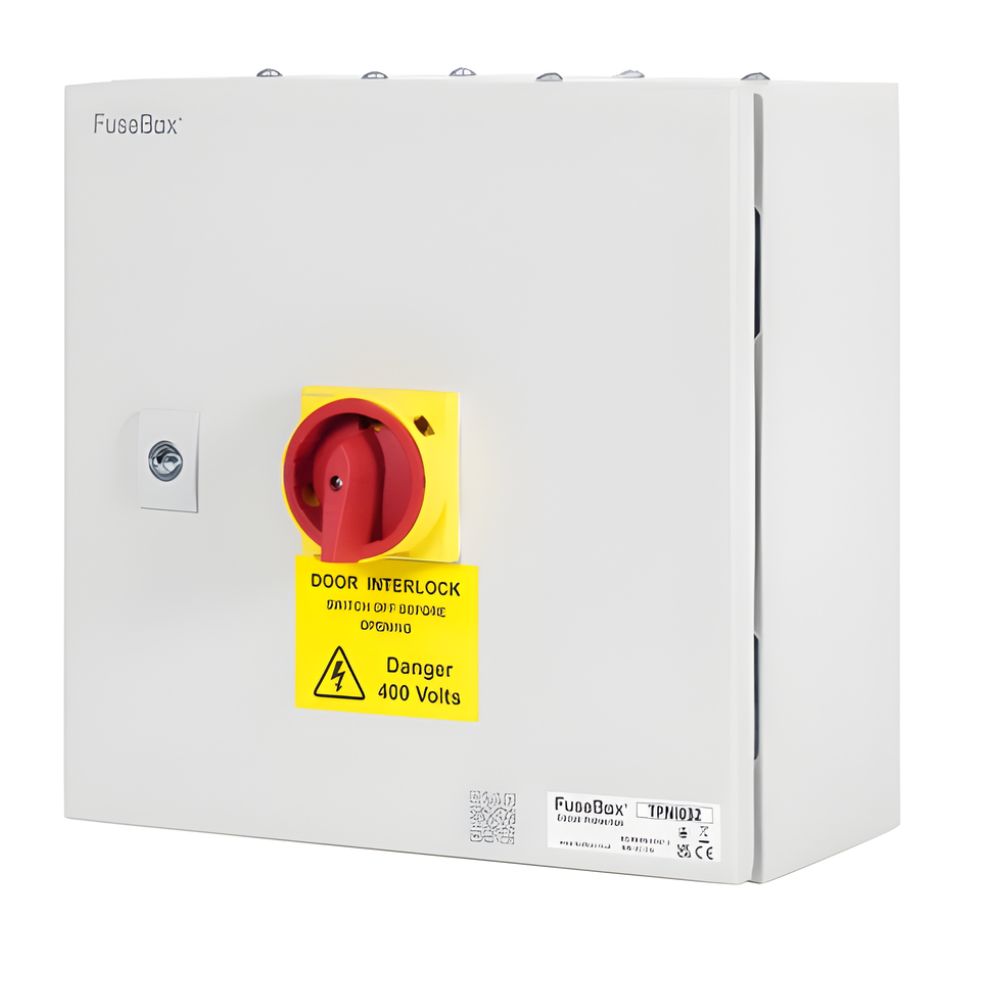

FuseBox 80A 3P+N IP65 Metal Isolator Switch
The FuseBox 80A 3P+N IP65 Metal Isolator Switch is engineered for dependable three-phase isolation in commercial and industrial installations. Housed within a durable 1.2mm steel enclosure finished in RAL7035, it offers long-term reliability and strong environmental protection.
Rated AC-23A and manufactured in accordance with IEC BS EN 60947-3, this isolator is suitable for switching motor loads and mixed inductive applications. The IP65 protection rating ensures resistance against dust and water ingress, making it ideal for internal and external installations.
Key Features
- 80A 3 Phase + Neutral (3P+N)
- AC-23A utilisation category
- IP65 rated steel enclosure
- 690V rated operational voltage
- 800V rated insulation voltage
- 8kV impulse withstand rating
- Mechanical door interlock (ON position only)
- Padlockable in OFF position (up to 3 padlocks)
- Removable gland plates top and bottom
- Operating temperature: -25°C to +55°C
Technical Specifications
- Current Rating: 80A
- Conditional Short Circuit Current (415V AC): 15kA
- Short Time Withstand (1s): 1500A
- Terminal Tightening Torque: 4Nm
- Cable Capacity: 2.5–35mm²
- Dimensions (H x W x D): 300 x 300 x 150mm
- Protection Rating: IP65
- Standard: IEC BS EN 60947-3
Applications
Suitable for industrial machinery isolation, three-phase distribution systems, plant rooms and commercial control installations where secure isolation and environmental sealing are essential.
Installation & Compliance
This 3P+N isolator must be installed and tested by a qualified electrician in accordance with current IET Wiring Regulations (BS 7671).
