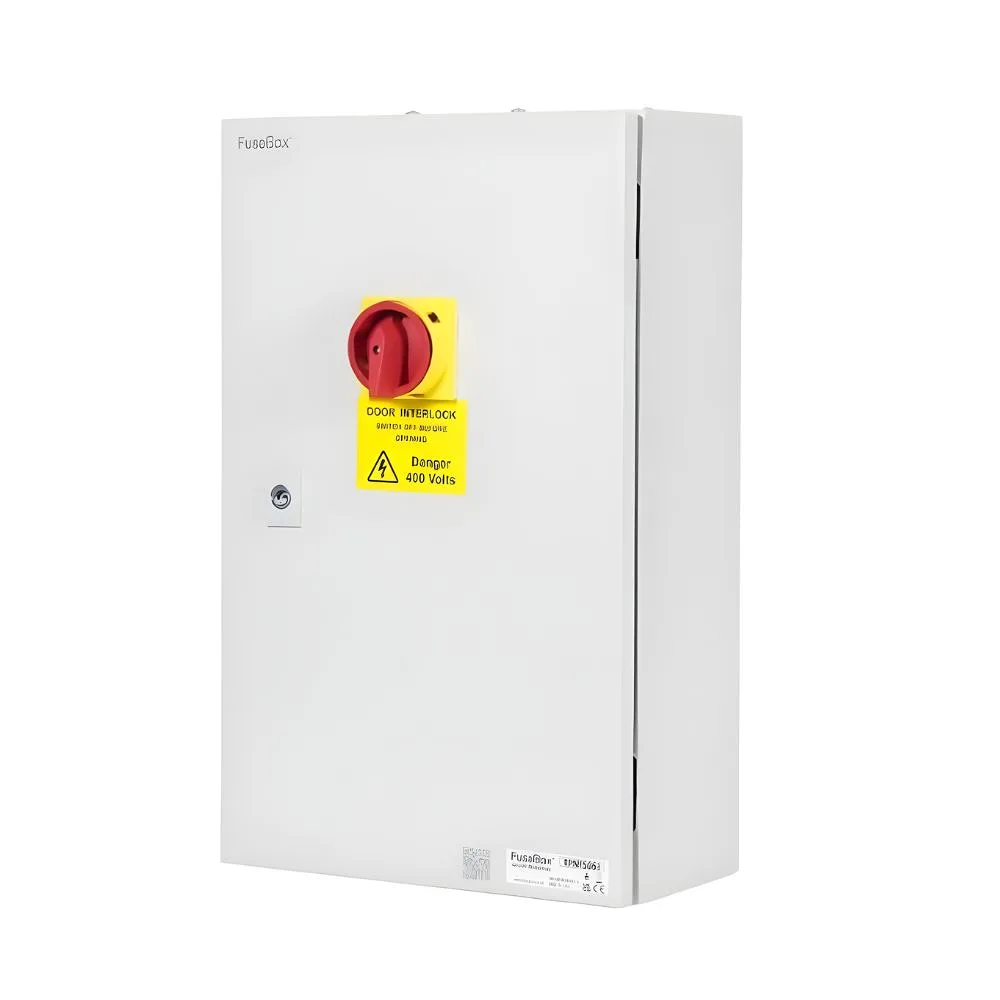

FuseBox 63A 3P+N IP65 Metal Fused Switch
The FuseBox 63A 3P+N IP65 Metal Fused Switch combines dependable three-phase isolation with integrated fuse protection for commercial and industrial applications. Designed for higher current loads, it provides both manual isolation and automatic overload protection in one robust assembly.
Rated AC-23A and manufactured in accordance with IEC BS EN 60947-3, this fused switch is suitable for switching motor loads and mixed inductive circuits. The IP65 rated enclosure protects against dust and water ingress, while the internal fuse holders ensure effective circuit protection.
Key Features
- 63A 3 Phase + Neutral (3P+N)
- AC-23A utilisation category
- Integrated 22x58mm gG fuse holders
- IP65 steel enclosure (fuse holder IP20)
- 690V rated operational voltage
- 800V rated insulation voltage (enclosure)
- 8kV impulse withstand
- Mechanical door interlock (ON position only)
- Padlockable in OFF position (max 8mm shackle)
- Removable gland plates top and bottom
- Operating temperature: -25°C to +55°C
Technical Specifications
- Current Rating: 63A
- Fuse Type: 22x58mm gG (100A max fuse rating)
- Conditional Short Circuit Current (415V AC): 15kA
- Short Time Withstand (1s): 1500A
- Terminal Tightening Torque: 4Nm
- Cable Capacity: 2.5–35mm²
- Dimensions (H x W x D): 500 x 300 x 150mm
- Material: 1.2mm steel
- Finish: RAL7035
Applications
Ideal for industrial machinery, plant rooms, commercial distribution systems and three-phase installations where secure isolation and reliable fuse protection are required.
Installation & Compliance
This 3P+N fused switch must be installed and tested by a qualified electrician in accordance with current IET Wiring Regulations (BS 7671).
