Description

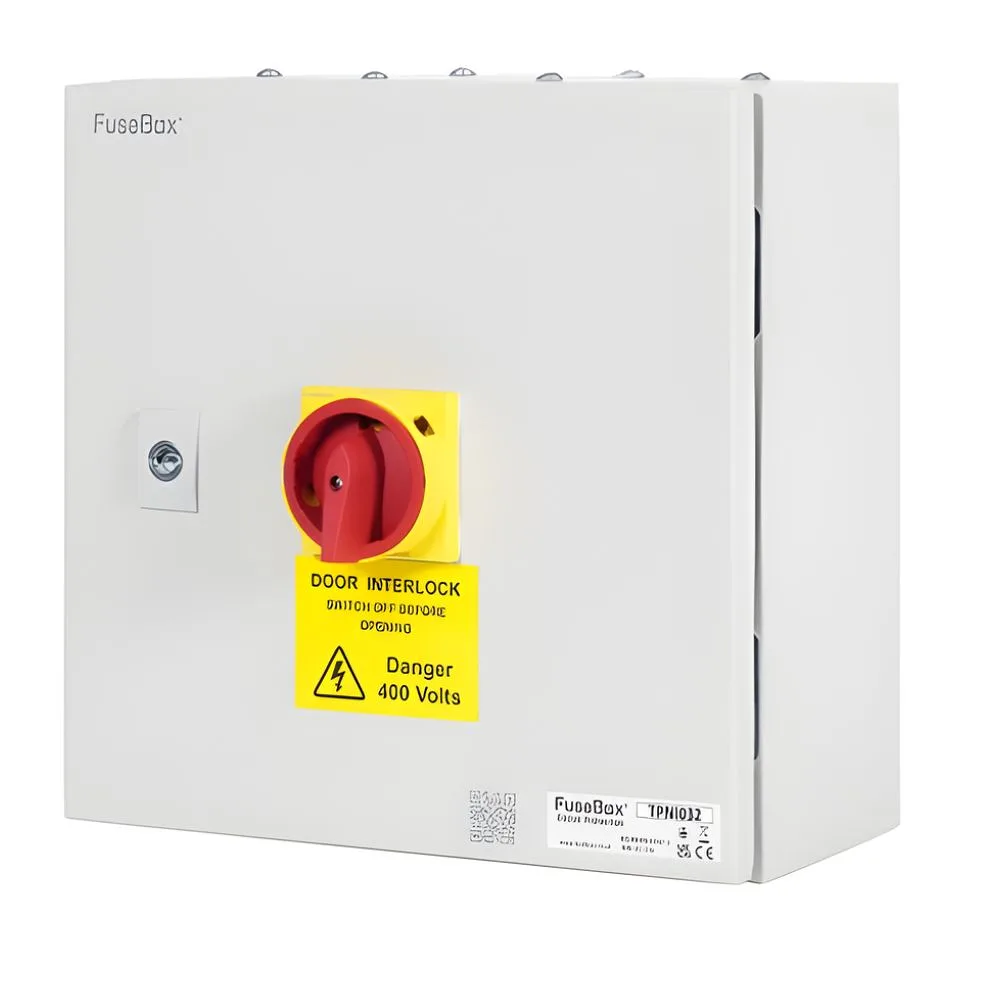

FuseBox 32A 3P+N IP65 Metal Isolator Switch
The FuseBox 32A 3P+N IP65 Metal Isolator Switch is a robust three-phase and neutral rotary isolator designed for safe and dependable circuit isolation in commercial and industrial installations. Built within a durable 1.2mm steel enclosure finished in RAL7035, it delivers reliable performance in demanding environments.
Rated to AC-23A and compliant with IEC BS EN 60947-3, this isolator is engineered for switching motor loads and mixed resistive/inductive circuits. The IP65 protection rating ensures resistance against dust and water ingress, making it suitable for indoor and outdoor applications.
Key Features
- 32A 3 Phase + Neutral (3P+N)
- AC-23A utilisation category
- IP65 rated enclosure
- 690V rated operational voltage
- 800V rated insulation voltage
- 8kV impulse withstand
- 1.2mm steel enclosure – RAL7035 finish
- Mechanical door interlock (ON position only)
- Padlockable in OFF position (up to 3 padlocks)
- Removable gland plates top and bottom
- Operating temperature: -25°C to +55°C
Technical Specifications
- Current Rating: 32A
- Conditional Short Circuit Current (415V AC): 10kA
- Short Time Withstand (1s): 1260A
- Terminal Tightening Torque: 1.5Nm
- Cable Capacity: 1.5–16mm²
- Dimensions (H x W x D): 300 x 300 x 150mm
- Protection Rating: IP65
- Standard: IEC BS EN 60947-3
Applications
Ideal for machinery isolation, distribution systems, plant equipment and commercial three-phase installations requiring safe and secure isolation with environmental protection.
Installation & Compliance
This 3P+N isolator must be installed and tested by a qualified electrician in accordance with current IET Wiring Regulations (BS 7671).
