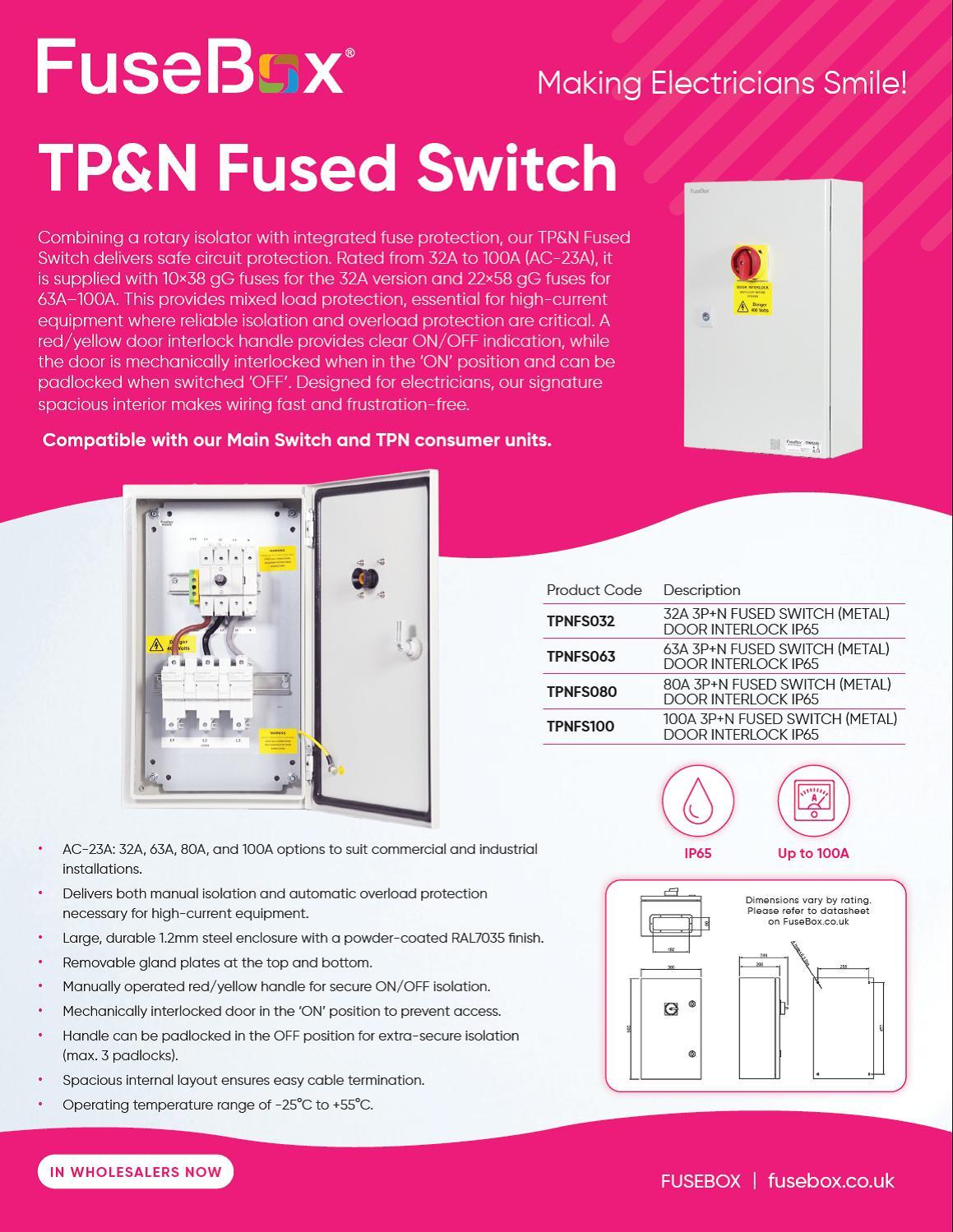

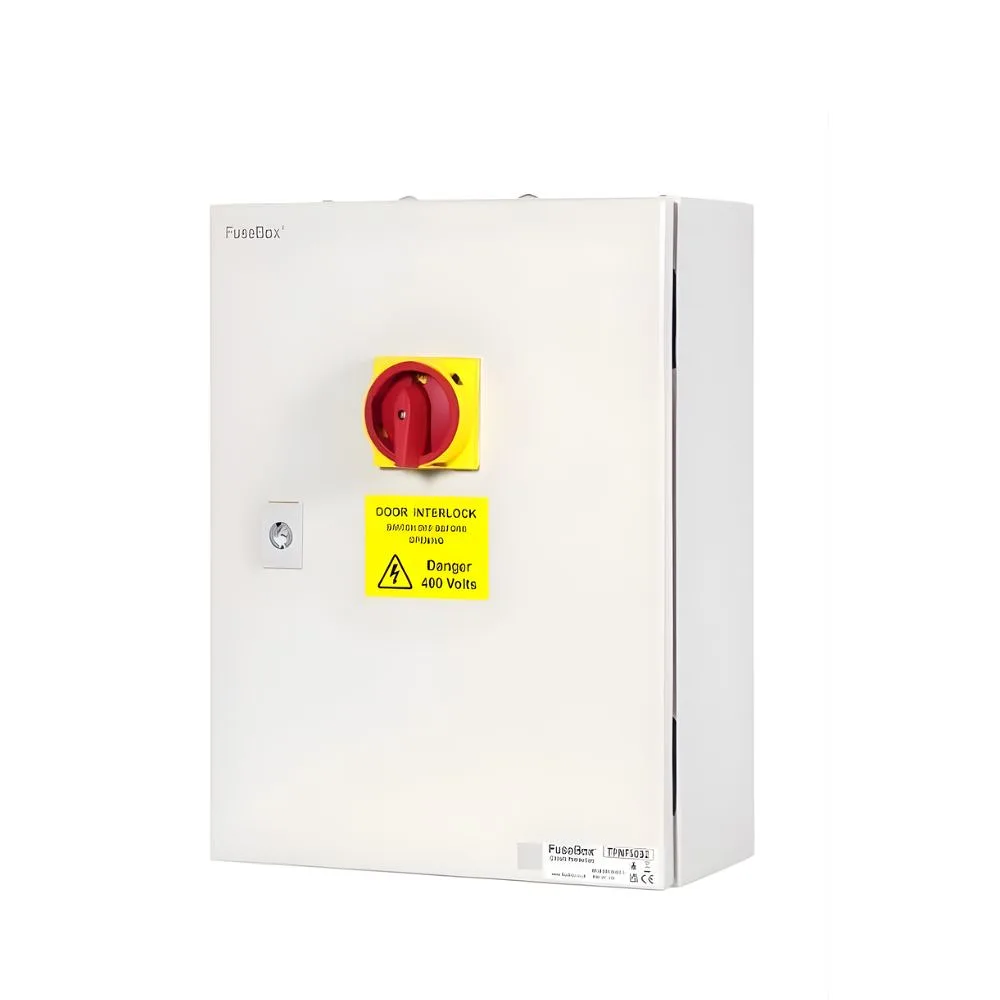

FuseBox 32A 3P+N IP65 Metal Fused Switch
The FuseBox 32A 3P+N IP65 Metal Fused Switch combines dependable three-phase isolation with integrated fuse protection for commercial and industrial installations. Designed for high-current equipment, it delivers both manual isolation and automatic overload protection within a durable steel enclosure.
Rated AC-23A and compliant with IEC BS EN 60947-3, this fused switch is suitable for switching motor loads and mixed inductive circuits. The IP65 rated metal enclosure protects against dust and water ingress, while the internal fuse holders provide reliable circuit protection.
Key Features
- 32A 3 Phase + Neutral (3P+N)
- AC-23A utilisation category
- Integrated 10x38mm gG fuse holders
- IP65 rated steel enclosure (fuse holder IP20)
- 690V rated operational voltage
- 800V rated insulation voltage (enclosure)
- 8kV impulse withstand
- Mechanical door interlock (ON position only)
- Padlockable in OFF position (max 8mm shackle)
- Removable gland plates top and bottom
- Operating temperature: -25°C to +55°C
Technical Specifications
- Current Rating: 32A
- Fuse Type: 10x38mm gG
- Conditional Short Circuit Current (415V AC): 10kA
- Short Time Withstand (1s): 1260A
- Terminal Tightening Torque: 1.5Nm
- Cable Capacity: 1.5–16mm²
- Dimensions (H x W x D): 400 x 300 x 150mm
- Material: 1.2mm steel
- Finish: RAL7035
Applications
Ideal for machinery isolation, plant equipment, three-phase distribution systems and commercial installations where combined isolation and overload protection are essential.
Installation & Compliance
This 3P+N fused switch must be installed and tested by a qualified electrician in accordance with current IET Wiring Regulations (BS 7671).
