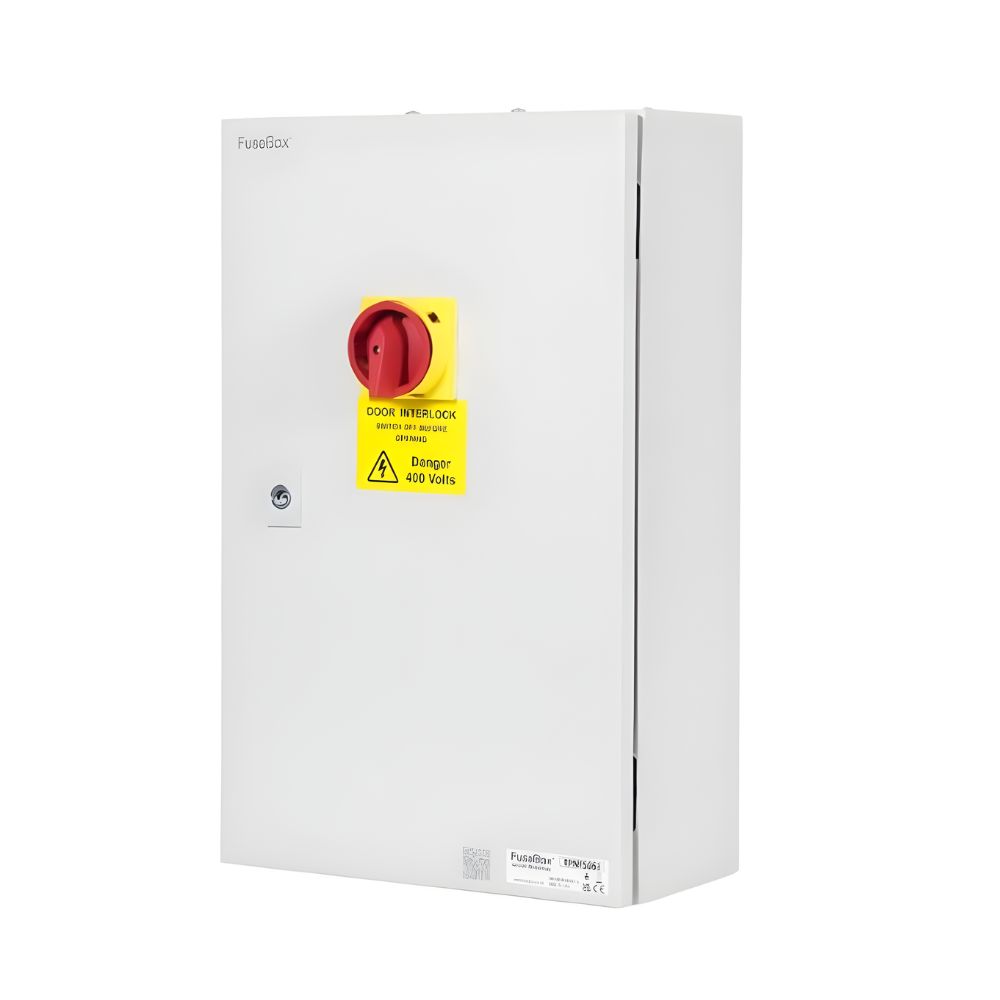

FuseBox 100A 3P+N IP65 Metal Fused Switch
The FuseBox 100A 3P+N IP65 Metal Fused Switch delivers high-capacity three-phase isolation with integrated fuse protection for commercial and industrial installations. Designed for heavy load applications, it combines secure manual isolation with dependable overload and short circuit protection.
Manufactured in accordance with IEC BS EN 60947-3 and rated AC-23A, this fused switch is suitable for switching motor loads and mixed inductive circuits. The IP65 rated steel enclosure ensures protection against dust and water ingress, making it suitable for indoor and outdoor environments.
Key Features
- 100A 3 Phase + Neutral (3P+N)
- AC-23A utilisation category
- Integrated 22x58mm gG fuse holders (100A max fuse rating)
- IP65 steel enclosure (fuse holder IP20)
- 690V rated operational voltage
- 800V rated insulation voltage (enclosure)
- 8kV impulse withstand
- Mechanical door interlock (ON position only)
- Padlockable in OFF position (max 8mm shackle)
- Removable gland plates top and bottom
- Operating temperature: -25°C to +55°C
Technical Specifications
- Current Rating: 100A
- Fuse Type: 22x58mm gG
- Conditional Short Circuit Current (415V AC): 20kA
- Short Time Withstand (1s): 2750A
- Terminal Tightening Torque: 7Nm
- Cable Capacity: 10–70mm²
- Dimensions (H x W x D): 500 x 300 x 150mm
- Material: 1.2mm steel
- Finish: RAL7035
Applications
Ideal for heavy-duty industrial machinery, plant equipment, distribution systems and three-phase commercial installations requiring combined isolation and high-level fuse protection.
Installation & Compliance
This 3P+N fused switch must be installed and tested by a qualified electrician in accordance with current IET Wiring Regulations (BS 7671).
