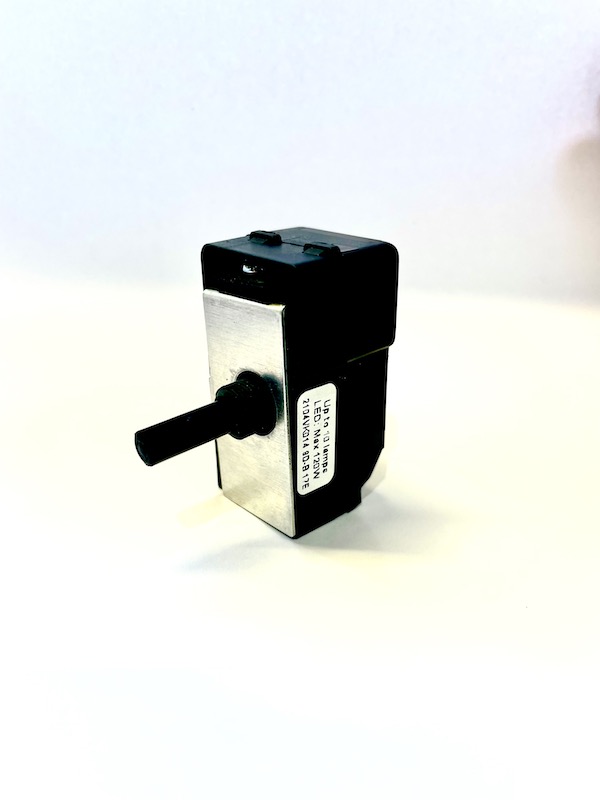

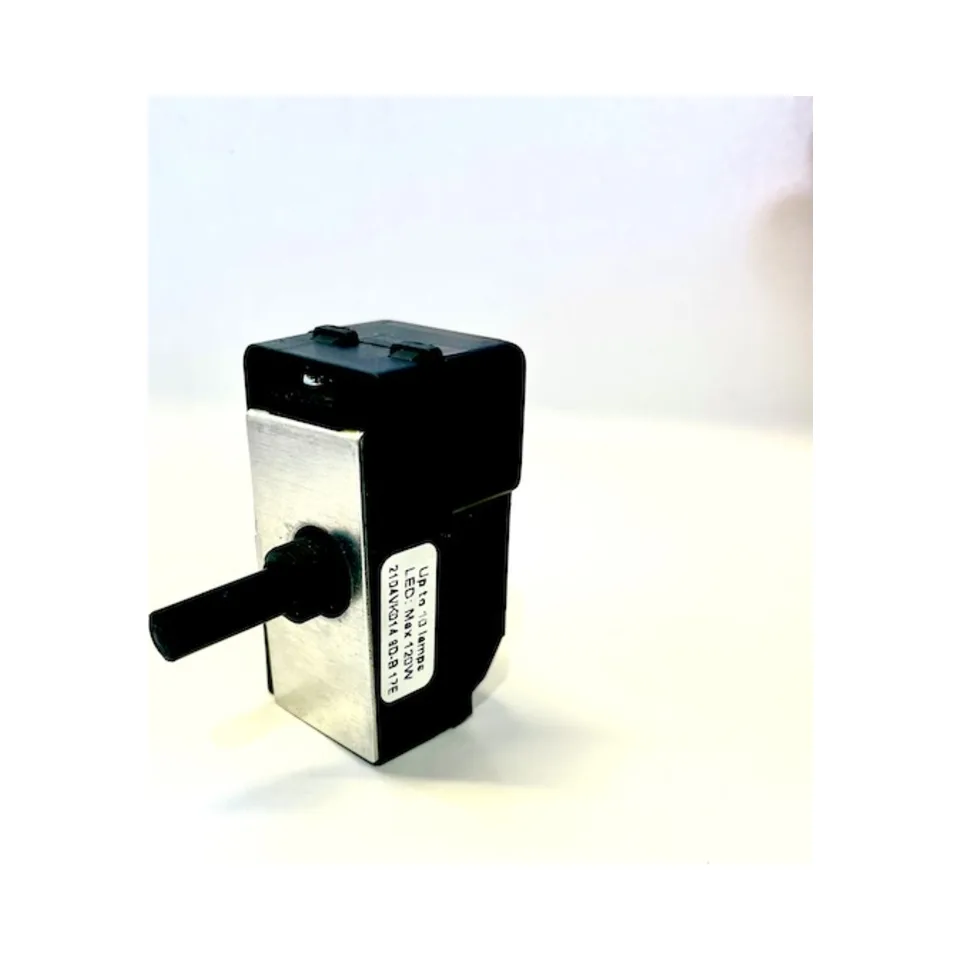

Long Spindle | LED Dimmer Module | 0–120W
Forbes & Lomax
- Manufactured by: Varilight
- SKU: ZT250
The Forbes & Lomax Long Spindle 120W LED Dimmer Module is a 2-way push-on / push-off rotary LED dimmer designed to deliver smooth, reliable dimming for modern LED lighting. Manufactured by Varilight exclusively for Forbes & Lomax, it combines premium aesthetics with advanced V-Pro intelligent dimming technology.
Featuring a long spindle for compatibility with Forbes & Lomax dimmer plates and grid systems, the ZT250 is suitable for domestic indoor lighting circuits and supports up to 120W of dimmable LED load (maximum 10 lamps).
Key Features & Benefits – Forbes & Lomax Long Spindle 120W LED Dimmer Module
- LED dimmer module 0–120W (max. 10 LED lamps)
- 2-way push-on / push-off rotary control
- Long spindle to suit Forbes & Lomax dimmer plates
- V-Pro intelligent dimming technology
- Soft start feature to extend lamp life
- Intelligent overload protection
- Adjustable minimum brightness setting
- Selectable driving modes for improved LED compatibility
- Designed to match Forbes & Lomax dimmer aesthetics
Compatibility
Compatible With
- Forbes & Lomax dimmer faceplates
- Varilight Matrix grid system
- Many TRIAC phase-cut dimmable LED lamps
- Domestic indoor lighting circuits
Not Suitable For
- Non-dimmable fluorescent lamps or tubes
- Wire-wound transformers
- Toroidal transformers
- Electric motors
- Non-dimmable LED lamps
⚠️ This is a phase-cut (TRIAC) LED dimmer and must only be used with compatible dimmable LED loads.
Intended Applications
- Indoor domestic lighting circuits
- LED dimming in Forbes & Lomax installations
- Replacement of existing dimmer modules
- Grid or modular systems requiring a long spindle LED dimmer
Technical Specifications
- Product Type: LED Dimmer Module
- SKU: ZT250
- Control Type: Rotary, Push On / Push Off
- Switching: 2-Way
- Dimming Technology: V-Pro Intelligent Phase-Cut (TRIAC)
- Maximum Load:
- LED: 120W max
- Maximum 10 LED lamps
- Spindle Type: Long spindle
- Application: Indoor use only
- Circuit Type: Domestic lighting circuits
Safety Advice
- Use only with compatible dimmable LED lamps
- Not suitable for non-dimmable or inductive loads
- Do not overload
- Installation must be carried out in accordance with current wiring regulations
