Description

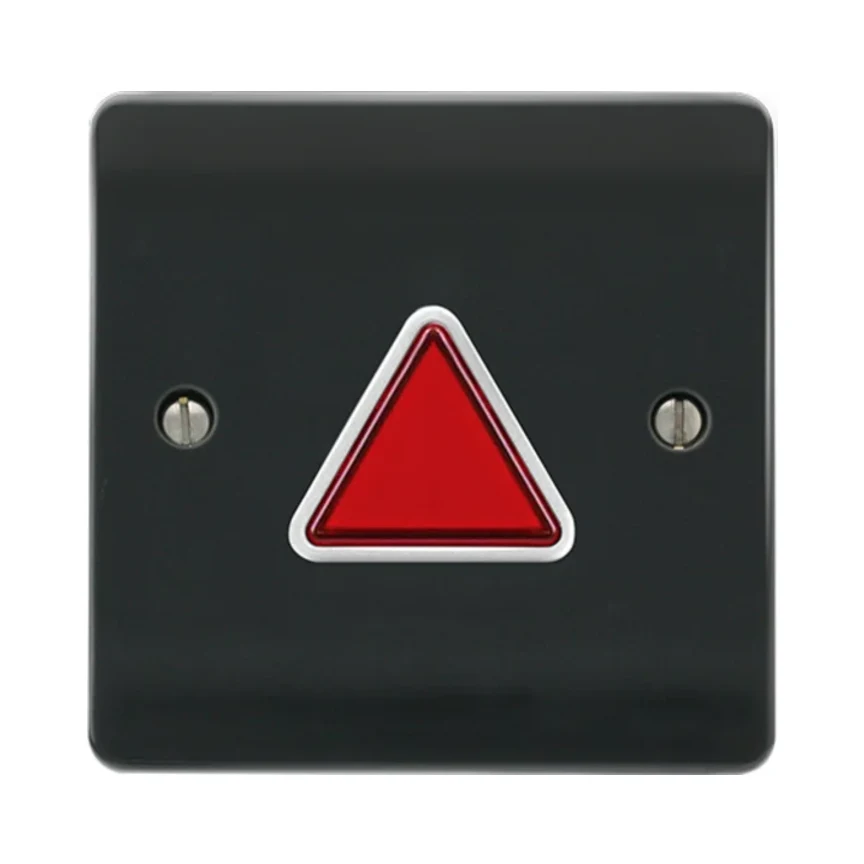

Assistance Alarm, Power, Light and Buzzer Module
ESP UDTAPLBMG
The ESP UDTAPLBMG is a grey-finished assistance alarm module that integrates power control, visual LED indication, and audible alerts. Constructed from anti-microbial ABS with a built-in battery backup, it is designed for hygiene, accessibility, and compliance with Part M1 Building Regulations.
Key Features
- Grey single gang plate with light reflectance value (LRV) of 32
- Anti-microbial ABS construction for improved hygiene
- Built-in battery backup with supplied A23 battery
- Intermittent buzzer alert when battery replacement is required
- LED indication illuminates in red during alarm state
- Buzzer sound level above 80dB
- Surface or flush mounting with included backbox
- Two outputs for additional sounders or devices
- Complies with Part M1 Building Regulations for accessibility
Technical Overview
- Product code: UDTAPLBMG
- Dimensions: 87 x 87 x 41mm
- Operating voltage: 100–230V AC
- Maximum cable size: 1.5mm²
- Power consumption: 0.2A
- Battery backup: A23 battery
- Inputs: Ground and 2 live circuits (X1 & X2)
- Activation type: Energise with a normally open clean contact
- Outputs: 2 (1 switched live sharing common ground, 1 for additional sounders)
- Output rating: 12V 500mA
- Ingress protection: IP20
- Warranty: 2 years
What’s Included
- 1 x UDTAPLBMG Assistance Alarm, Power, Light and Buzzer Module
- 1 x Backbox
- Installation bolts
- User manual
Why Choose This Product?
The UDTAPLBMG provides essential assistance alarm functions in a single, compact unit. Its hygienic surface, accessibility compliance, and built-in battery backup make it suitable for healthcare, public, and assisted living environments.
Guarantee & Compliance
Supplied with a 2-year manufacturer’s warranty, the ESP UDTAPLBMG meets UK safety and performance standards.
