Description

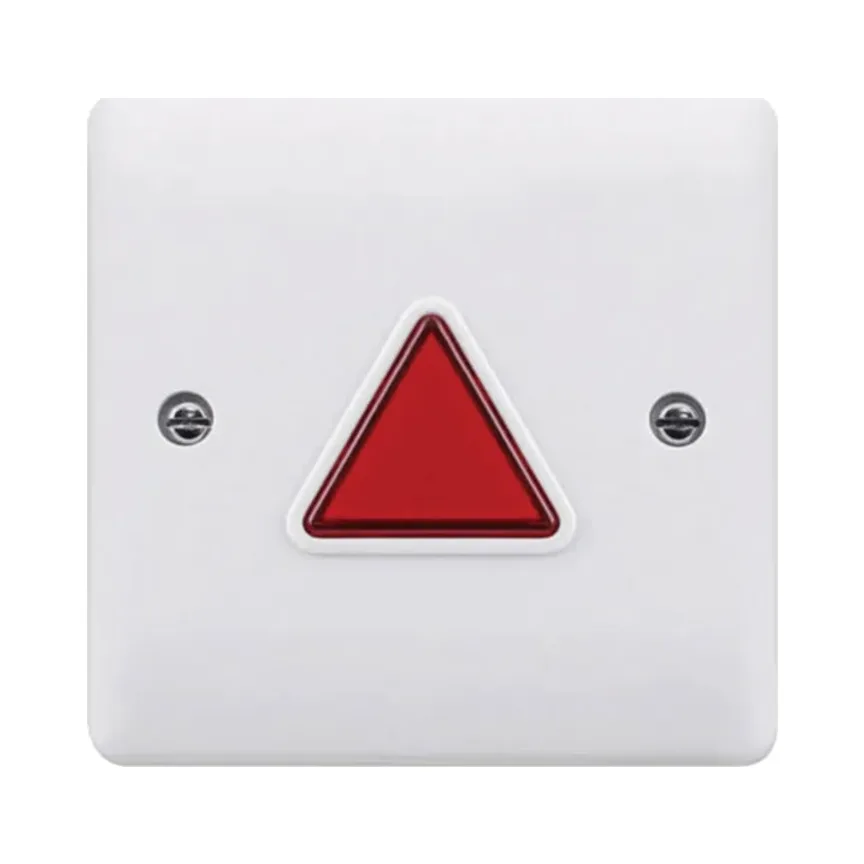

Assistance Alarm, Power, Light and Buzzer Module
ESP UDTAPLBM
The ESP UDTAPLBM is a white assistance alarm module combining power control, LED indication, and audible alerts. Designed from anti-microbial ABS and equipped with a built-in battery backup, it ensures continuous and hygienic operation in assistance alarm systems.
Key Features
- White single gang plate with anti-microbial ABS construction
- Built-in battery backup with supplied A23 battery
- Intermittent buzzer alert when battery replacement is required
- LED indication illuminates in red during alarm state
- Integrated buzzer with a sound level above 80dB
- Surface or flush mounting with included backbox
- Two outputs for additional sounders or connected devices
Technical Overview
- Product code: UDTAPLBM
- Dimensions: 87 x 87 x 41mm
- Operating voltage: 100–230V AC
- Maximum cable size: 1.5mm²
- Power consumption: 0.2A
- Battery backup: A23 battery
- Inputs: Ground and 2 live circuits (X1 & X2)
- Activation type: Energise with a normally open clean contact
- Outputs: 2 (1 switched live sharing common ground, 1 for additional sounders)
- Output rating: 12V 500mA
- Ingress protection: IP20
- Warranty: 2 years
What’s Included
- 1 x UDTAPLBM Assistance Alarm, Power, Light and Buzzer Module
- 1 x Backbox
- Installation bolts
- User manual
Why Choose This Product?
The UDTAPLBM offers combined power control, visual signalling, and audible alarm alerts, making it a versatile and essential part of an assistance alarm system. Its anti-microbial finish and built-in battery backup provide hygiene, reliability, and resilience.
Guarantee & Compliance
Supplied with a 2-year manufacturer’s warranty, the ESP UDTAPLBM meets UK safety and performance standards.
