Description
Audible Fire Alert for MAGDUO Fire Alarm Panels

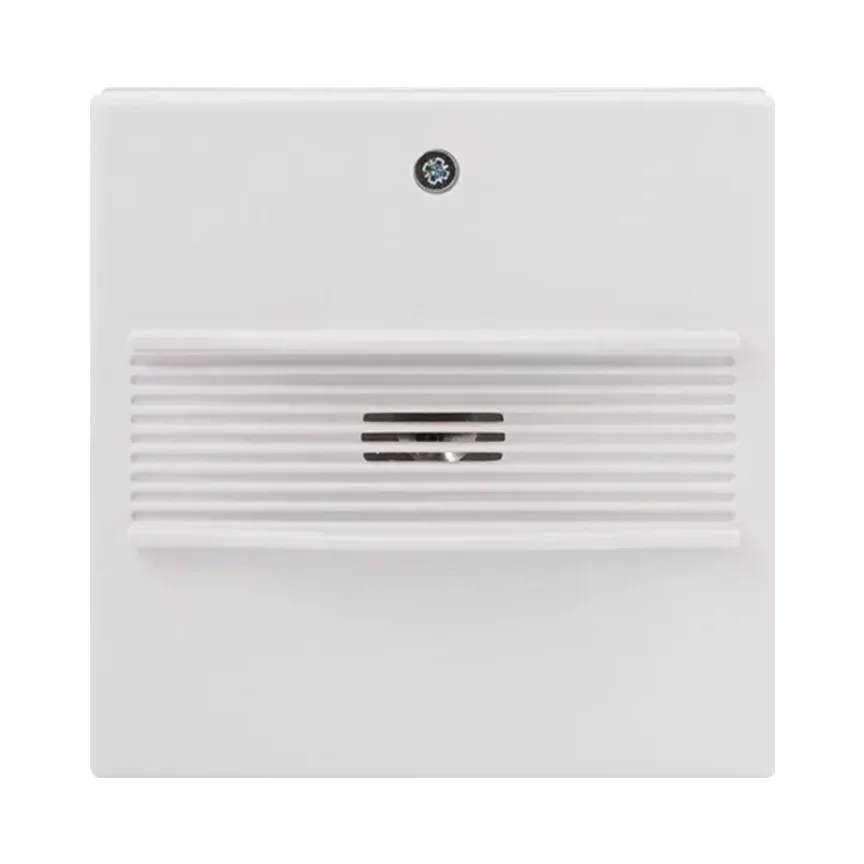

ESP MAGDUOSWSQ 2 Wire Wall Sounder – White
The ESP MAGDUOSWSQ is a white 2-wire wall-mounted sounder, engineered for compatibility with MAGDUO2, MAGDUO4, and MAGDUO8 fire alarm control panels. Designed for conventional wiring, this sounder delivers clear and reliable audible alerts with selectable high and low volume settings—ideal for a range of indoor applications requiring EN 54-3 certified sound signalling.
Available for surface or flush mounting, the MAGDUOSWSQ offers a compact, discreet design without compromising performance. With low quiescent current and a maximum output of 85+ dB, it is suitable for stairwells, corridors, offices, and general circulation areas.
Key Features – ESP MAGDUOSWSQ 2 Wire Sounder Square White
- Compact wall-mounted fire alarm sounder in white finish
- Two selectable sound output levels: 65+ dB (Low) / 85+ dB (High)
- Compatible with all MAGDUO panels (2, 4, 8 zone)
- Supports surface and flush mounting options
- Ultra-low quiescent current: 0.185 mA
- Fully certified to BS EN 54-3
- 3-year manufacturer warranty
Technical Overview
- Dimensions:
- Surface Mount: 89mm x 89mm x 62mm
- Flush Mount: 89mm x 89mm x 34mm
- Operating Voltage (Mains Panel): 25.5 – 35V DC
- Operating Voltage (Battery Panel): 23 – 26V DC
- Alarm Current (High/Low): 14.5 mA / 12.6 mA
- DLU (Low Volume Mode): 13
- Wiring Type: 2-Wire Conventional
- Max Cable Size: 1.5mm²
- Ingress Protection: IP21C
- Operating Temperature: -10°C to +50°C
- Compliance: BS EN 54-3
What’s Included
- 1 x ESP MAGDUOSWSQ White Wall Sounder
- Mounting hardware for surface and flush installation
- Installation guide
✅ Why Choose This Product?
The MAGDUOSWSQ provides dependable audible fire signalling with minimal power draw, making it ideal for multi-zone indoor fire alarm setups. Its dual volume modes offer installation flexibility in spaces with varying acoustic requirements.
️ Guarantee & Compliance
Backed by a 3-year manufacturer warranty and fully compliant with BS EN 54-3, this sounder meets industry standards for performance and safety.
