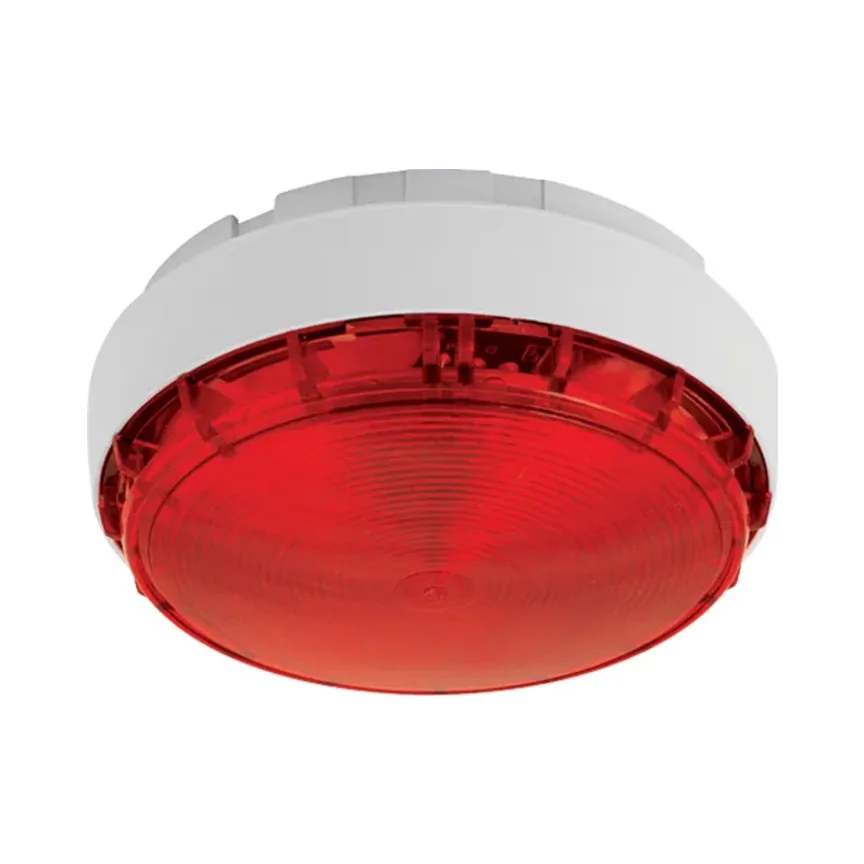

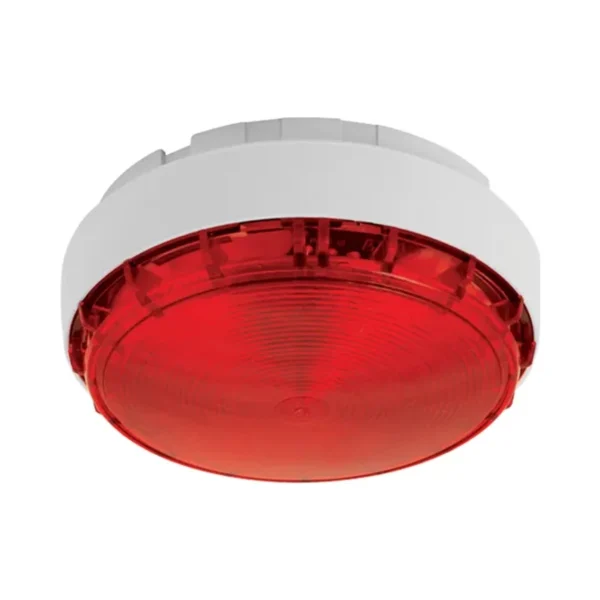

2 Wire Sounder Strobe Low Profile
ESP MAGDUOSSLP
Enhance internal fire alert coverage with the ESP MAGDUOSSLP 2 Wire Sounder Strobe Low Profile. Designed for use with MAGDUO2, MAGDUO4, and MAGDUO8 two-wire systems, this compact sounder-strobe delivers both visual and audible warnings in a space-saving format—ideal for ceilings and low-clearance areas.
The device offers selectable low (65+dB) or high (90+dB) volume settings and emits a bright strobe flash during alarm conditions. It features low power consumption and IP21C ingress protection, making it suitable for standard internal environments like offices, stairwells, and retail units.
Thanks to its 2-wire configuration and low profile design, the MAGDUOSSLP streamlines installation and supports a neater, less intrusive appearance on ceilings or walls.
✨ Key Features – ESP MAGDUOSSLP 2 Wire Sounder Strobe Low Profile
- Designed for MAGDUO2, MAGDUO4 & MAGDUO8 two-wire panels
- Dual function: audible (sounder) and visual (strobe)
- Selectable output: Low (65+dB) or High (90+dB)
- Ultra-low quiescent current: only 0.22mA
- Discreet low profile housing – only 45mm deep
Technical Overview – ESP MAGDUOSSLP 2 Wire Sounder Strobe Low Profile
- Operating voltage: 25.5–35V (mains), 24–26V (battery)
- Quiescent current: 0.22mA
- Alarm current: 15mA (Low) / 23.5mA (High)
- Sound output: 65+ dB (Low) / 90+ dB (High)
- Ingress protection: IP21C
- Dimensions: Ø105mm x 45mm
- Wiring type: 2-wire conventional
- Max cable size: 1.5mm²
- Standard: BS EN 54-3
✅ Why Choose This Product?
Choose the ESP MAGDUOSSLP when space is limited but performance is critical. It offers reliable audio-visual warning with minimal footprint, ideal for offices and indoor public areas using MAGDUO two-wire fire systems.
About ESP
ESP (Elite Security Products) is a leading UK manufacturer of fire and security systems. Their MAGDUO range provides reliable, BS-compliant protection, supported by expert design services and user-friendly installation across commercial and residential sectors.
️ Guarantee & Compliance
This product meets BS EN 54-3 standards and comes with a 3-year manufacturer’s warranty. Always install in accordance with current fire safety regulations and ESP documentation.
