Dual-Volume Fire Alarm Sounder for MAGDUO Panels

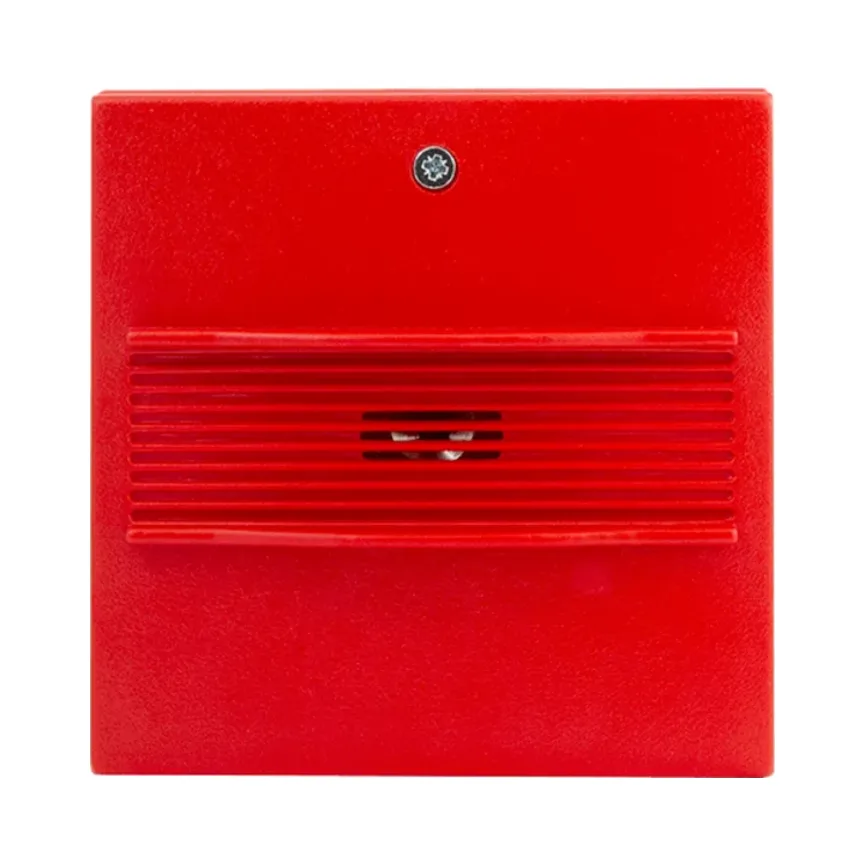

ESP MAGDUOSRSQ 2 Wire Wall Sounder – Red
The ESP MAGDUOSRSQ is a red wall-mounted 2-wire sounder designed for use with the MAGDUO2, MAGDUO4, and MAGDUO8 fire alarm panels. With selectable volume modes and a compact design suitable for both surface and flush mounting, it offers dependable audible alarm signalling for a wide range of indoor fire safety applications.
This EN 54-3 certified sounder delivers outputs of 85+ dB (High) and 65+ dB (Low) at 1 metre and has low quiescent and active current requirements, making it ideal for installations prioritising both performance and efficiency.
Key Features – ESP MAGDUOSRSQ Sounder Square Red
- Red fire alarm sounder for wall mounting
- Dual volume output: 65+ dB (Low) / 85+ dB (High)
- Compatible with ESP MAGDUO 2, 4, and 8 zone panels
- Supports surface and flush installation
- Certified to BS EN 54-3
- Low power consumption: 0.185 mA quiescent
- 3-year manufacturer warranty
Technical Overview – ESP MAGDUOSRSQ Sounder Square Red
- Dimensions:
- Surface: 89mm x 89mm x 62mm
- Flush: 89mm x 89mm x 34mm
- Operating Voltage:
- Mains: 25.5 – 35V DC
- Battery: 22 – 26V DC
- Alarm Current: High – 14.5 mA, Low – 12.6 mA
- Quiescent Current: 0.185 mA
- DLU (Low Volume Mode): 13
- Wiring: 2-Wire Conventional
- Max Cable Size: 1.5mm²
- Ingress Protection: IP21C
- Operating Temp: -10°C to +50°C
- Standard: BS EN 54-3
What’s Included
- 1 x ESP MAGDUOSRSQ Red Wall Sounder
- Mounting accessories
- Installation manual
✅ Why Choose This Product?
The MAGDUOSRSQ sounder offers installers a dependable and efficient audible alarm solution for indoor MAGDUO fire alarm systems. Its selectable volume modes make it suitable for areas with varying noise levels, and its compact form blends easily into most interiors.
️ Guarantee & Compliance
Supplied with a 3-year manufacturer warranty and compliant with BS EN 54-3, this sounder meets UK fire safety requirements for audible signalling devices.
