Description
All-in-One Detector with Visual and Audible Alerts for MAGDUO Panels

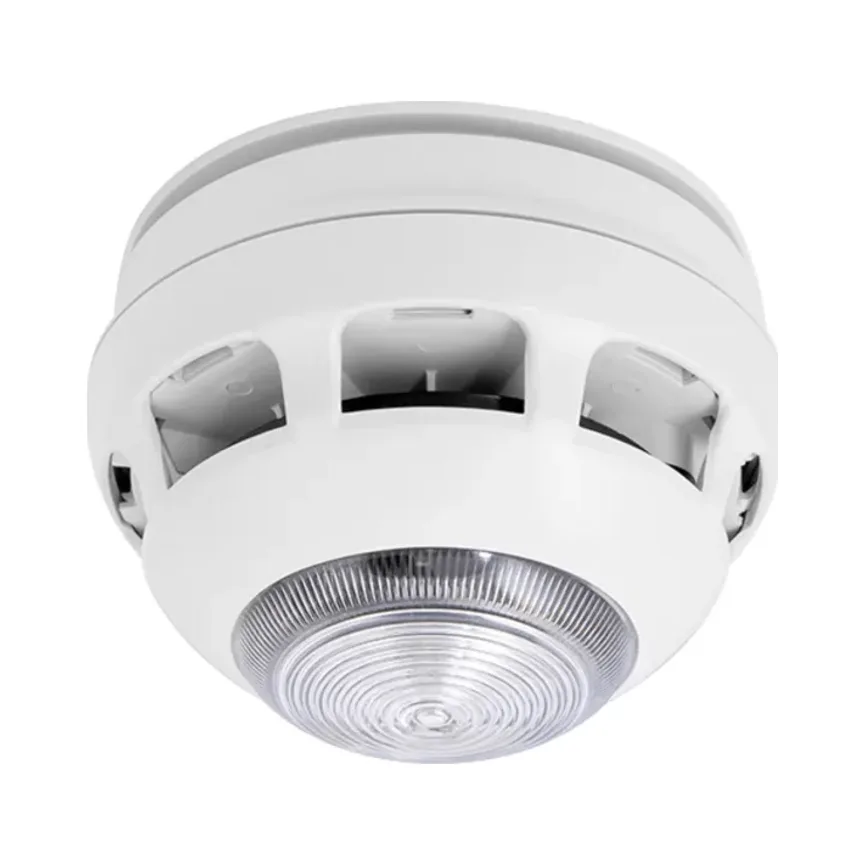

ESP MAGDUOSHDSS FlexiPoint Smoke & Heat Detector with Sounder & Strobe
The ESP MAGDUOSHDSS is a powerful 2-wire FlexiPoint combined smoke and heat detector featuring both an integrated sounder and strobe. Designed for use with ESP’s MAGDUO fire alarm panels, it provides rapid detection with clear visual and audible alerts—making it an ideal choice for enhanced life safety in commercial and multi-occupancy buildings.
Compliant with BS EN 54-3, EN 54-5, and EN 54-7, the MAGDUOSHDSS supports dual-sensor fire detection with high/low volume sound options and a bright strobe for increased visibility in noisy or vulnerable areas.
Key Features – ESP MAGDUOSHDSS Detector with Sounder/Strobe
- Combined smoke and heat detection with built-in sounder and strobe
- 2-wire conventional wiring simplifies installation
- Adjustable sounder output: 70+ dB (Low) / 90+ dB (High)
- Strobe function improves alert visibility
- Ultra-low standby current: 0.1 mA
- Max current draw: 28.5 mA
- Certified to EN 54-3, EN 54-5, and EN 54-7
- 3-year manufacturer warranty
Technical Overview – ESP MAGDUOSHDSS Detector with Sounder/Strobe
- Dimensions: Ø107mm x 75mm
- Operating Voltage: 18V – 32V DC
- Quiescent Current: 0.1 mA
- Current in Alarm State: High – 10.5 mA, Low – 4.9 mA, Off – 2.6 mA
- Max Current Consumption: 28.5 mA
- Alarm Current @ 24V: 15.5 mA
- DLU Rating: Max 8, High 16
- Max Cable Size: 1.5mm²
- Ingress Protection: IP21C
- Operating Temp: -10°C to +50°C
- Wiring Type: 2-Wire Conventional
What’s Included
- 1 x ESP MAGDUOSHDSS Detector with Sounder & Strobe
- Mounting base and fixings
- Installation instructions
- ✅ Why Choose This Product?
The MAGDUOSHDSS enhances fire alarm installations by combining smoke and heat sensing, a high/low volume sounder, and a flashing strobe into a single device. This improves occupant awareness in all conditions and helps meet accessibility requirements while reducing installation complexity.
️ Guarantee & Compliance
Backed by a 3-year warranty and certified to BS EN 54-3, EN 54-5, and EN 54-7, this product ensures reliable, compliant performance for a variety of professional fire safety installations.
