Description
2-Wire Smoke & Heat Detector with Integrated Sounder for MAGDUO Panels

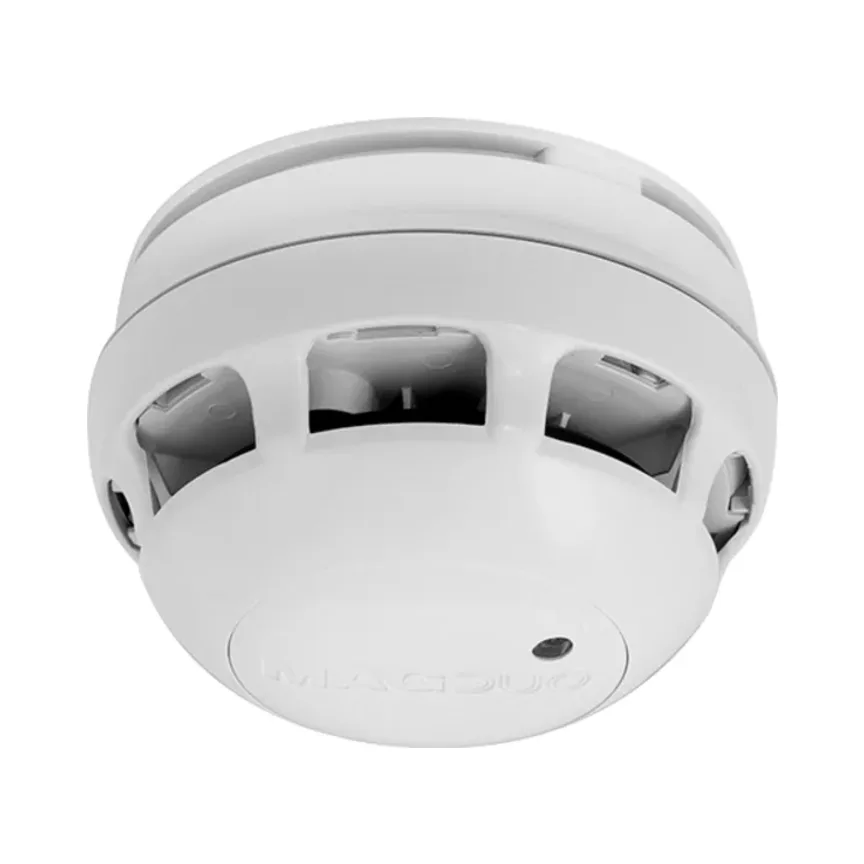

ESP MAGDUOSHDS FlexiPoint Smoke & Heat Detector with Sounder
The ESP MAGDUOSHDS is a versatile 2-wire FlexiPoint smoke and heat detector with a built-in sounder, designed for ESP’s MAGDUO fire alarm systems. This all-in-one device combines dual-sensor fire detection with powerful audible alert capability, offering a compact and cost-effective solution for comprehensive fire protection.
Fully certified to BS EN 54-5, BS EN 54-7, and BS EN 54-3, this detector ensures fast and reliable fire response with both visual and audible indicators. With selectable sound levels, ultra-low standby current, and straightforward 2-wire installation, the MAGDUOSHDS helps streamline your alarm system design while enhancing safety.
Key Features – ESP MAGDUOSHDS Smoke & Heat Detector with Sounder
- Combined smoke and heat detector with integrated sounder
- 2-wire conventional wiring – easy to install
- Adjustable sounder levels: 70+ dB (Low) / 90+ dB (High)
- Ultra-low quiescent current: 0.1 mA
- Maximum current draw: 23.8 mA
- Certified to BS EN 54-5, EN 54-7, and EN 54-3
- 3-year manufacturer warranty
Technical Overview
- Dimensions: Ø107mm x 75mm
- Operating Voltage: 18V – 32V DC
- Quiescent Current: 0.1 mA
- Alarm Current at 24V: 15.5 mA
- Current Consumption (Alarm State): High – 8 mA, Low – 2.5 mA, Off – 0.15 mA
- Max Cable Size: 1.5mm²
- Ingress Protection: IP21C
- Operating Temperature: -10°C to +50°C
- Wiring Type: 2-Wire Conventional
- DLU Rating: 6.5 (Low), 8 (High)
What’s Included
- 1 x ESP MAGDUOSHDS FlexiPoint Detector with Sounder
- Mounting base and fixings
- Installation manual
✅ Why Choose This Product?
The MAGDUOSHDS offers exceptional value by combining three essential fire detection functions—smoke sensing, heat sensing, and sound notification—into a single unit. Perfect for commercial or multi-zone environments, this device helps reduce system complexity and cost while improving response time and overall safety.
️ Guarantee & Compliance
This product includes a 3-year manufacturer warranty and conforms to BS EN 54-5, BS EN 54-7, and BS EN 54-3, supporting safe and compliant alarm installations.
