Description
2-Wire Combined Smoke & Heat Detector for Fire Alarm Systems

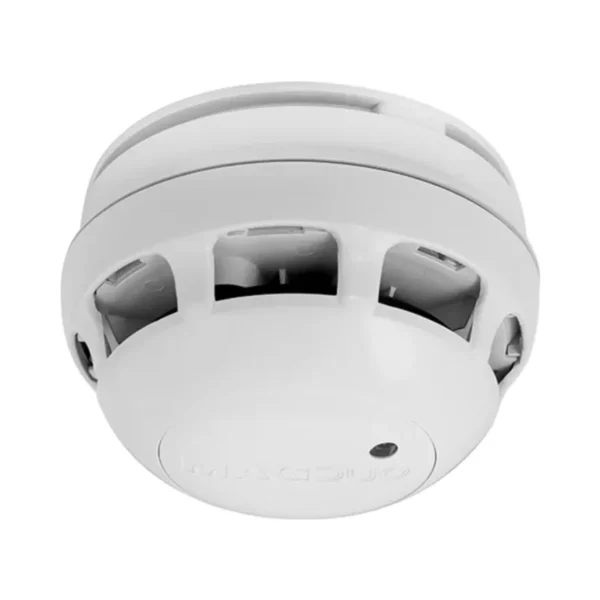

ESP MAGDUOSHD FlexiPoint Smoke & Heat Detector for MAGDUO
The ESP MAGDUOSHD 2 Wire Smoke & Heat Detector is a dual-sensor fire detector designed for use with ESP’s MAGDUO two-wire fire alarm panels. Offering both smoke and heat detection capabilities in a single compact unit, this detector ensures reliable fire response and simplified wiring, making it ideal for a wide range of commercial and residential installations.
Fully compliant with BS EN 54-5 and BS EN 54-7, the MAGDUOSHD detector helps meet current fire safety standards. With a low-profile design, ultra-low quiescent current, and intuitive 2-wire wiring, this is a trusted choice for fire alarm professionals.
Key Features – ESP MAGDUOSHD 2-Wire Smoke & Heat Detector
- Dual-sensor: smoke and heat detection in one device
- Designed specifically for use with MAGDUO 2-wire fire alarm panels
- Fully compliant with BS EN 54-5 and BS EN 54-7
- 2-wire conventional wiring for quick installation
- IP21C ingress protection for internal use
- Extremely low quiescent current: 0.1 mA
- Alarm current: 15.5 mA
- 3-year manufacturer warranty
Technical Overview
- Dimensions: Ø107mm x 75mm (height)
- Operating Voltage (Mains Panels): 25.5V – 35V DC
- Operating Voltage (Battery Panels): 30V – 26V DC
- Wiring Type: 2-Wire Conventional
- Device Loading Units (DLU): 23
- Maximum Cable Size: 1.5mm²
- Operating Temperature: -10°C to +50°C
- Ingress Protection: IP21C
- Standards: BS EN 54-5, BS EN 54-7
What’s Included – ESP MAGDUOSHD 2 Wire Smoke & Heat Detector
- 1 x ESP MAGDUOSHD FlexiPoint Smoke & Heat Detector
- Mounting base and fixings
- Installation guide
✅ Why Choose This Product?
The ESP MAGDUOSHD is ideal for installers seeking a dual-purpose detection solution without increasing wiring complexity. By combining smoke and heat sensors, it enhances fire detection accuracy across a wide range of environments—offering confidence and compliance in every installation.
️ Guarantee & Compliance
This product comes with a 3-year manufacturer warranty and meets the requirements of BS EN 54-5 and BS EN 54-7, ensuring full compliance with UK fire detection regulations.
