️ Remote Repeater Panel for MAGDUO4 and MAGDUO8 Systems

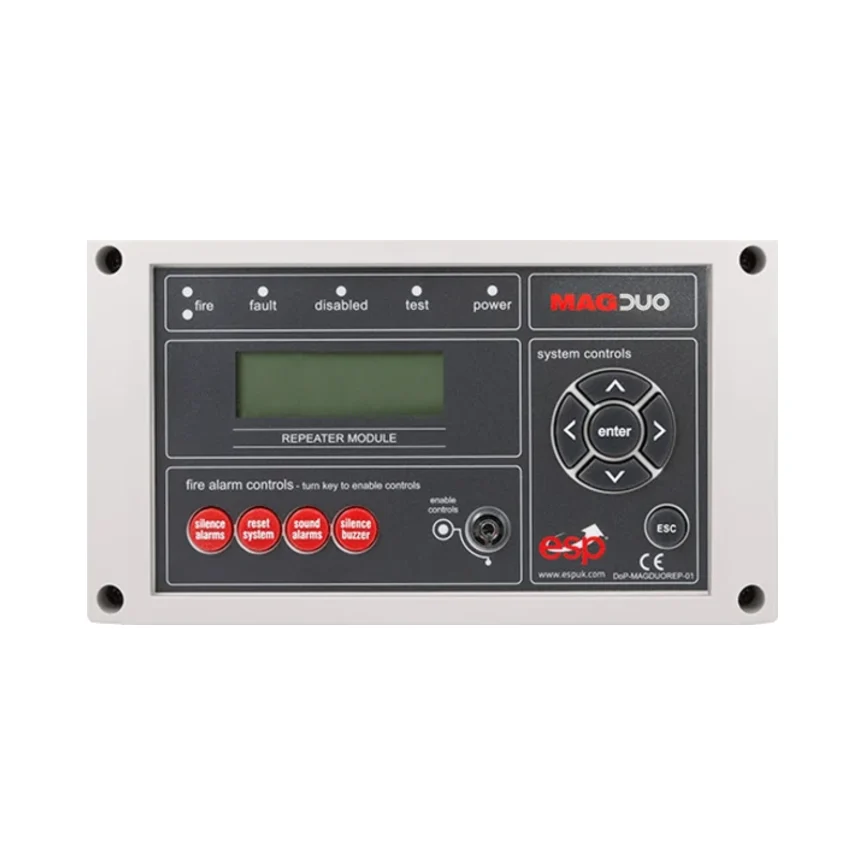

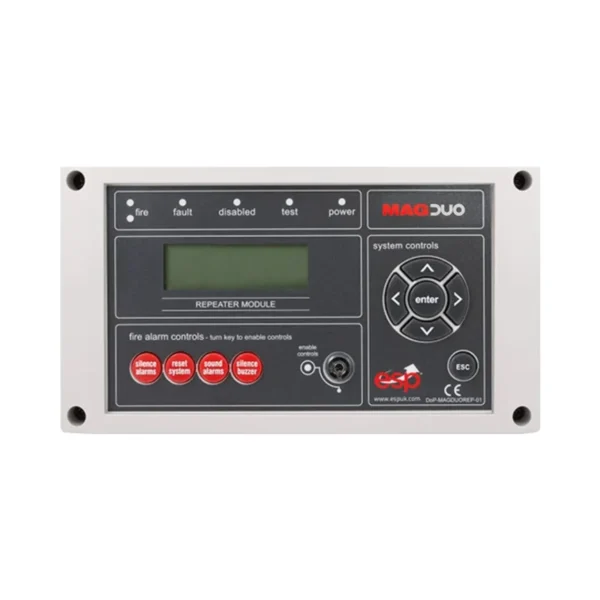

ESP MAGDUOREP Repeater Panel for MAGDUO – Grey
The ESP MAGDUOREP is a grey conventional repeater panel designed for use with MAGDUO4 and MAGDUO8 fire alarm systems. It provides real-time status visibility from remote locations and communicates with the main control panel via RS-485 protocol. Ideal for larger sites with multiple access points or fire wardens’ stations.
Each MAGDUO system supports up to eight repeater panels, enabling scalable monitoring. The compact unit is housed in flame-retardant UL94-V0 ABS and includes 6 x 20mm knockouts plus 40 x double 20mm knockouts for flexible cable management. Proudly made in the UK.
Key Features – ESP MAGDUOREP 2 Wire Fire Repeater Panel
- Designed for MAGDUO4 and MAGDUO8 panel systems
- RS-485 communication for reliable remote monitoring
- Up to 8 repeaters per system
- 6 x 20mm and 40 x double 20mm cable entry knockouts
- UL94-V0 ABS flame-retardant housing
- Made in the UK
- 3-year warranty
Technical Overview – ESP MAGDUOREP 2 Wire Fire Repeater Panel
- Dimensions: 250mm (W) x 140mm (H) x 85mm (D)
- Material: ABS (UL94-V0)
- Weight: 0.65 kg
- Operating Voltage: 24V DC
- Quiescent Current: 16 mA
- Max Current Consumption: 50 mA
- Max Cable Size: 1.5mm² (2-core screened)
- Ingress Protection: IP20
- Operating Temp: +5°C to +50°C
- Communication Type: RS-485
- Compatible Panels: MAGDUO4 and MAGDUO8
What’s Included
- 1 x ESP MAGDUOREP Grey Repeater Panel
- Terminal connectors
- Installation manual
✅ Why Choose This Product?
Ideal for installations requiring fire panel monitoring from multiple building locations, the MAGDUOREP makes system expansion easy without compromising control. Its compact form, low power demand, and strong feature set make it a dependable extension tool.
️ Guarantee & Compliance
Includes a 3-year manufacturer warranty and is proudly made in the UK. Designed specifically for MAGDUO systems and compliant with UK fire installation standards.
