Control External Devices or Monitor Inputs with MAGDUO Panels

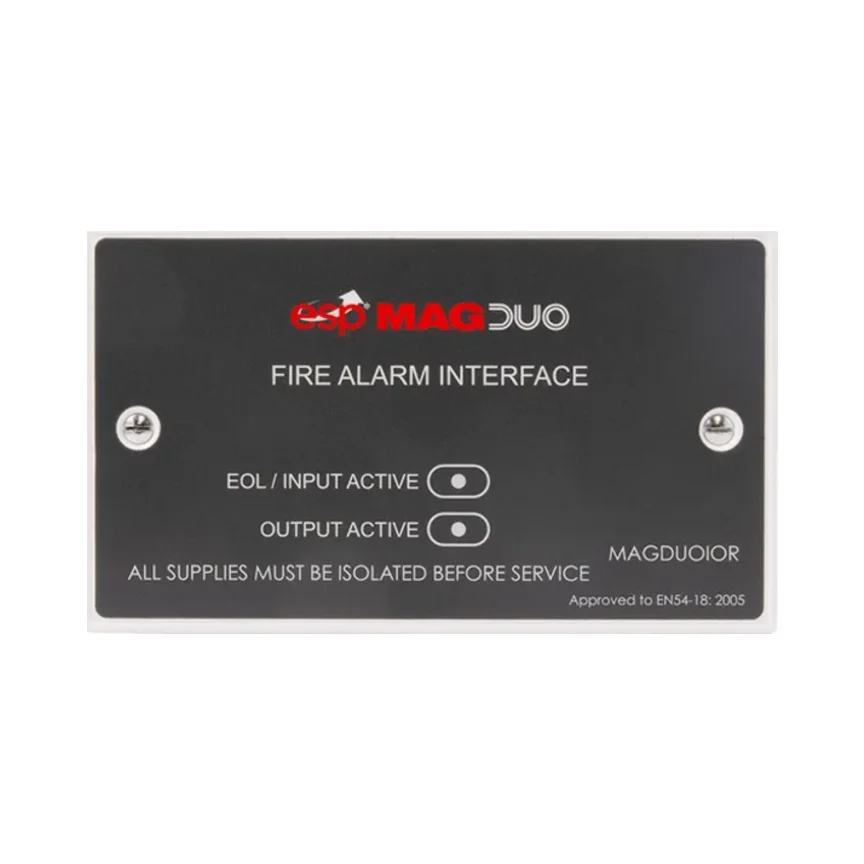

ESP MAGDUOIOR Input/Output Module for MAGDUO Fire Alarm Systems
The ESP MAGDUOIOR is a fully certified input/output module designed for use with MAGDUO fire alarm systems. Compliant with BS EN 54-18, this I/O unit provides a DPCO (double pole changeover) relay contact, allowing installers to integrate third-party systems such as fire doors, smoke dampers, HVAC shutdowns, or remote indicators.
It features clear LED status indicators for active outputs and inputs, plus end-of-line monitoring status. With support for up to 160 Device Loading Units (DLUs) per zone and low current draw, it offers flexibility and reliability in demanding installations.
Key Features – ESP MAGDUOIOR Input / Output Relay Module
- Certified input/output module for MAGDUO systems
- 1 x DPCO relay: 30V DC @ 2A / 250V AC @ 3A (max 3A surge)
- LED indication for input, output, and line status
- Status feedback: active, end-of-line, and normal operation
- Compatible with MAGDUO2, MAGDUO4, and MAGDUO8 panels
- UL94-V2 flame-retardant construction
- 3-year manufacturer warranty
Technical Overview – ESP MAGDUOIOR Input / Output Relay Module
- Product Code: MAGDUOIOR
- Standards: BS EN 54-18
- Dimensions: 146mm (W) x 87mm (H) x 41mm (D)
- Mount Box Dimensions: 146mm x 87mm x 32mm
- Operating Voltage:
- Mains: 25.5 – 35V DC
- Battery: 26 – 30V DC
- Quiescent Current: 0.207 mA
- Max Cable Size: 1.5mm²
- Relay Contact Type: DPCO
- Output Rating: 30V DC @ 2A / 250V AC @ 3A
- Wiring Type: 2-Wire Conventional
- Ingress Protection: IP30
- Operating Temp: -10°C to +45°C
- DLU: 23 (max 160 per zone)
What’s Included
- 1 x ESP MAGDUOIOR Input/Output Module
- Mounting hardware
- Installation instructions
✅ Why Choose This Product?
The MAGDUOIOR provides seamless integration of MAGDUO fire alarm systems with third-party devices and subsystems. With its dual LED status feedback and high-current output capacity, it offers reliable monitoring and control across a range of fire safety applications.
️ Guarantee & Compliance
Backed by a 3-year manufacturer warranty and compliant with BS EN 54-18, this module meets UK fire system regulations and ensures long-term performance.
