Description
IP65 Surface/Flush Call Point for ESP MAGDUO Panels

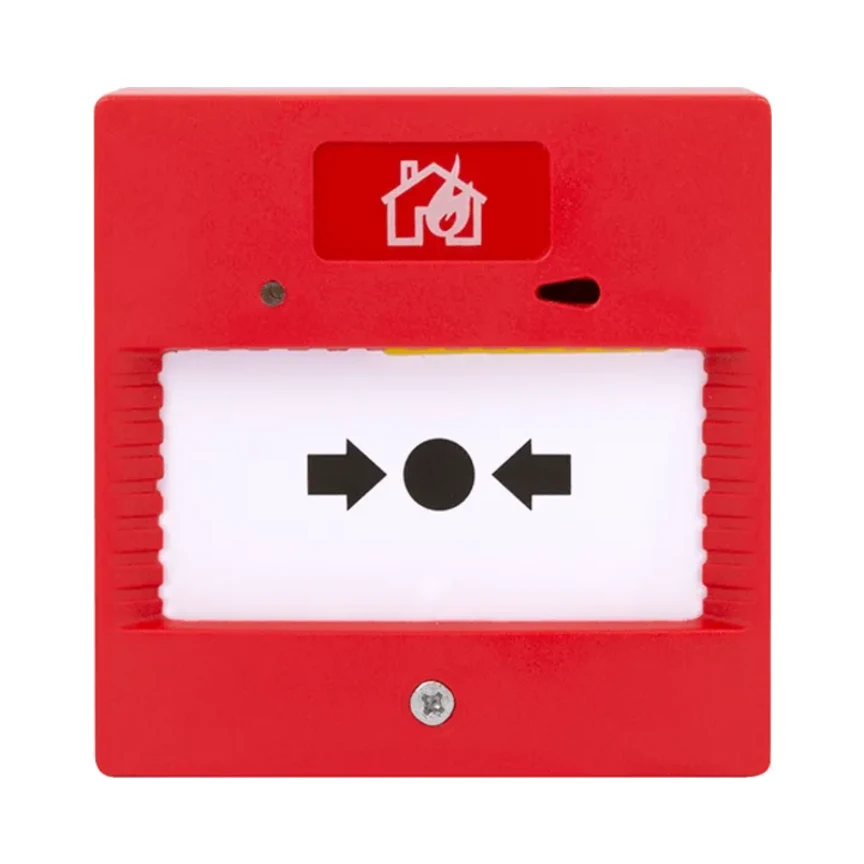

ESP MAGDUOCPIP65 Manual Call Point – IP65 Weatherproof
The ESP MAGDUOCPIP65 is a weatherproof manual call point designed for use with MAGDUO fire alarm panels. Featuring an IP65 rating, it is ideal for both indoor and outdoor installations exposed to dust, moisture, or harsh environmental conditions. This call point is compliant with BS EN 54-11 and includes a red LED status indicator for active alarm feedback.
Suitable for surface or flush mounting, it comes with a frangible resettable element and is compatible with accessories like the MAGDUOCPC protective cover and MAGDUOCPK reset key pack.
Key Features – ESP MAGDUOCPIP65 Resettable IP65 Call Point
- IP65-rated for outdoor or washdown areas
- Compatible with MAGDUO2, MAGDUO4, and MAGDUO8 panels
- Fully certified to BS EN 54-11
- Red LED operation indicator
- Frangible resettable element (Type A)
- Surface and flush mountable
- Low power usage: 16.5 mA max
- 3-year manufacturer warranty
Technical Overview – ESP MAGDUOCPIP65 Resettable IP65 Call Point
- Dimensions:
- Surface: 87mm x 87mm x 53mm
- Flush: 87mm x 87mm x 25mm
- Operating Voltage:
- Mains: 25.5 – 35V DC
- Battery: 26 – 29V DC
- Current Consumption: 16.5 mA max
- LED Indicator: Red
- Wiring: 2-Wire Conventional
- DLU Rating: 16
- Max Cable Size: 1.5mm²
- Operating Temp: -10°C to +50°C
- Ingress Protection: IP65
- Standard: BS EN 54-11
What’s Included
- 1 x ESP MAGDUOCPIP65 Call Point
- Surface/flush mounting hardware
- Installation instructions
✅ Why Choose This Product?
Designed for demanding environments, the MAGDUOCPIP65 offers weatherproof manual fire alarm activation with clear status feedback. It’s a reliable solution for building entrances, loading bays, plant rooms, and other exposed areas requiring fire detection compliance.
️ Guarantee & Compliance
Supplied with a 3-year manufacturer warranty and compliant with BS EN 54-11, this product is suitable for UK-regulated fire alarm installations in harsh or external environments.
