Description

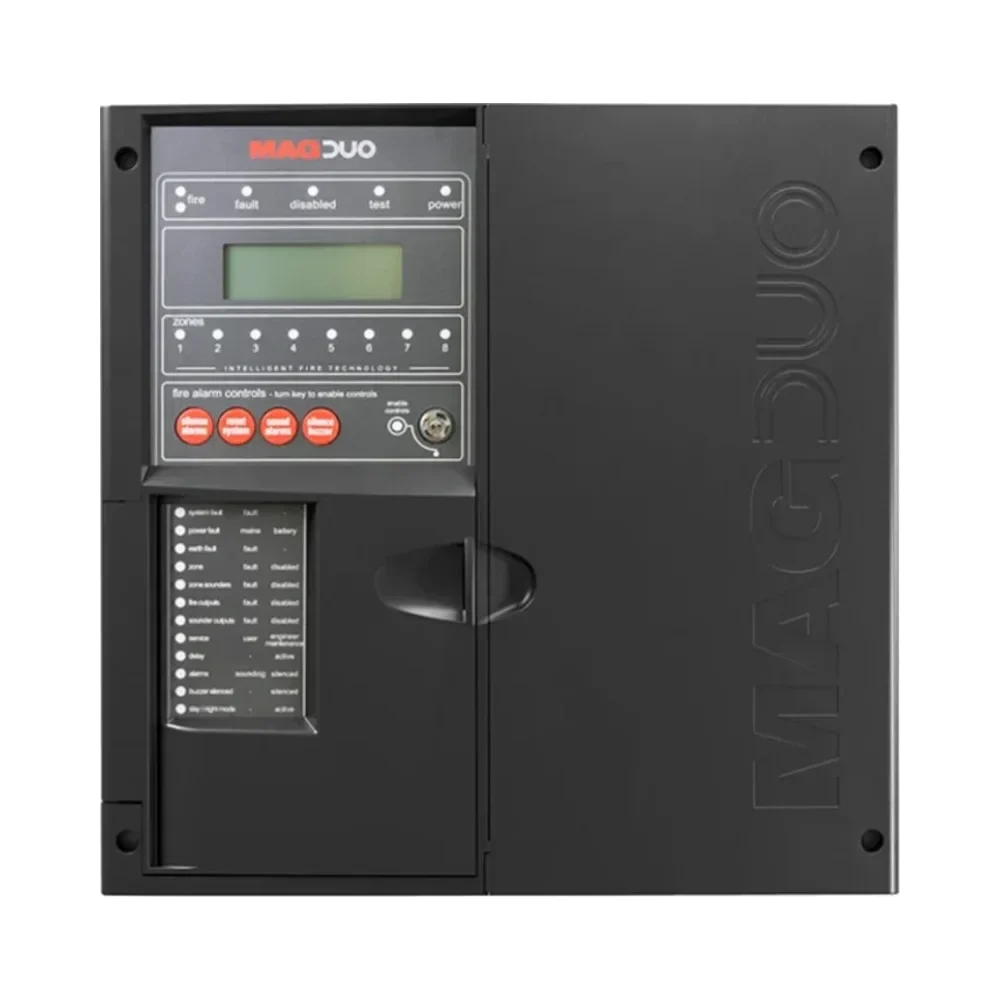

MAGDUO8B 8 Zone 2-Wire Fire Alarm Panel – Black
Large-Capacity Fire Alarm Panel with Sleek Finish
The MAGDUO8B offers full 8-zone fire detection in a modern black housing. Expandable to 12 zones, it’s engineered for commercial, education, and hospitality projects that demand broad coverage and neat design integration.
✨ Key Features – 8 Zone Black 2-Wire Fire Alarm Panel
- 8 fire zones | Expandable to 12
- Black IP30-rated ABS casing
- Two-wire sounder/detector loops
- EN54-2 and EN54-4 compliant
- 331mm x 331mm x 99mm | 2.36kg
Technical Overview – 8 Zone Black Fire Alarm Panel
- 230V AC input | 24V DC nominal
- 700mA draw | 2.1A output PSU
- Standby power: 2 x 12V 3.2Ah SLA (not included)
What’s Included
- Panel keys, fuse, 6 resistors, battery leads
✅ Why Choose This Product?
The MAGDUO8B is suited for installations where maximum zone capacity and a neutral appearance are equally important.
Related Products & Other Options
For a grey finish, opt for the ESP MAGDUO8 8 Zone 2-Wire Fire Alarm Panel – Grey.
To scale down, take a look at the ESP MAGDUO4B 4 Zone 2-Wire Fire Alarm Panel – Black.
Find everything in the MAGDUO series on the MAGDUO 2-Wire Fire Alarm Systems tag.
