Espire Hardwired Input Module for Alarm Integration
Reliable Safety with ESP ES1MODV – Hardwired Interconnect Input Module for Third-Party Triggering

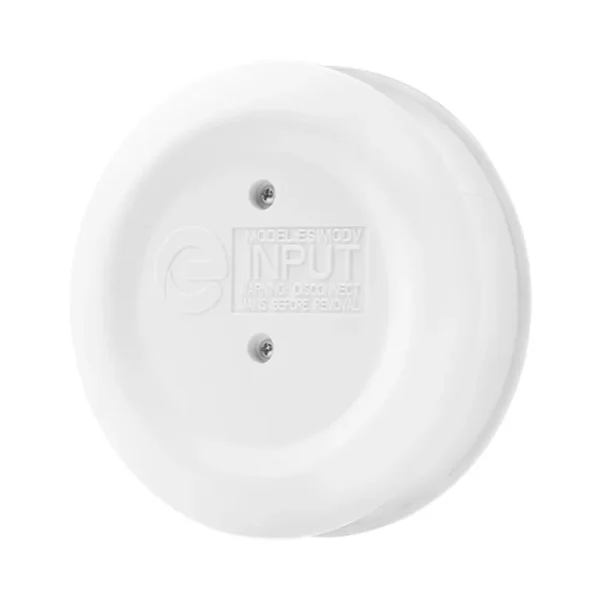

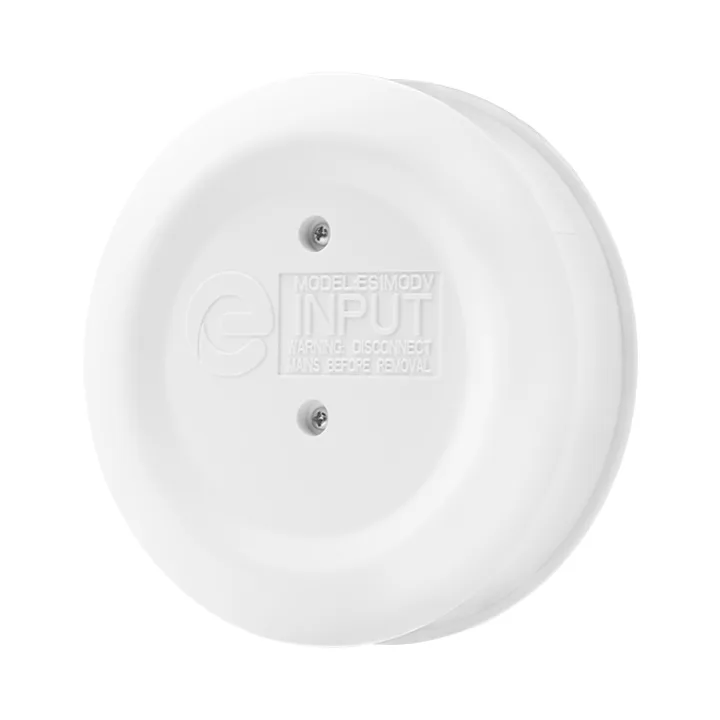

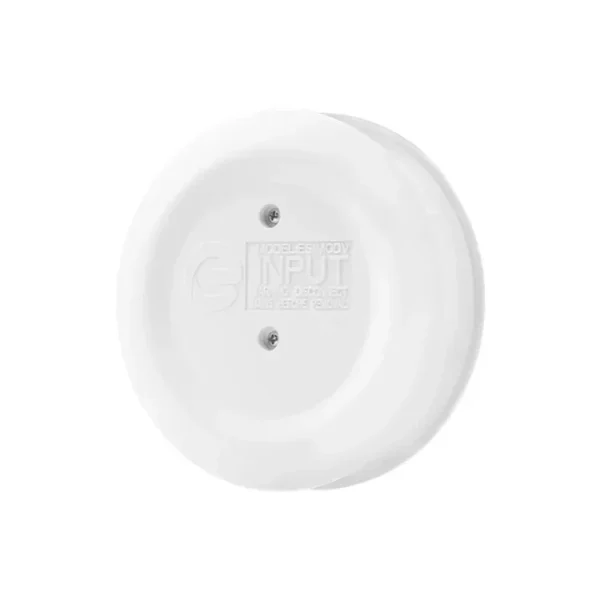

The ESP ES1MODV is a hardwired interconnect input module designed for Espire alarm systems.
It allows third-party devices such as security panels, gas sensors, or control units to trigger
a fire or carbon monoxide alarm event across connected Espire alarms.
The module is powered by 230V AC mains and includes rechargeable backup batteries for continued
operation during power loss. It operates exclusively via wired interconnect and does not support
RF-Link functionality.
Key Features – Alarm Input Module for Wired Interconnect
- Power Supply: 230V AC mains with rechargeable battery backup
- Battery Type: 2 × VL2330 lithium (non-replaceable, rechargeable)
- Interconnect: Wired only (RF-Link not supported)
- System Capacity: Triggers up to 28 wired Espire devices
- Trigger Method: Volt-free, normally open relay (short-to-trigger)
- Wiring: 0.75–2.5 mm² cable size
- Mounting: Ceiling or wall
- Operating Temperature: 0°C to +40°C
- Humidity Resistance: Up to 95% non-condensing
- Material: UV-stabilised UL94-V0 ABS
- Dimensions: Ø142 × 36.5 mm
- Warranty: 5 years
Ideal For
- Integration with gas detection or fire alarm panels
- Linking security systems to Espire alarm networks
- Retrofit projects using existing wired interconnect infrastructure
- Expanding Espire alarm systems with external control inputs
- Installations requiring reliable hardwired alarm triggering
What’s in the Box
- ESP ES1MODV input module
- Mounting kit
- Installation and user instructions
Why Choose the ESP ES1MODV?
The ESP ES1MODV provides a simple and dependable way to integrate third-party systems with Espire
wired alarm networks. It reliably triggers connected alarms through hardwired interconnect and is
backed by a 5-year manufacturer warranty.
Related Products
Need a wireless-ready alarm? Try the
ESP ES1CHLV CO & Heat Alarm.
Looking for a battery-only model? See the
ESP ES1CL CO Alarm.
Summary – Hardwired Input Module for Espire Alarms
Hardwired interconnect input module for third-party alarm triggering. Connects to Espire alarm
systems and activates up to 28 wired devices. Wired interconnect only; RF-Link is not supported.
