Description
Regulated 24V DC Power Supply with Optional Battery Backup

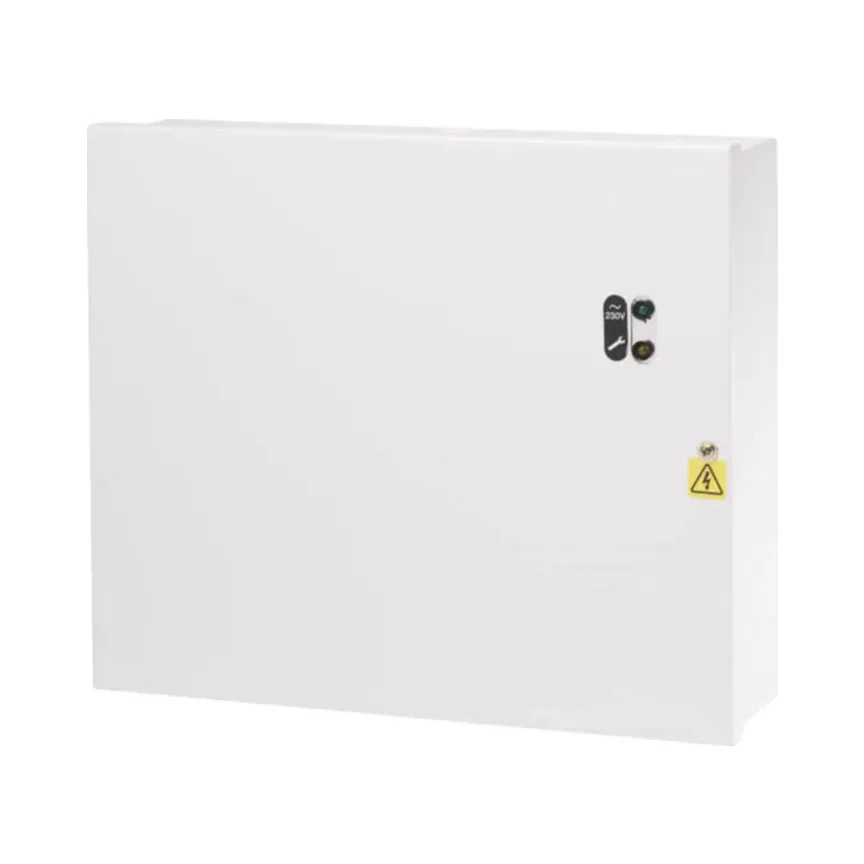

ESP BPS-1 Boxed Power Supply – 24VDC 1A with Battery Backup
The ESP BPS-1 is a boxed power supply unit delivering a regulated 24VDC at 1 Amp, designed for use in fire and security systems requiring uninterrupted low-voltage power. Housed in a compact metal enclosure, it features dual outputs and supports optional battery backup using two 12V 7Ah sealed lead acid batteries (not included).
Certified to BS EN 61000-6-1 and BS EN 61000-6-3, the BPS-1 ensures electromagnetic compatibility and stable performance. It is a reliable choice for powering control panels, sounders, detectors, or ancillary equipment across fire and access control applications.
Key Features – ESP BPS-1 24Vdc 1A Boxed Power Supply
- 24V DC regulated output at 1 Amp
- Dual output terminals
- Battery backup support – requires 2 x 12V 7Ah SLA batteries (not included)
- Wall-mount metal enclosure with secure housing
- Ideal for fire, access, or security systems
- Compliant with BS EN 61000-6-1 & BS EN 61000-6-3
- 3-year manufacturer warranty
Technical Overview – 24Vdc 1A Boxed Power Supply
- Product Code: BPS-1
- Output Voltage: 27.6V DC regulated @ 1 Amp
- Input Supply: 230V AC
- Battery Backup: Yes (2 x 12V up to 7Ah, not included)
- Number of Outputs: 2
- Enclosure Dimensions: 310mm x 340mm x 80mm
- Weight: 2.8 kg
- Standards: BS EN 61000-6-1, BS EN 61000-6-3
- Warranty: 3 years
What’s Included
- 1 x ESP BPS-1 Boxed Power Supply
- Mounting hardware
- Installation manual
✅ Why Choose This Product?
The BPS-1 is the ideal choice for powering low-voltage devices in fire and security systems where backup capability and regulated output are critical. Its simple setup, dual output design, and robust metal housing make it a practical solution for professional installers.
️ Guarantee & Compliance
Backed by a 3-year manufacturer warranty and certified to BS EN 61000-6-1 and 61000-6-3, the BPS-1 is built to meet the demands of modern compliant installations.
