Description

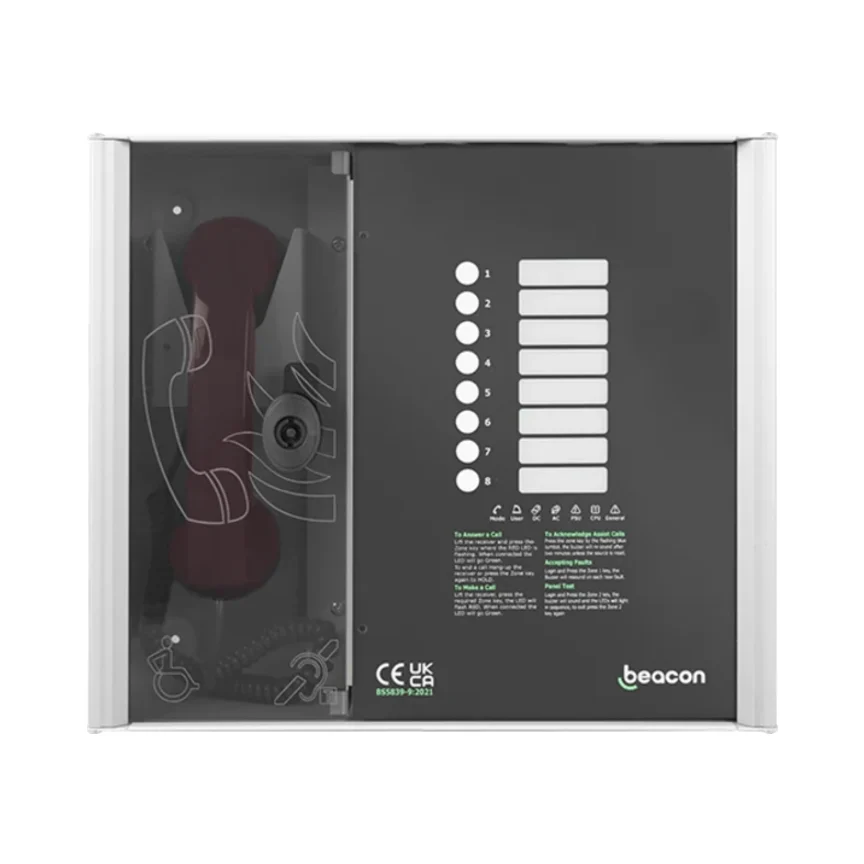

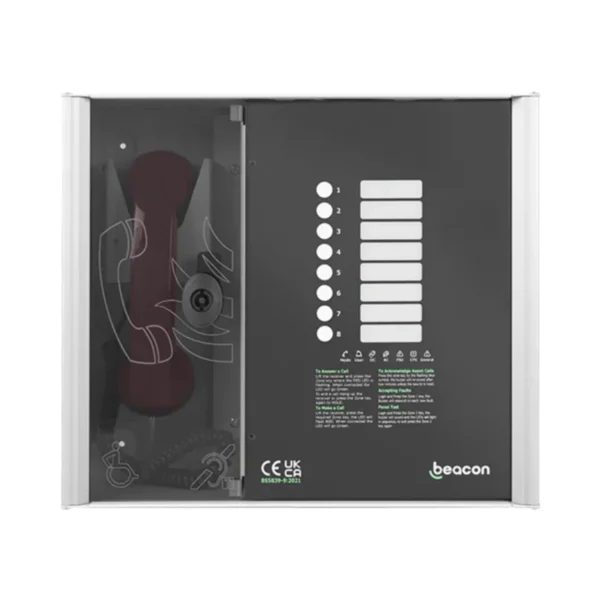

Disabled Refuge Master Station 8 Line
ESP B1M8
The ESP B1M8 Disabled Refuge Master Station 8 Line is a high-capacity, fully monitored control unit designed for large-scale emergency voice communication systems. Fully compliant with BS5839-9:2021, it provides real-time system status via dedicated LED indicators and delivers dependable performance in critical environments.
Key Features
- BS5839-9:2021 compliant for emergency communication systems
- Supports 8 communication lines without expansion modules
- 8 zone LEDs, 3 fault LEDs, and 2 supply LEDs for detailed system monitoring
- Built-in deep discharge, short circuit, and thermal protection
- Fully monitored for open circuits, shorts, fuse faults, and high impedance
- Surface or flush mounting (flush bezel required for flush installation)
Technical Overview
- Product Code: B1M8
- Dimensions: 300 x 350 x 95mm
- Finish: Black & grey
- Material: Powder-coated Zintec with smoked Perspex door
- Mounting: Surface or flush (BMSF required)
- Weight: 5.0kg
- Operating Voltage: 230V AC
- Frequency: 50/60Hz
- Internal Supply Voltages: 5V, 16V, 27V DC
- Cable Size: 1 – 1.5mm²
- Fuses: 240V 1A HRC (mains), 750mA PTC (battery)
- Standby Supply: Up to 12V 7Ah (battery not included)
- Charge Current: 400mAh
- Connection Type: Outstation cables – 1 x 2-core radial
- Max Communication Range: 500m (point-to-point)
- Alarm Zone EOL Resistance: 10kΩ
- Warranty: 2 years
What’s Included
- 1 x ESP B1M8 Master Station
- Installation hardware
- User manual
Why Choose This Product?
The B1M8 is ideal for large buildings, multi-storey facilities, and public spaces requiring reliable communication across multiple refuge points. Its comprehensive LED indicators, protective features, and direct support for eight lines make it a top choice for large installations.
Guarantee & Compliance
Supplied with a 2-year manufacturer’s warranty, the ESP B1M8 meets all UK safety and performance standards for emergency voice communication systems.
