Description
Powerful 400W Dimming with Advanced Protection

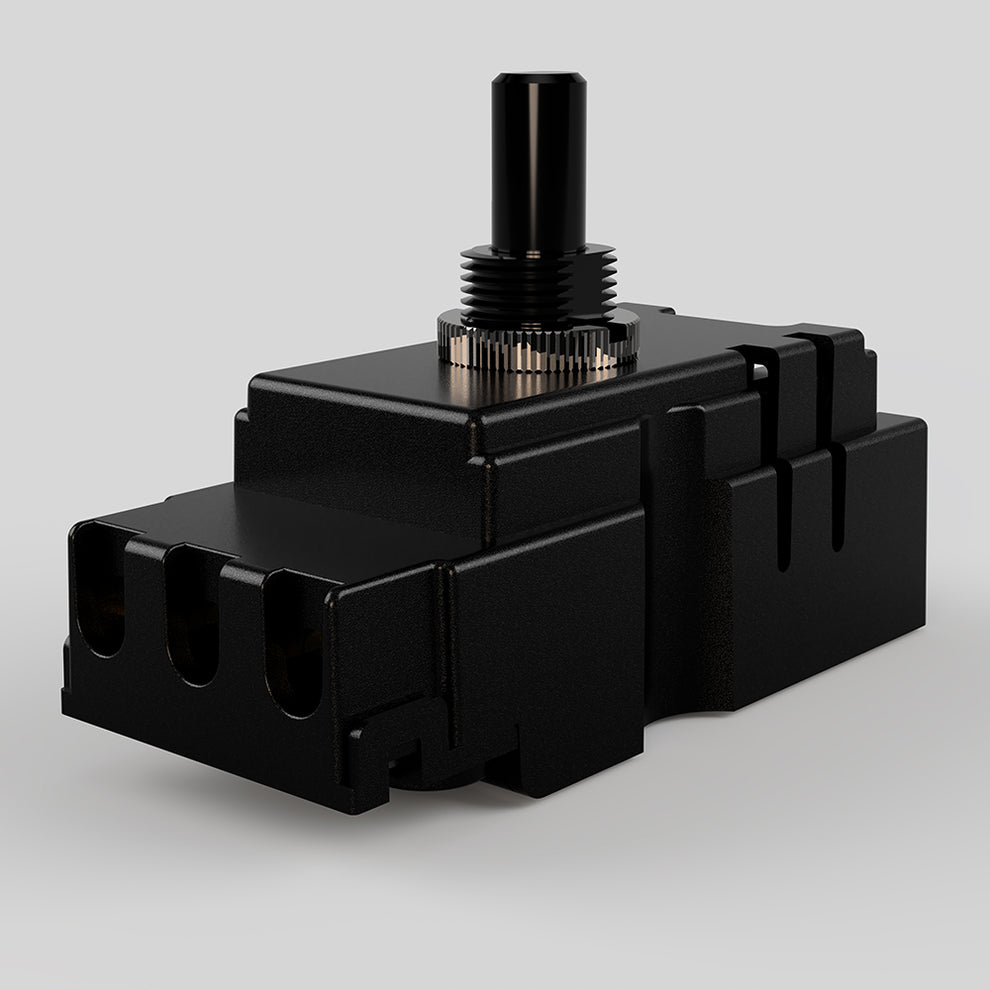

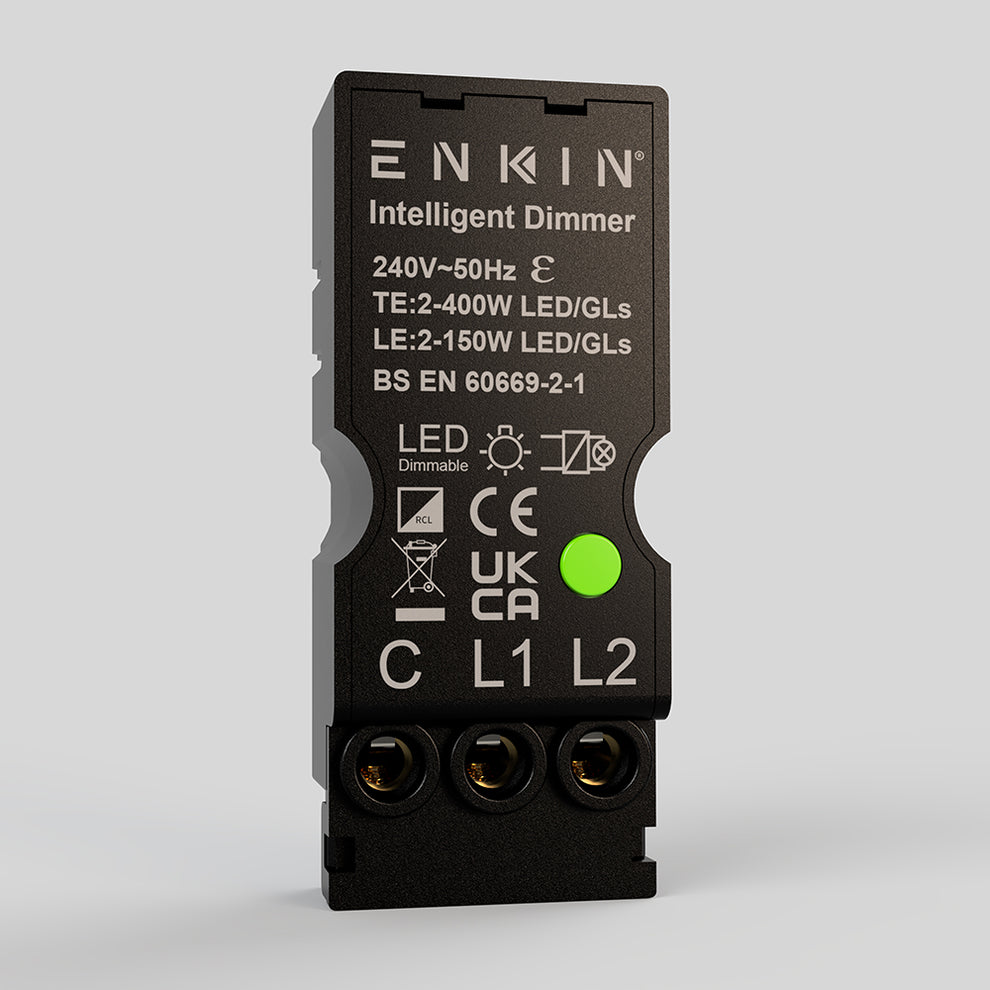

Enkin SS-EN-00-PDM400 400W Intelligent Dimmer Module – High Capacity Lighting Control
The Enkin PDM400 400W Intelligent Dimmer Module is engineered for higher load lighting circuits, allowing you to control a larger number of luminaires from a single dimmer. With an impressive 400W capacity, it eliminates the need to split lighting loads across multiple dimmers and circuits.
Designed for 220-240V AC systems, the PDM400 supports both trailing edge and leading edge phase control, offering excellent compatibility with LED, incandescent, halogen, and low voltage lighting with electronic transformers. With a minimum load of just 2W, it ensures smooth dimming even on low-powered LED circuits.
Featuring soft-start and silent, flicker-free technology, the PDM400 enhances lamp longevity and delivers comfortable lighting control. Built-in short circuit, overload, and self-recovering thermal fuse protection provide long-term reliability and safety.
Key Features – Enkin SS-EN-00-PDM400 400W Intelligent Dimmer Module
- High capacity 400W load rating
- 220-240V AC, 50Hz operation
- Trailing & leading edge phase control
- 2W minimum load (LED or incandescent/halogen)
- Soft start feature for extended lamp life
- Silent & flicker-free dimming
- Self-recovering thermal fuse protection
- Short circuit protection
- Overload and over-current protection
- Push-button setup for min/max level adjustment
- Non-volatile memory with previous state recall
- No neutral required
- 5 year guarantee
Technical Overview – Enkin SS-EN-00-PDM400 400W Intelligent Dimmer Module
- Operating voltage: 220-240V AC
- Frequency: 50Hz
- Dimming technique: Trailing & leading edge phase control
- Switch type: Two way
- Minimum load: 2W
- Maximum load: 400W LED / 400W incandescent & halogen
- Mounting box depth (min): 25mm
- IP rating: IP2XD
- Dimensions: 60.5mm x 41mm x 25mm
- Climate range: 0°C to 40°C (0-95% non-condensing)
- Compliance: CE, UKCA, BS EN 60669-2-1
- Indoor use only
- Maximum installation altitude: 2000m
Why Choose This Product?
The Enkin SS-EN-00-PDM400 400W Intelligent Dimmer Module is the ideal solution for high-load lighting installations where performance and reliability matter. Its large 400W capacity, flexible dimming modes, and built-in protection make it perfect for commercial spaces and larger residential lighting schemes.
About Enkin
Enkin develops intelligent lighting control solutions designed for installers who demand reliability, flexibility, and long-term performance. Each dimmer module combines advanced protection features with intuitive setup and premium build quality.
Guarantee & Compliance
The PDM400 complies with BS EN 60669-2-1 and carries CE and UKCA certification. All Enkin products are backed by a comprehensive 5-year guarantee.
