Advanced Multi-Way LED Dimming Without Master/Slave Systems

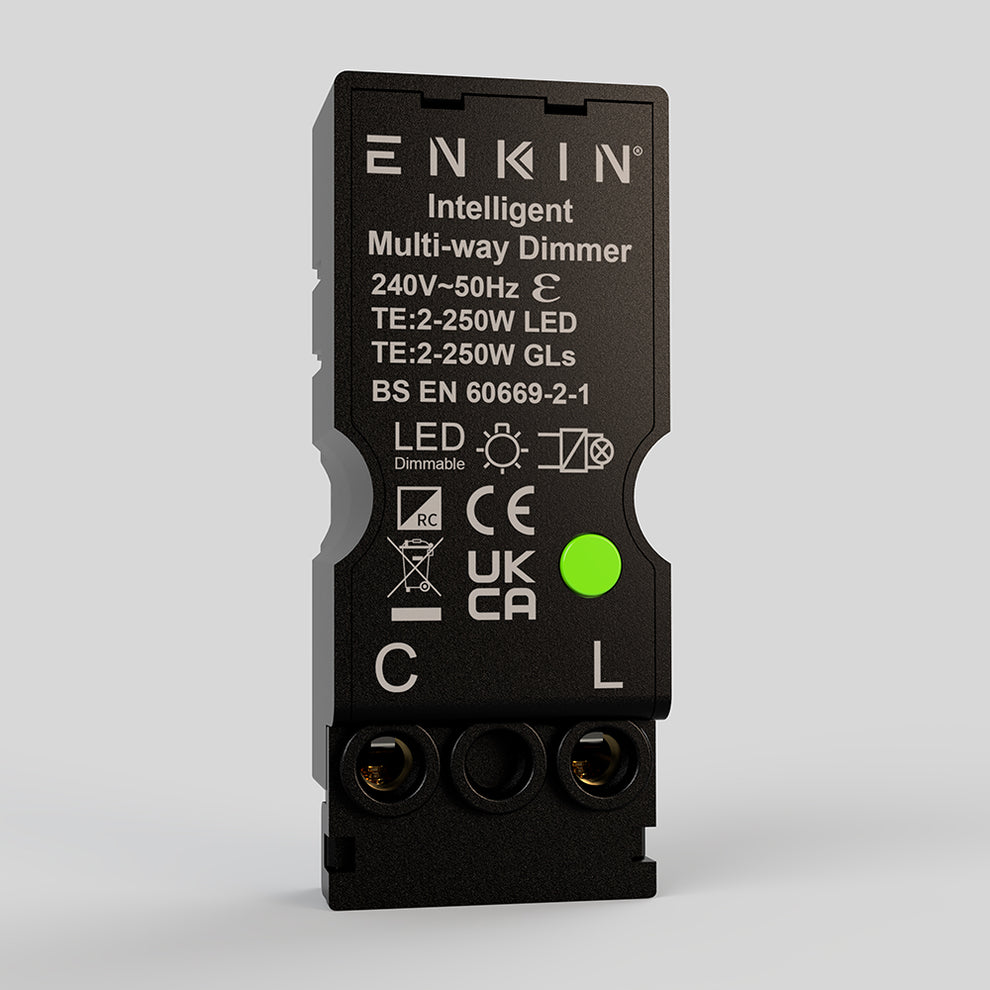

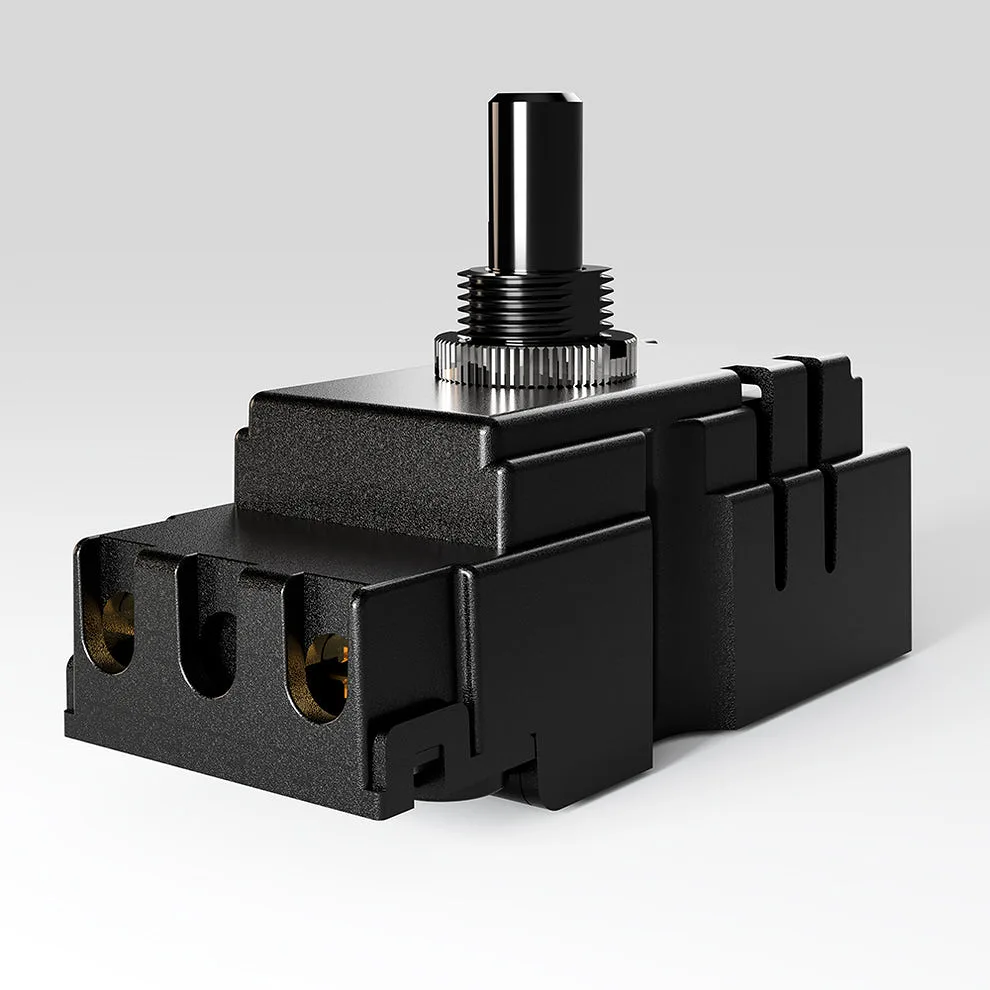

Enkin SS-EN-00-PDM250 250W Multi-Way Dimmer Module – True Multi-Point Control
The Enkin SS-EN-00-PDM250 250W Multi-Way Dimmer Module introduces first-of-its-kind technology, delivering genuine multi-way dimming without the need for a master/slave configuration. Multiple PDM250 modules can be connected in parallel, allowing seamless dimming control from up to 15 switch locations within the same room.
Designed to operate exclusively with other PDM250 units, this intelligent module ensures synchronised dimming levels across all connected switches. With a load range of 2W-250W for both LED and incandescent/halogen lighting, it provides exceptional flexibility for residential and commercial lighting schemes.
Featuring trailing edge phase control, silent and flicker-free performance, and a soft start function, the PDM250 enhances lamp longevity and user comfort. Built-in short circuit, over-current, and thermal resettable fuse protection ensure safe and reliable operation.
Key Features – Enkin SS-EN-00-PDM250 250W Intelligent Multi-Way Dimmer Module
- True multi-way dimming (up to 15 PDM250 modules)
- No master/slave system required
- 240V AC, 50Hz operation
- 2W-250W load range (LED & incandescent/halogen)
- Trailing edge phase control
- Silent & flicker-free dimming
- Soft start for extended lamp life
- Full short circuit protection
- In-built over-current protection
- Thermal resettable fuse protection
- Non-volatile memory with previous state recall
- No neutral required
- 5 year guarantee
Technical Overview – Enkin SS-EN-00-PDM250 250W Multi-Way Dimmer Module
- Operating voltage: 220-240V AC
- Frequency: 50Hz
- Dimming technique: Trailing edge phase control
- Switch type: Multi-way
- Minimum load: 2W
- Maximum load: 250W
- Mounting box depth (min): 25mm
- IP rating: IP2XD
- Dimensions: 60.5mm x 41mm x 25mm
- Climate range: 0°C to 40°C (0-95% non-condensing)
- Compliance: CE, UKCA, BS EN 60669-2-1
- Indoor use only
Why Choose This Product?
The Enkin SS-EN-00-PDM250 250W Multi-Way Dimmer Module is ideal for large rooms, open-plan spaces, and multi-access areas where flexible lighting control is essential. Its innovative multi-way technology eliminates complex master/slave wiring, delivering simple installation and perfectly synchronised dimming across every switch point.
About Enkin
Enkin develops intelligent lighting control solutions that combine installer-friendly design with advanced electronic protection. Their dimmer modules are engineered for reliability, flexibility, and long-term performance.
Guarantee & Compliance
The PDM250 complies with BS EN 60669-2-1 and carries CE and UKCA certification. All Enkin products are backed by a 5-year guarantee for complete peace of mind.
