Description

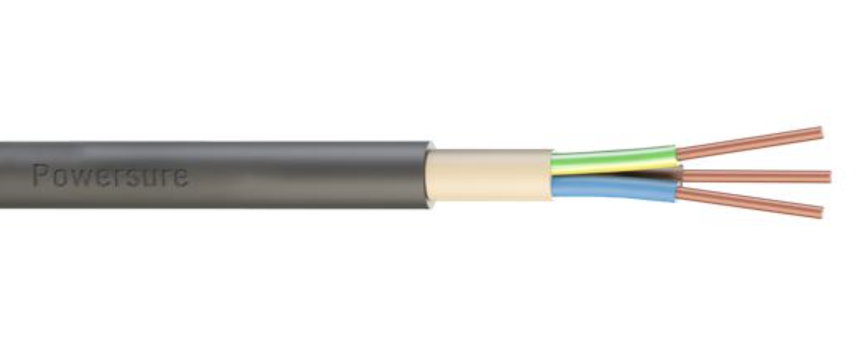

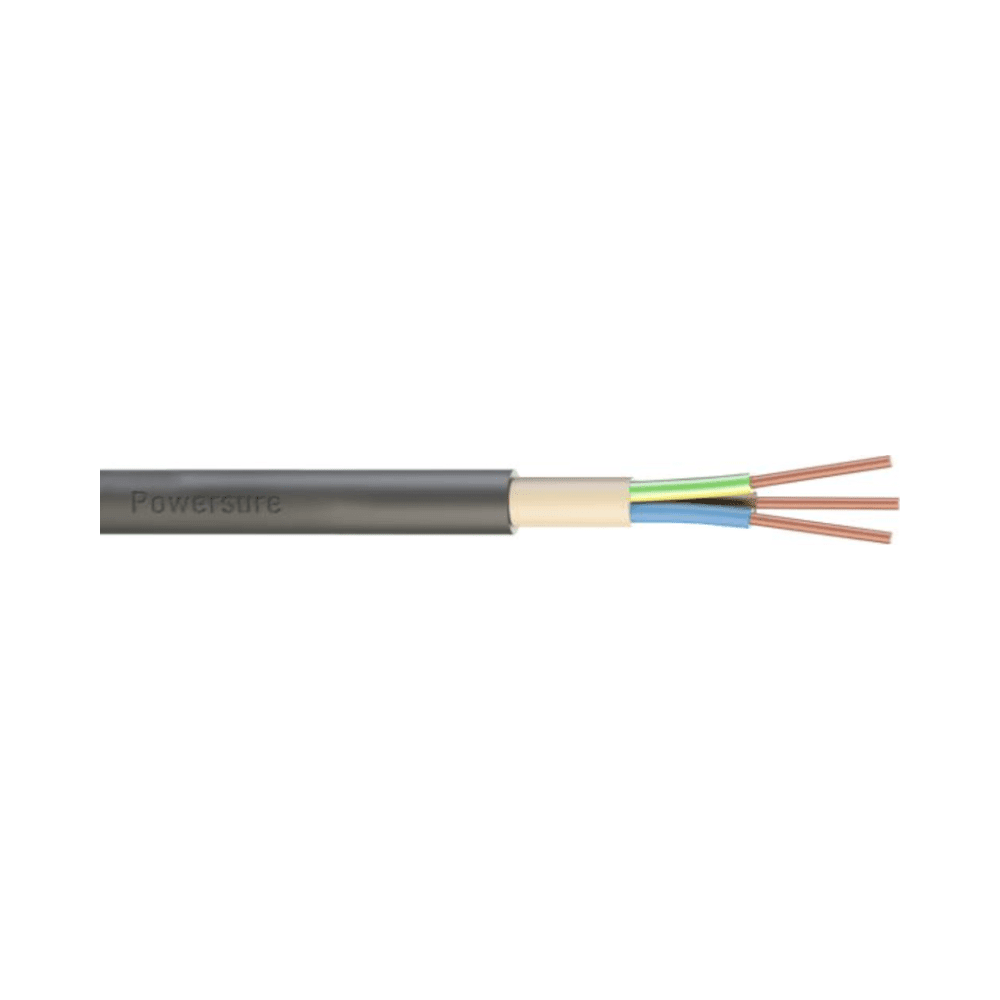

PowerSure 3 Core 4mm² NYY-J Cable – 100m
Doncaster Cables NYY3C4.0/100
Durable and UV-Stabilised Cable for Fixed Wiring Applications
The Doncaster Cables PowerSure NYY-J Cable offers exceptional performance for power and control in fixed wiring installations. Manufactured to BS EN 60502-1, this cable is designed for both indoor and outdoor use. Its UV-stabilised black PVC sheath provides superior protection, making it ideal for environments with direct sunlight exposure.
Key Features of PowerSure 3 Core 4mm² NYY-J Cable
- Conductor: Plain annealed copper, compliant with BS EN 60228.
- Insulation: High-quality PVC insulation for reliability.
- Outer Sheath: UV-stabilised black PVC sheath for enhanced durability.
- Voltage Rating: 600/1000V for a wide range of applications.
- Operating Temperatures:
- Minimum: -15°C.
- Maximum: 70°C.
- Bending Radius: Minimum 12 times the cable’s outer diameter for safe and efficient installation.
- Core Colours:
- 2 Core: Brown, Blue.
- 3 Core: Brown, Blue, Green/Yellow.
- 4 Core: Brown, Green/Yellow, Black, Grey.
- 5 Core: Brown, Blue, Green/Yellow, Black, Grey.
- Current Ratings: Refer to tables 4D2A and 4D2B in the BS7671 IET Wiring Regulations.
Product Details
NYY3C4.0 (3 Core, 4mm²)
- Nominal Insulation Thickness: 1.0mm.
- Nominal Sheath Thickness: 1.8mm.
- Approximate Overall Diameter: 13.7mm.
- Conductor Class: Class 1 (solid).
Additional sizes and configurations are available upon request. Contact us for further details about the NYY-J range.
Important Note:
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Why Choose Doncaster Cables?
Doncaster Cables is a trusted name in the electrical industry, recognised for producing the highest quality cables. Their products meet rigorous standards, ensuring reliable and long-lasting performance for a wide range of applications.
Electrical4Less is proud to be an authorised distributor of Doncaster Cables, offering PowerSure products tailored to meet your requirements.
Why Choose the PowerSure NYY-J Cable?
- Durable Design: UV-stabilised sheath ensures protection from sunlight and harsh outdoor conditions.
- Versatile Applications: Suitable for installations where mechanical stresses are minimal.
- Compliance: Fully certified to BS EN 60502-1 and BS7671 standards for safe, efficient use.
FAQs
- Q: Is this cable suitable for outdoor applications?
A: Yes, the UV-stabilised sheath makes it suitable for direct sunlight and other outdoor conditions. - Q: What is the minimum bending radius for this cable?
A: The cable must be bent with a radius of at least 12 times its overall diameter.
