Description

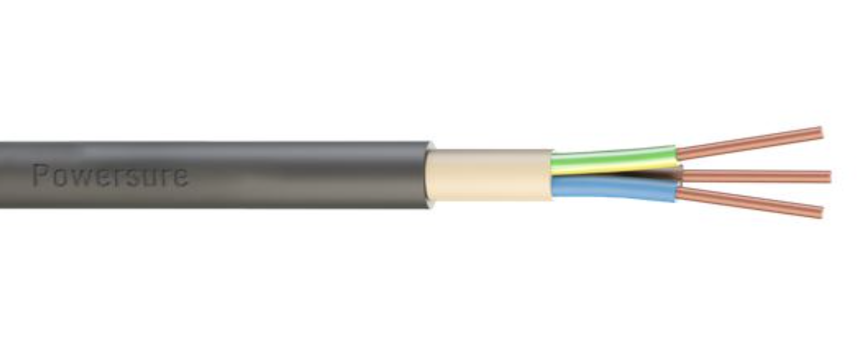

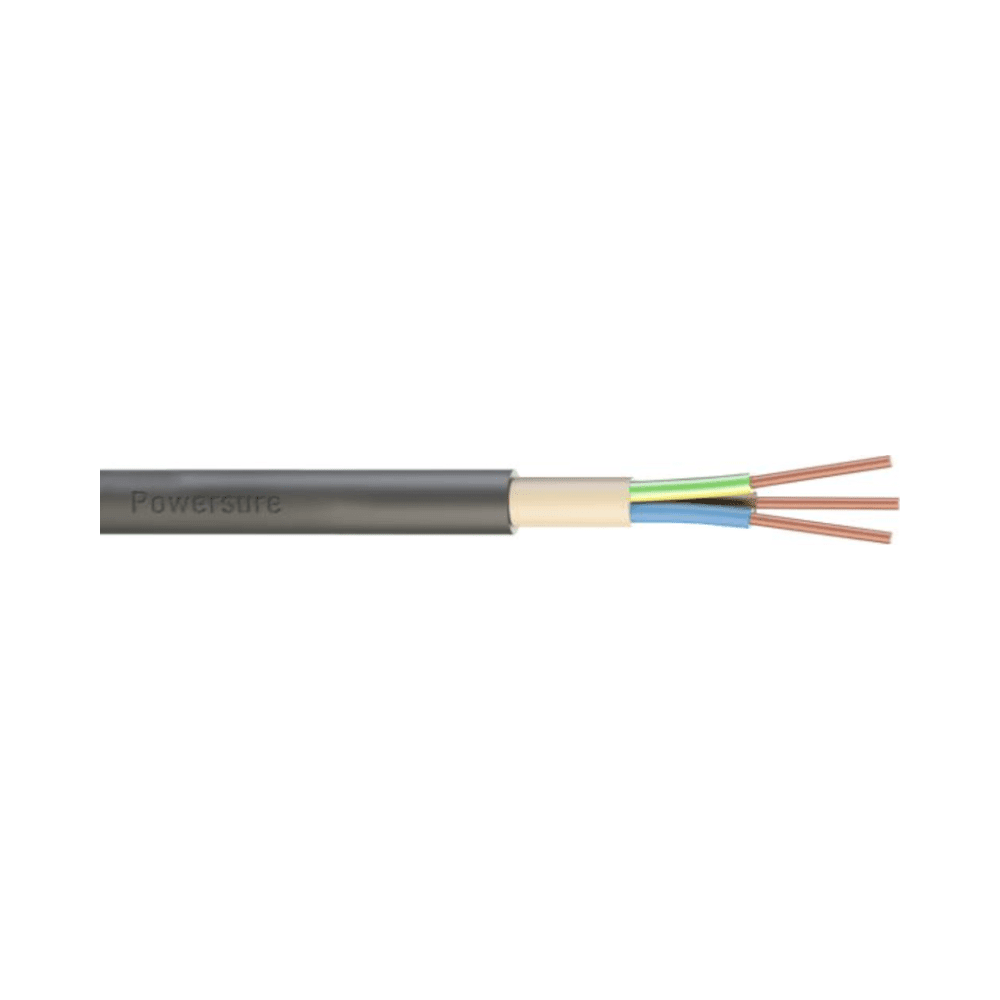

PowerSure 3 Core 1.5mm² NYY-J Cable – 100m
Doncaster Cables NYY3C1.5/100
Durable and UV-Stabilised PVC-Sheathed Cable for Fixed Wiring
The Doncaster Cables PowerSure NYY-J Cable is a high-quality solution for power and control in fixed wiring installations. Manufactured to the highest standards, this cable meets BS EN 60502-1 and is suitable for both indoor and outdoor applications. With its UV-stabilised black sheath, it ensures long-lasting performance, even in direct sunlight.
Key Features of 100m Drum – Doncaster Cables 3 Core 1.5mm NYY-J Cable
- Conductor: Plain annealed copper, compliant with BS EN 60228.
- Insulation: High-performance PVC insulation.
- Outer Sheath: UV-stabilised black PVC sheath for outdoor durability.
- Voltage Rating: 600/1000V, suitable for demanding electrical systems.
- Operating Temperatures:
- Minimum: -15°C.
- Maximum: 70°C.
- Bending Radius: Minimum 12 times the cable’s outer diameter for easy installation.
- Core Colours:
- 2 Core: Brown, Blue.
- 3 Core: Brown, Blue, Green/Yellow.
- 4 Core: Brown, Green/Yellow, Black, Grey.
- 5 Core: Brown, Blue, Green/Yellow, Black, Grey.
- Current Ratings: Refer to tables 4D2A and 4D2B in the BS7671 IET Wiring Regulations.
Product Details
NYY3C1.5 (3 Core, 1.5mm²)
- Nominal Insulation Thickness: 0.8mm.
- Nominal Sheath Thickness: 1.8mm.
- Approximate Overall Diameter: 11.0mm.
- Conductor Class: Class 1 (solid).
Other configurations and sizes are available upon request. Contact us for more details on the NYY-J range.
Important Note:
This chart and data are for guidance purposes only. Always consider the actual dimensions of the cables and glands before making a final selection. Manufacturing tolerances as per BS6121: Part 1: 1989 should be taken into account to ensure the correct fit and functionality.
Why Choose Doncaster Cables?
Doncaster Cables is recognised as a leading manufacturer of the highest quality cables, trusted by professionals across the UK and beyond. Their products are designed to meet the strictest standards, ensuring long-term reliability and superior performance for your projects.
Electrical4Less is proud to be an authorised distributor of Doncaster Cables, offering the full range of PowerSure products for a variety of applications.
Why Choose the PowerSure NYY-J Cable?
- Robust Design: UV-stabilised sheath ensures durability under sunlight and outdoor exposure.
- Flexible Applications: Ideal for installations where mechanical stresses are minimal.
- Compliance: Fully meets BS EN 60502-1 and BS7671 standards for safe and reliable performance.
FAQs
- Q: Is this cable suitable for outdoor use?
A: Yes, its UV-stabilised sheath makes it suitable for direct sunlight and outdoor applications. - Q: What is the minimum bending radius?
A: The cable requires a bending radius of at least 12 times its diameter.
Quote Enquiries for Large Projects
For large-scale projects or bulk orders, we encourage you to contact Electrical4Less for customised quotes. With our quick response times and competitive pricing, we’re here to support your project needs.
