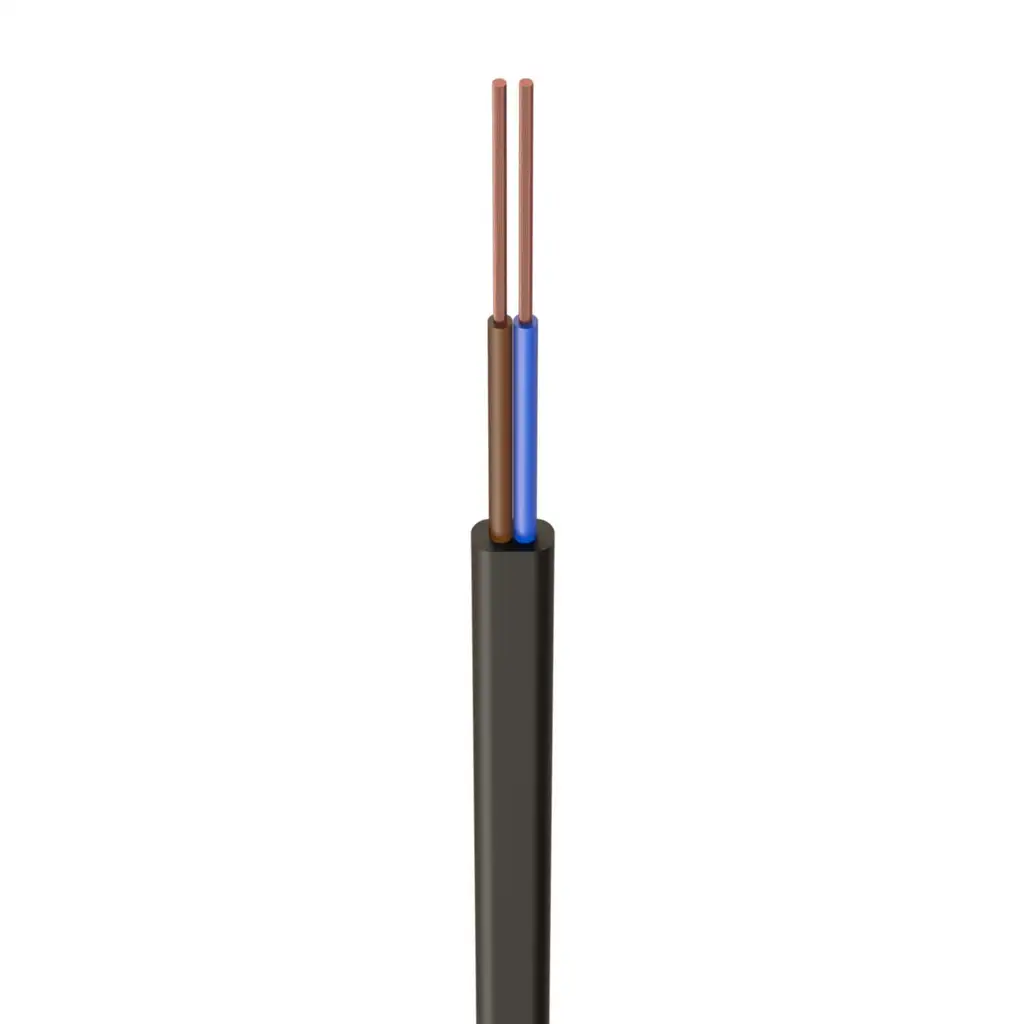

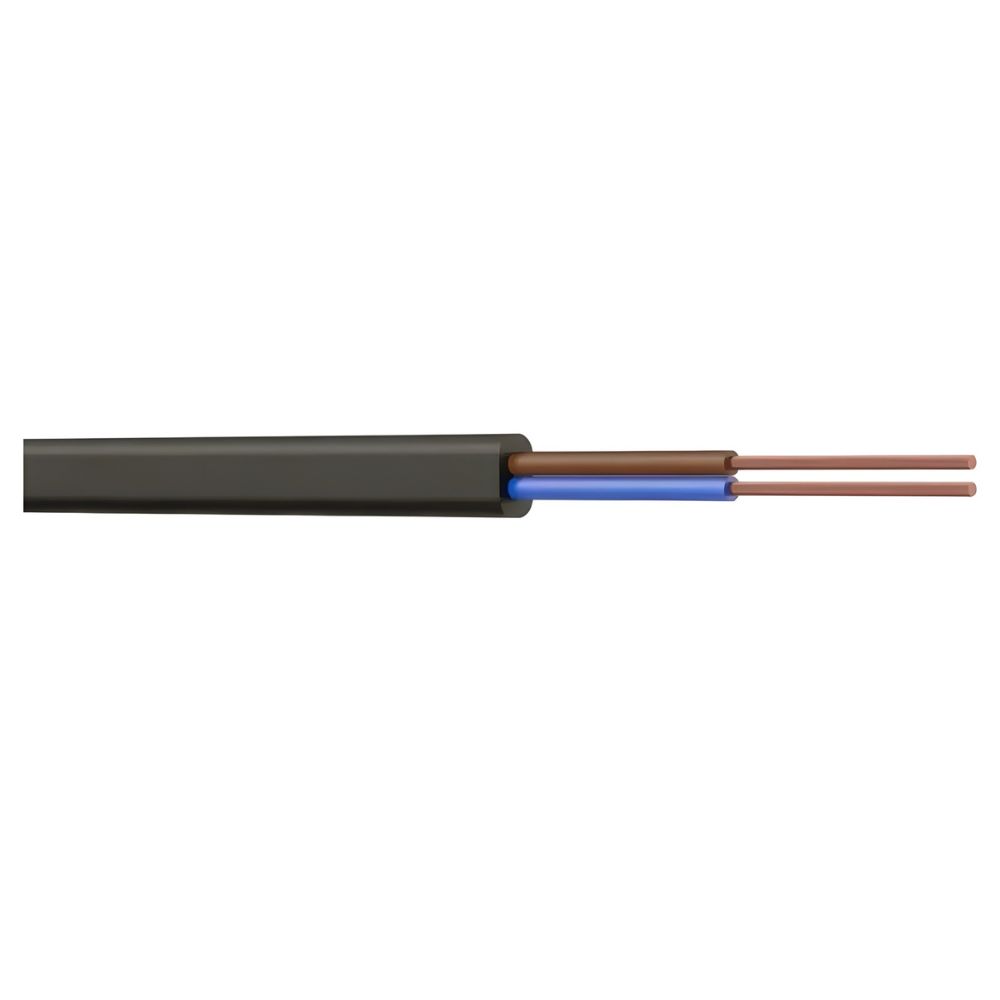

2 Core 0.75mm Black Light Duty Flat Flexible Cable – 100m Drum
Doncaster Cables 2192Y 2 Core 0.75mm Black Flexible Cable is a light duty flat parallel PVC insulated and PVC sheathed flexible cord rated at 300/300V and supplied on a 100 metre drum. This cable carries the harmonised designation H03VVH2-F and is manufactured in accordance with BS EN 50525-2-11.
Designed for applications where the risk of mechanical damage is low, this flat flexible cable is suitable for domestic and light commercial use.
Construction – Doncaster Cables 2192Y 2 Core 0.75mm Black Flexible Cable
- Conductor: Plain annealed copper, Class 5 flexible to BS EN 60228
- Nominal Cross Sectional Area: 0.75mm2
- Nominal Stranding: 24/0.2mm
- Insulation: PVC Type TI2
- Sheath: Black PVC Type TM2
- Core Identification: Brown & Blue
- Voltage Rating: 300/300V
- Maximum Operating Temperature: 70°C
- Minimum Operating Temperature: -15°C
- Minimum Bending Radius: 6 x overall diameter
Flat parallel construction provides a compact profile ideal for discreet installation and appliance leads.
Applications – Doncaster Cables 2192Y 2 Core 0.75mm Black Flexible Cable
Suitable for use with light portable appliances and equipment including:
- Table and standard lamps
- Radios and small electronic devices
- Hairdryers and styling appliances
- Light domestic equipment
For indoor use in dry environments only.
