Description
️Advanced Type B-HP RCCB Protection for Heat Pump Systems

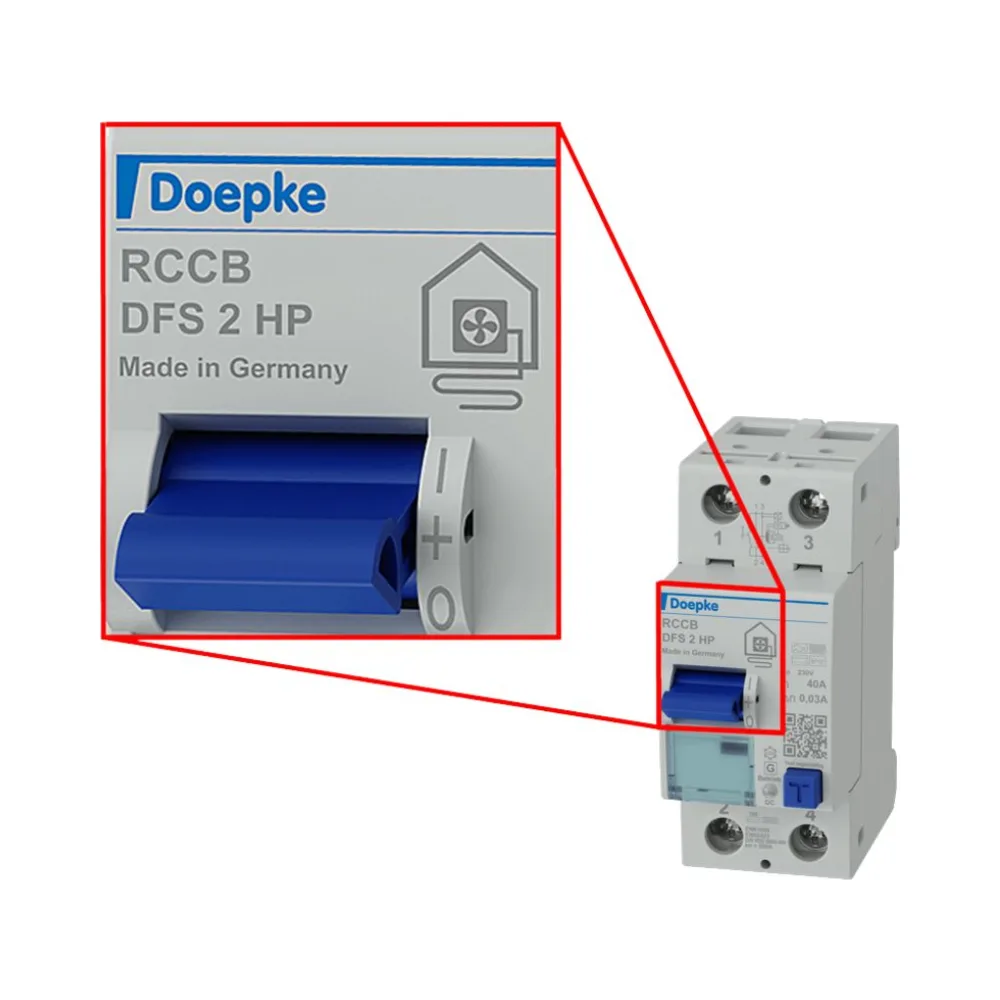

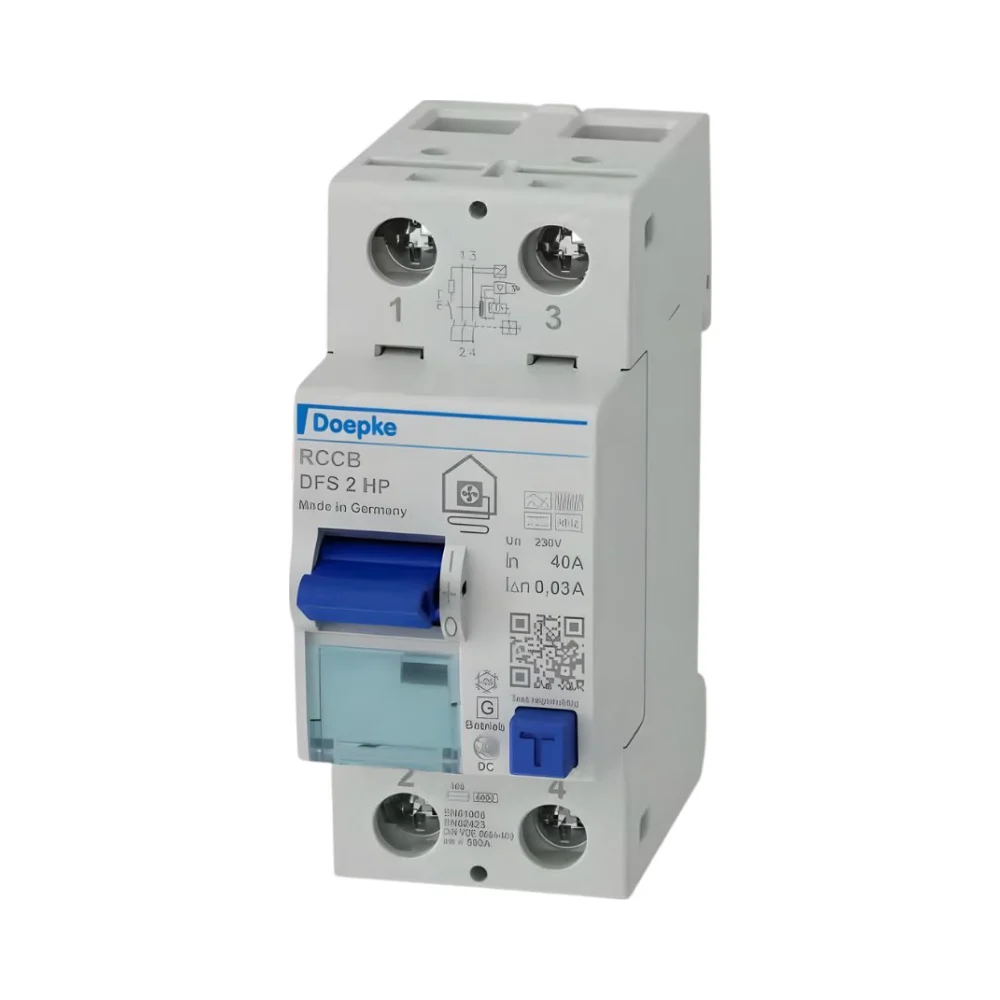

Doepke DFS2-063 63A 30mA 2 Pole Type B-HP RCCB for Heat Pumps
The Doepke 63A 30mA 2 Pole Type B-HP RCCB Heat Pump delivers advanced residual-current protection for heat pump applications. Designed for inverter-driven systems, it ensures accurate AC/DC fault detection across smooth DC and high-frequency leakage currents up to 150 kHz.
This 2 Pole-pole, 63A, 30mA RCCB combines robust Type B-HP performance with short-time delay and 3 kA surge resistance to prevent nuisance tripping, ensuring maximum uptime in domestic or commercial environments.
✨ Key Features – Doepke 63A 30mA 2 Pole Type B-HP Heat Pump RCCB
- Type B-HP RCCB – AC/DC sensitive for heat pump inverter circuits
- Operates across 0–150 kHz frequency range
- Prevents unwanted tripping with HP-optimised short-time delay
- 6 kA short-circuit strength | Surge resistance: 3 kA
- Quick DIN-rail mounting | IP40 installed | LED status indicator
- Complies with BS 7671:531.3.3 (iv) and EN 62423
Technical Overview – Doepke 63A 30mA 2 Pole Type B-HP Heat Pump RCCB
- Rated current: 63A
- Rated residual current: 30mA
- Poles: 2 Pole
- Residual current type: Type B-HP
- Voltage: 230V AC single phase
- Short-circuit rating: 6 kA | Surge resistance: 3 kA
- Protection class: IP20 (body) / IP40 (installed)
- Operating temperature: –25°C to +40°C
- Mounting: 35 mm DIN rail | Width: 36 mm (2 modules)
✅ Why Choose This Product?
Choose the Doepke 63A 30mA 2 Pole Type B-HP RCCB Heat Pump for reliable, compliant protection of inverter-driven heat pump systems. It combines frequency-sensitive detection with durable construction for consistent performance.
About Doepke
Doepke is a global leader in residual-current protection technology. Their Type B-HP RCCBs are engineered for renewable energy systems including heat pumps and EV applications.
️ Guarantee & Compliance
Doepke RCCBs comply with BS 7671, EN 61008, and EN 62423 standards, ensuring safe operation and regulatory approval for UK installations.
