Description

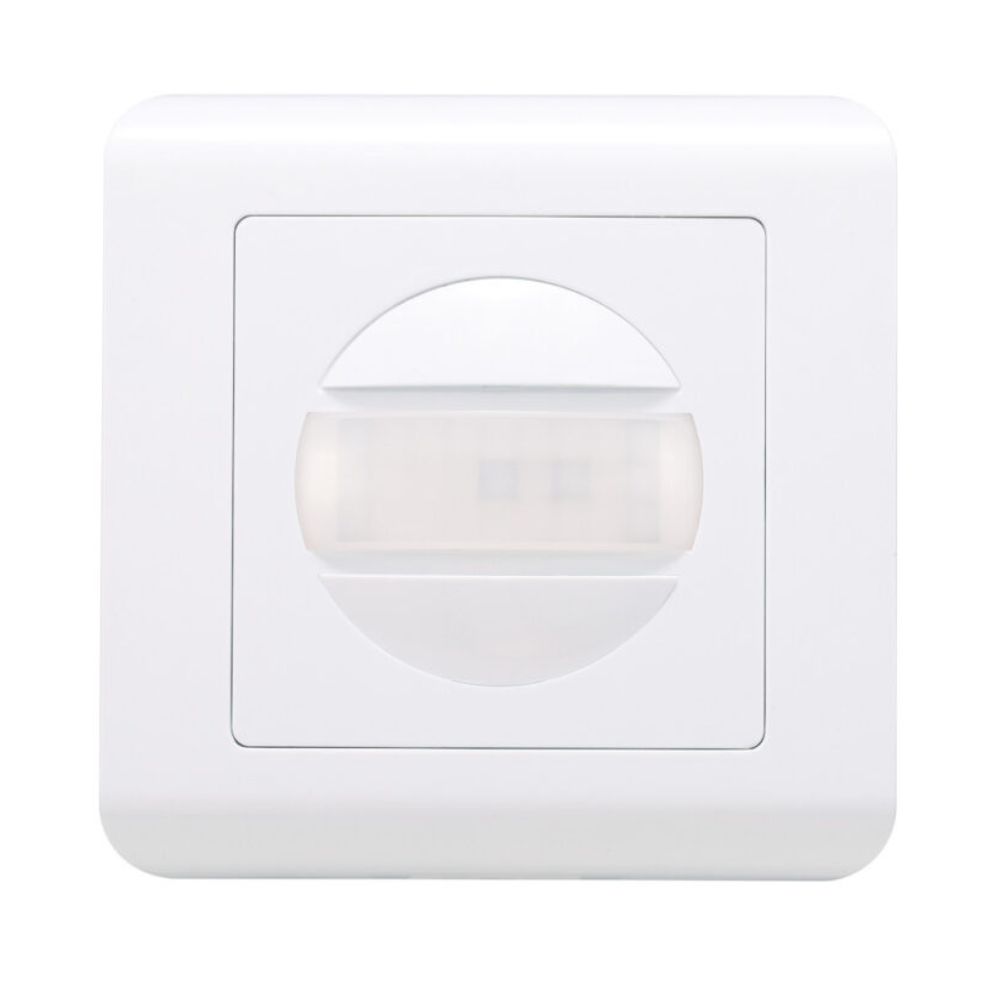

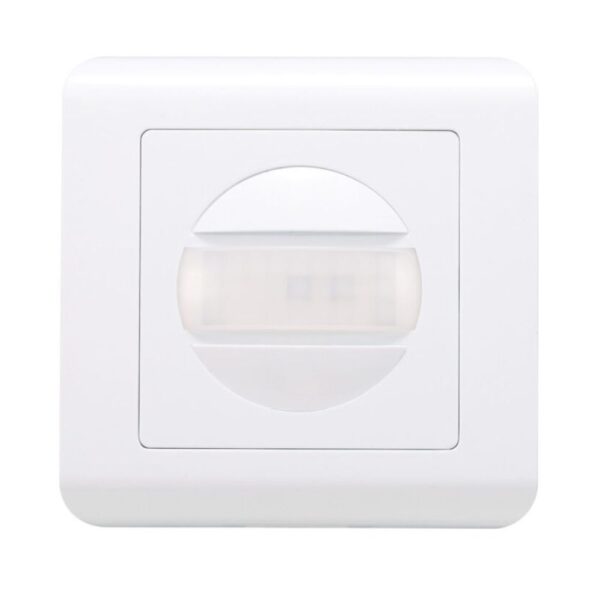

Diamond LED OS3-PW PIR Sensor Switch
The Diamond LED OS3-PW PIR Sensor Switch is a reliable no neutral PIR sensor switch designed for automatic lighting control. Built as a direct replacement for a standard light switch, it uses a 2-wire system with no neutral required, making it ideal for retrofit installations. With a detection range of up to 9 metres and a wide 160° coverage, this PIR switch ensures responsive motion detection. Suitable for loads up to 300W LED and 150W CFL, it delivers dependable performance in residential and light commercial applications.
Key Features
- No neutral PIR sensor switch (2-wire system)
- Detection range: up to 9m
- Wide 160° detection angle
- Maximum load: 300W LED / 150W CFL
- Input voltage: 220-240V
- Wall mounted or pattress installation
- Compact dimensions: 86 x 86 x 48.5 mm
- 3 year warranty
Technical Specifications
- Part Number: OS3-PW
- IP Rating: IP20
- Detection Distance: 9m
- Detection Range: 160°
- Voltage: 220-240V
- Load Capacity: 300W LED / 150W CFL
- Installation Type: Wall mounted / pattress
- Wiring: No neutral required
- Dimensions: 86 x 86 x 48.5 mm
- Warranty: 3 years
About Diamond LED
Diamond LED is a trusted brand delivering reliable and energy-efficient lighting solutions for professional electricians and installers. Known for practical design and consistent performance, their products are built to meet the demands of modern electrical installations.
