T5-Branch Solar Connector – 4mm | 30A | 1000V DC

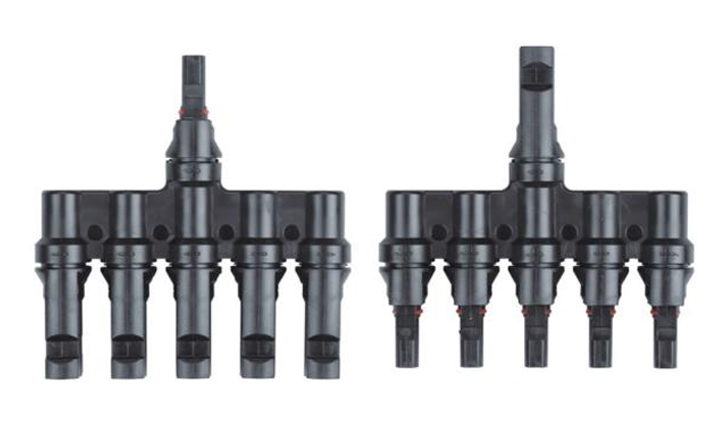

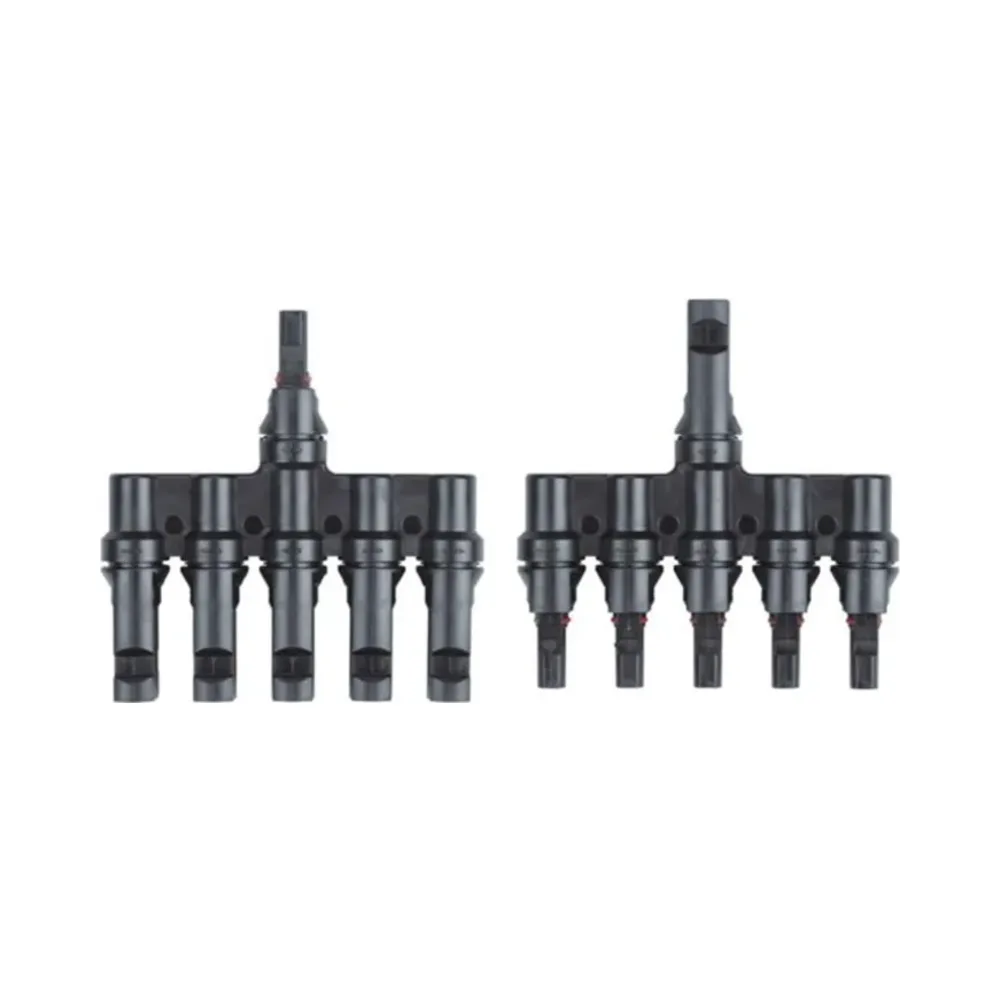

Deligo T5-Branch Solar Connector
Deligo T5-Branch Solar Connector is engineered for safe and efficient branching of photovoltaic circuits in solar PV installations. Suitable for Ø4mm pin systems, it allows secure distribution of DC power while maintaining electrical performance and system integrity.
Rated at 30A and up to 1000V DC (TÜV) or 600V DC (UL), the connector is designed for reliable operation in harsh outdoor environments. Tin-plated copper contacts deliver excellent conductivity with low contact resistance, ensuring efficient power transfer and long-term reliability.
The high-strength PPO insulation housing provides flame resistance and mechanical durability, while IP67-rated sealing protects against dust and water ingress. The Deligo T5-Branch Solar Connector is ideal for residential, commercial and industrial photovoltaic installations requiring dependable and compliant branching solutions.
Key Features – Deligo T5-Branch Solar Connector
- T5-branch solar connector for PV systems
- Suitable for Ø4mm pin dimensions
- Rated current: 30A
- Rated voltage: 1000V DC (TÜV), 600V DC (UL)
- IP67 environmental protection
- Low contact resistance for efficient power transfer
- Flame-retardant PPO insulation housing
- Designed for outdoor solar installations

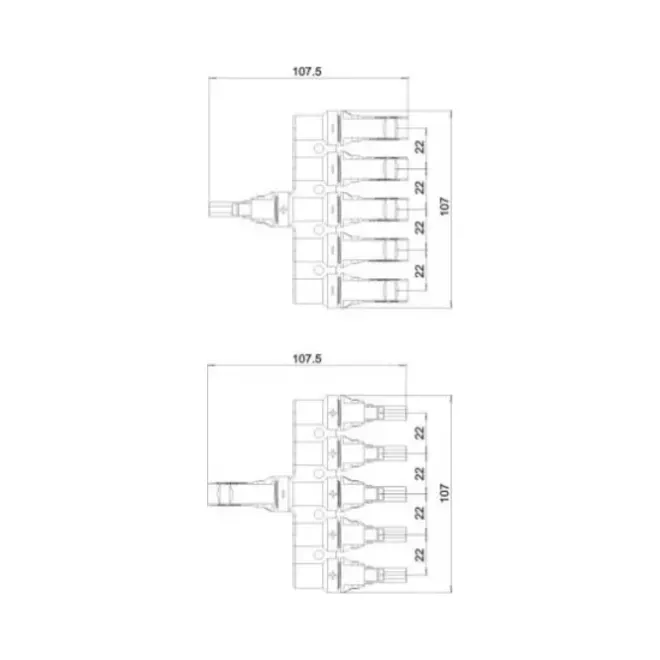

Technical Specification – Deligo T5-Branch Solar Connector
- Pin Dimensions: Ø4mm
- Suitable Current: 30A
- Rated Voltage: 1000V DC (TÜV), 600V DC (UL)
- Test Voltage: 6kV (TÜV, 50Hz, 1 min)
- Contact Resistance: <0.5 mΩ
- Degree of Protection: IP67
- Ambient Temperature Range: -40°C to +85°C
- Safety Class: II
- Contact Material: Copper, Tin Plated
- Insulation Material: PPO
- Flame Class: UL94-V0
