Description
T4-Branch Solar Connector – 4mm | 30A | 1000V DC

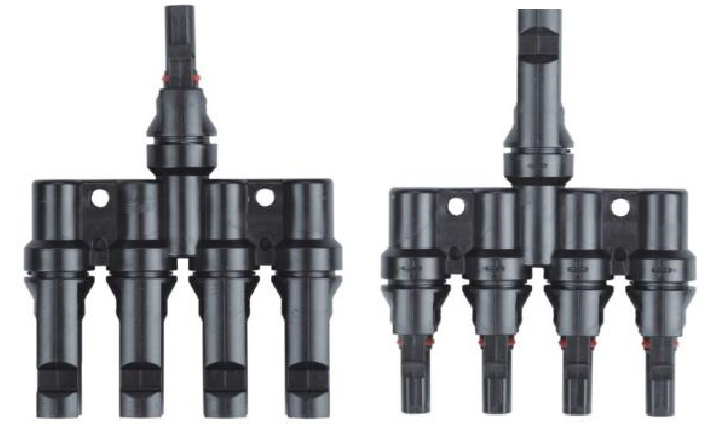

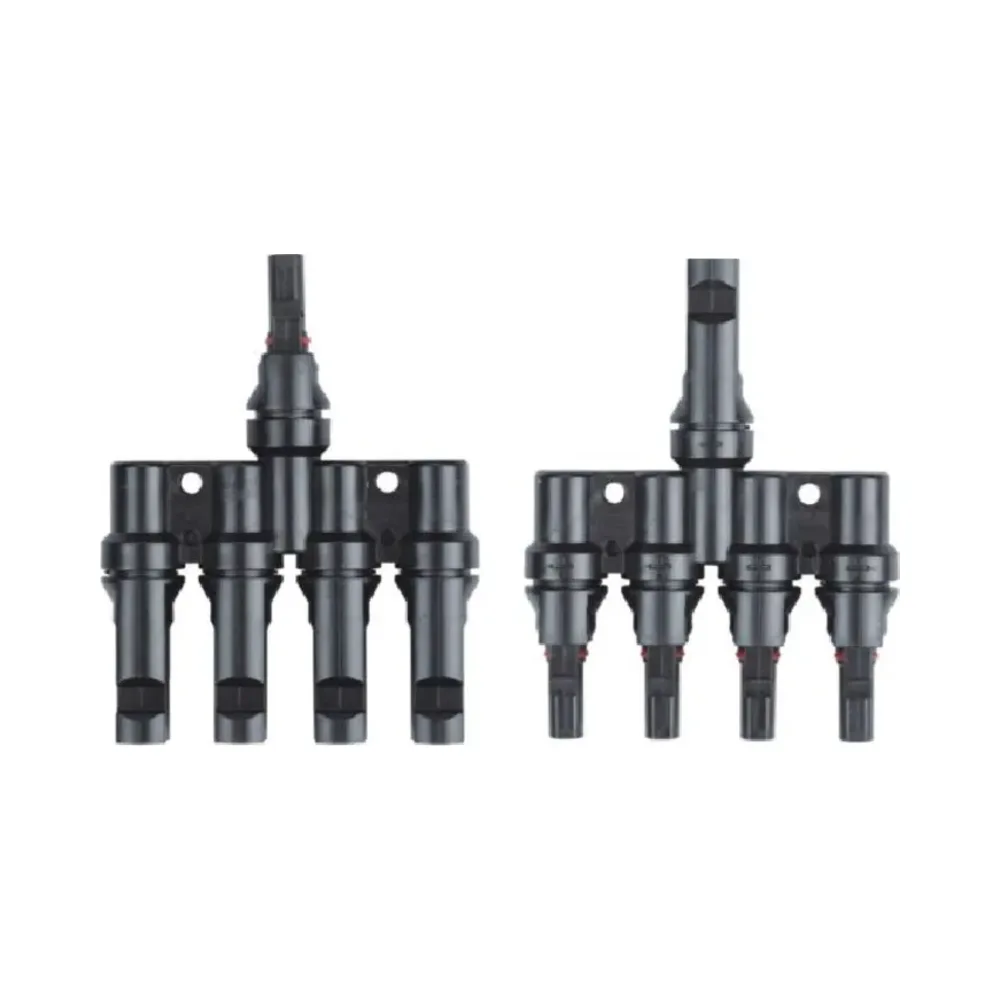

Deligo T4-Branch Solar Connector
Deligo T4-Branch Solar Connector is engineered for safe and efficient branching of photovoltaic circuits in solar PV installations. Suitable for Ø4mm pin systems, it enables secure distribution of DC power while maintaining system integrity and electrical performance.
Rated at 30A and up to 1000V DC (TÜV) or 600V DC (UL), the connector is designed to perform reliably in harsh outdoor environments. Tin-plated copper contacts ensure excellent conductivity with low contact resistance, supporting efficient power transfer and long-term operational stability.
The high-strength PPO insulation housing provides flame resistance and mechanical durability, while IP67-rated sealing protects against dust and water ingress. The Deligo T4-Branch Solar Connector is ideal for residential, commercial and industrial photovoltaic installations requiring robust and compliant branching solutions.
Key Features – Deligo T4-Branch Solar Connector
- T4-branch solar connector for PV systems
- Suitable for Ø4mm pin dimensions
- Rated current: 30A
- Rated voltage: 1000V DC (TÜV), 600V DC (UL)
- IP67 environmental protection
- Low contact resistance for efficient power transfer
- Flame-retardant PPO insulation housing
- Designed for outdoor solar installations
Technical Specification – Deligo T4-Branch Solar Connector
- Pin Dimensions: Ø4mm
- Suitable Current: 30A
- Rated Voltage: 1000V DC (TÜV), 600V DC (UL)
- Test Voltage: 6kV (TÜV, 50Hz, 1 min)
- Contact Resistance: <0.5 mΩ
- Degree of Protection: IP67
- Ambient Temperature Range: -40°C to +85°C
- Safety Class: II
- Contact Material: Copper, Tin Plated
- Insulation Material: PPO
- Flame Class: UL94-V0
