T2-Branch Solar Connector – 4mm | 30A | 1000V DC

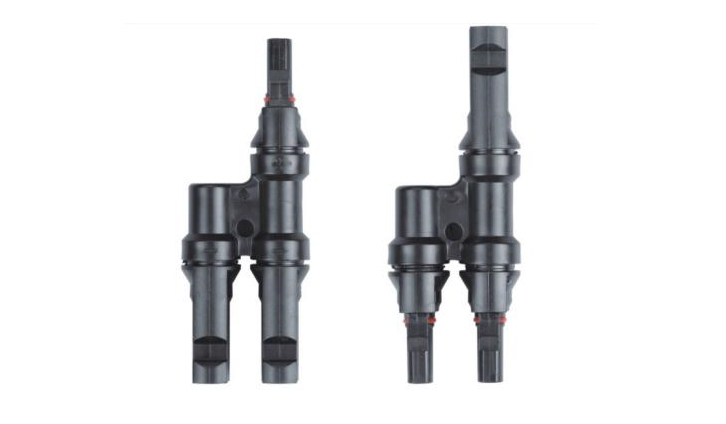

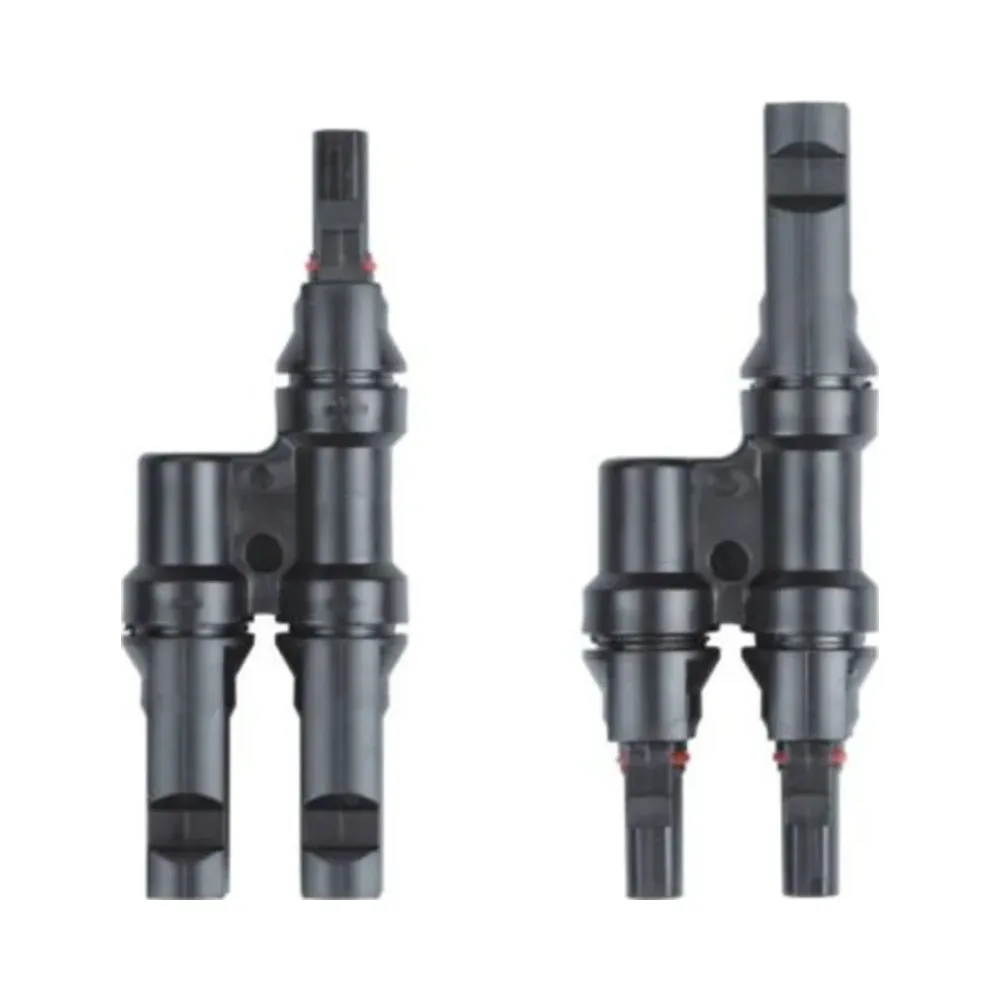

Deligo T2-Branch Solar Connector
Deligo T2-Branch Solar Connector is designed for safe and efficient branching of photovoltaic circuits in solar PV installations. Suitable for Ø4mm pin systems, it allows reliable distribution of DC power while maintaining system integrity and electrical performance.
Rated at 30A and up to 1000V DC (TÜV) or 600V DC (UL), the connector is engineered for demanding outdoor environments. Tin-plated copper contacts provide excellent conductivity and low contact resistance, supporting efficient power transfer and long-term reliability.
The robust PPO insulation housing offers high mechanical strength and flame resistance, while the IP67-rated sealing ensures protection against dust and water ingress. Designed for professional use, the Deligo T2-Branch Solar Connector is ideal for residential, commercial and industrial photovoltaic systems.
Key Features – Deligo T2-Branch Solar Connector
- T2-branch solar connector for PV systems
- Suitable for Ø4mm pin dimensions
- Rated current: 30A
- Rated voltage: 1000V DC (TÜV), 600V DC (UL)
- IP67 environmental protection
- Low contact resistance for efficient energy transfer
- Flame-retardant insulation housing
- Designed for outdoor solar installations
Technical Specification – Deligo T2-Branch Solar Connector
- Pin Dimensions: Ø4mm
- Suitable Current: 30A
- Rated Voltage: 1000V DC (TÜV), 600V DC (UL)
- Test Voltage: 6kV (TÜV, 50Hz, 1 min)
- Contact Resistance: <0.5 mΩ
- Degree of Protection: IP67
- Ambient Temperature Range: -40°C to +85°C
- Safety Class: II
- Contact Material: Copper, Tin Plated
- Insulation Material: PPO
- Flame Class: UL94-V0
