Description
Reliable 20A Modular Contactor for High-Power Switching

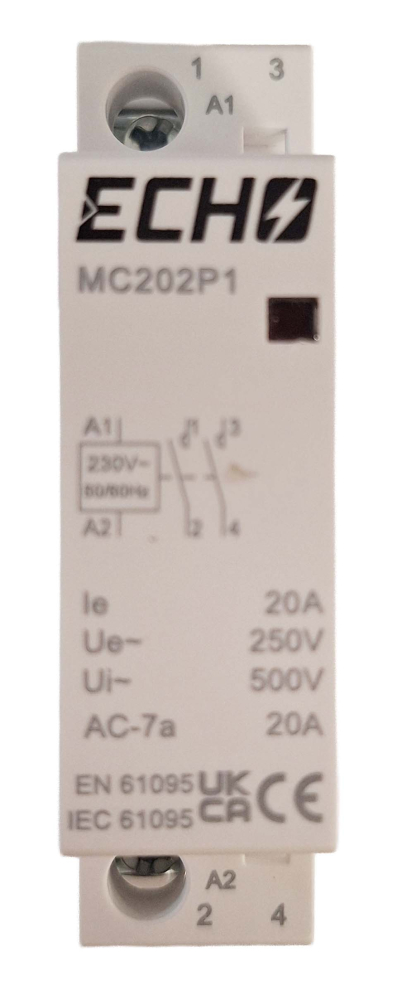

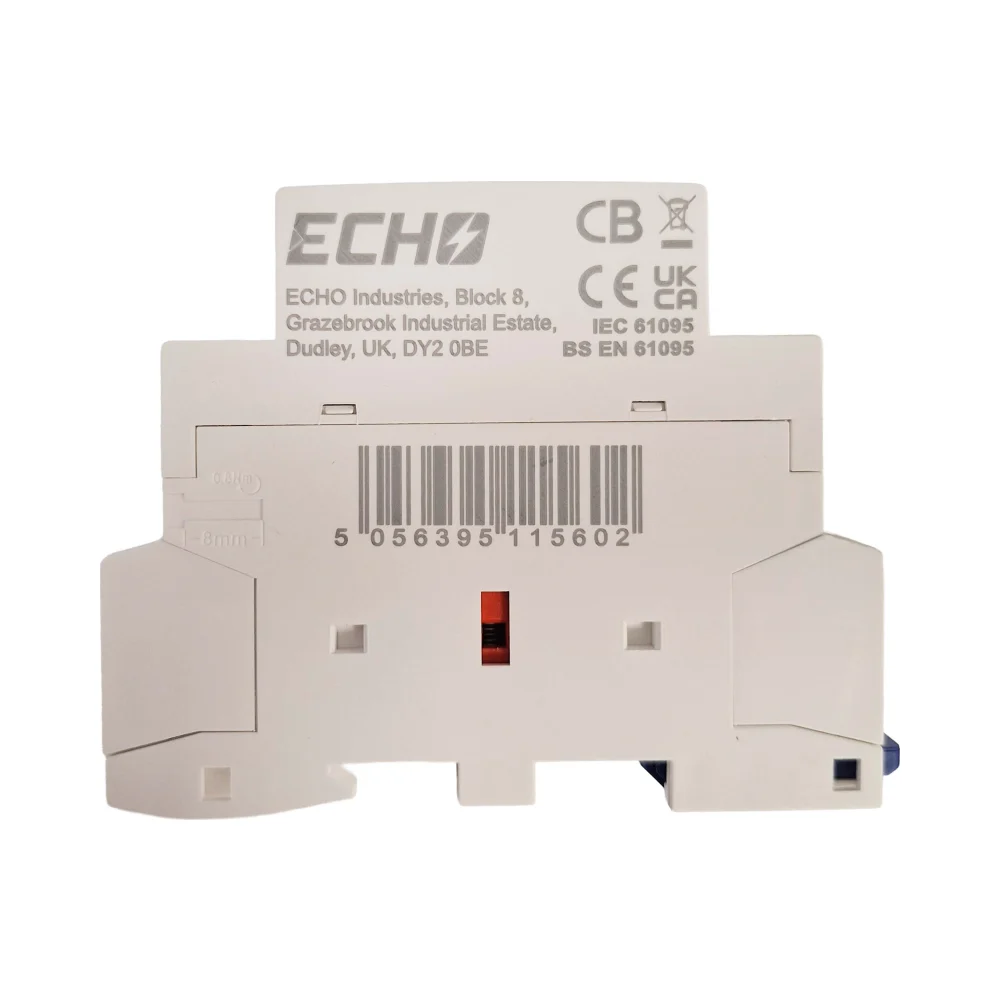

Deligo MC202P1 2NO 20A 230V AC Modular Contactor
The Deligo MC202P1 2NO 20A 230V AC Modular Contactor is engineered for reliable control of high-power circuits in commercial and industrial installations. Rated at 20A AC1 with a 230V AC coil, it ensures consistent switching performance across demanding applications.
This compact 1-module (18mm) contactor features 2 normally open (2NO) contacts, making it ideal for single-phase load control within distribution boards and modular control panels. Its DIN rail compatible design allows for straightforward installation in modern electrical enclosures.
Key Features – Deligo MC202P1 2NO 20A 230V AC Modular Contactor
- 20A rated operational current (AC1)
- 2 Normally Open (2NO) contacts
- 230V AC coil voltage
- Single module width (18mm)
- Designed for industrial and commercial control panels
- DIN rail mounting compatible
- Requires modular blanks (EBWB) for correct heat dissipation
Technical Overview – Deligo MC202P1 2NO 20A 230V AC Modular Contactor
- Rated current (AC1): 20A
- Rated operational voltage (Ue): 230–240V AC
- Coil voltage: 230V AC
- Configuration: 2NO (2 Normally Open)
- Poles: 2
- Modules: 1 (18mm width)
- Rated terminal capacity (supply): 1.5 – 10mm²
- Rated terminal capacity (coil): 0.75 – 2.5mm²
Why Choose This Product?
The MC202P1 delivers dependable 20A AC1 switching in a compact modular format. Its 2NO configuration and 230V AC coil make it a practical solution for efficient load control in professional electrical installations.
About Deligo
Deligo supplies professional-grade electrical components and accessories for wholesalers and installers. Their modular contactor range is built to meet the demands of modern commercial and industrial environments.
Guarantee & Compliance
Deligo modular contactors are manufactured in accordance with current electrical standards. Installations must comply with IET Wiring Regulations and all applicable health and safety legislation.
