Description

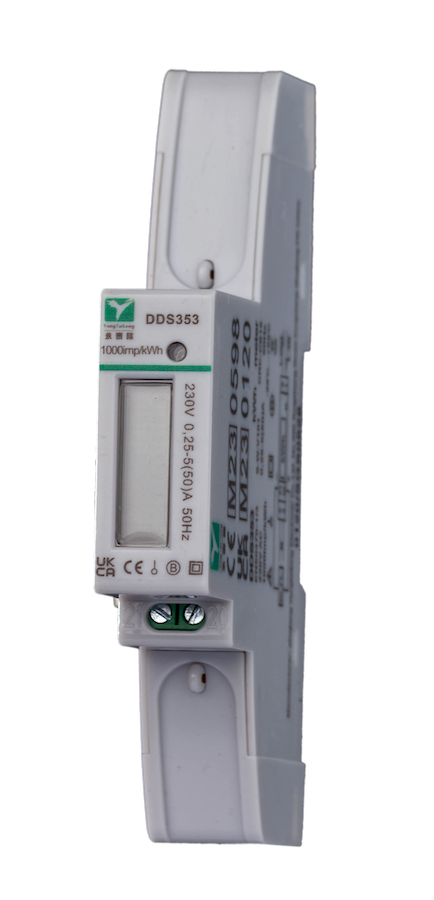

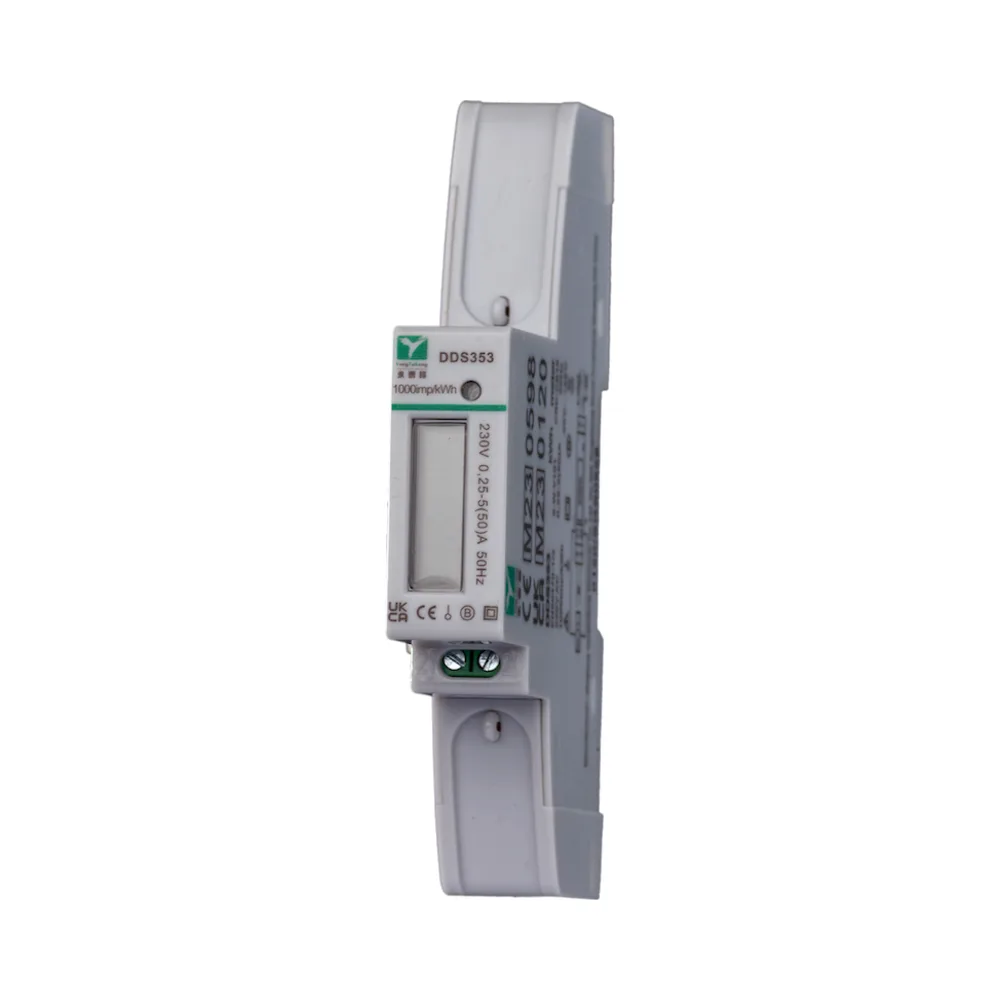

45A Direct Connected MID Certified kWh Meter
Whitecliffe Electrical DDS353
The DDS353 45A Direct Connected kWh Meter is a compact, modern energy meter designed to measure and display Active Energy (kWh). This versatile meter is MID B+D certified, ensuring high accuracy and reliability for energy measurement in residential, commercial, and light industrial settings. It is housed in a DIN rail-mounted module for easy installation, and its clear LCD display shows energy consumption up to 99999.99kWh.
In addition, the DDS353 comes with a single pulse output, allowing integration with external systems for monitoring or data collection. This single-phase, 45A direct-connected meter offers seamless performance with 230V rated voltage and 1000 impulses per kWh, ensuring precise energy tracking.
Key Features of DDS353 45A Direct Connected MID Certified kWh Meter
- MID B+D certified for accurate energy measurement
- Single-phase, 45A direct connection for easy installation
- Rated voltage: 230V
- Compact DIN rail-mounted design for space-saving installation
- LCD display (5+2) showing energy up to 99999.99kWh
- Impulse Constant: 1000 imp/kWh for precision tracking
- Bi-directional energy measurement (Import + Export) in advanced models
- Single pulse output for system integration
Specifications:
- Rated Voltage: 230V
- Rated Current: 0.25-5(45)A, Max 45 Amps
- Frequency: 50Hz/60Hz
- Accuracy Class: B
- Power Consumption: <10VA, <1W
- LCD Display: 5+2 digits (99999.99kWh)
- Operating Temperature: -25°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity Range: 75% average, 95% maximum (non-condensing)
- Mounting: DIN rail (EN 60715, 35mm)
- Impulse Indication: LED flash, pulse width = 80ms
This energy meter is ideal for measuring both import and export energy in a single-phase system. With its compact design and reliable performance, the DDS353 ensures accurate and consistent energy monitoring.
