Description

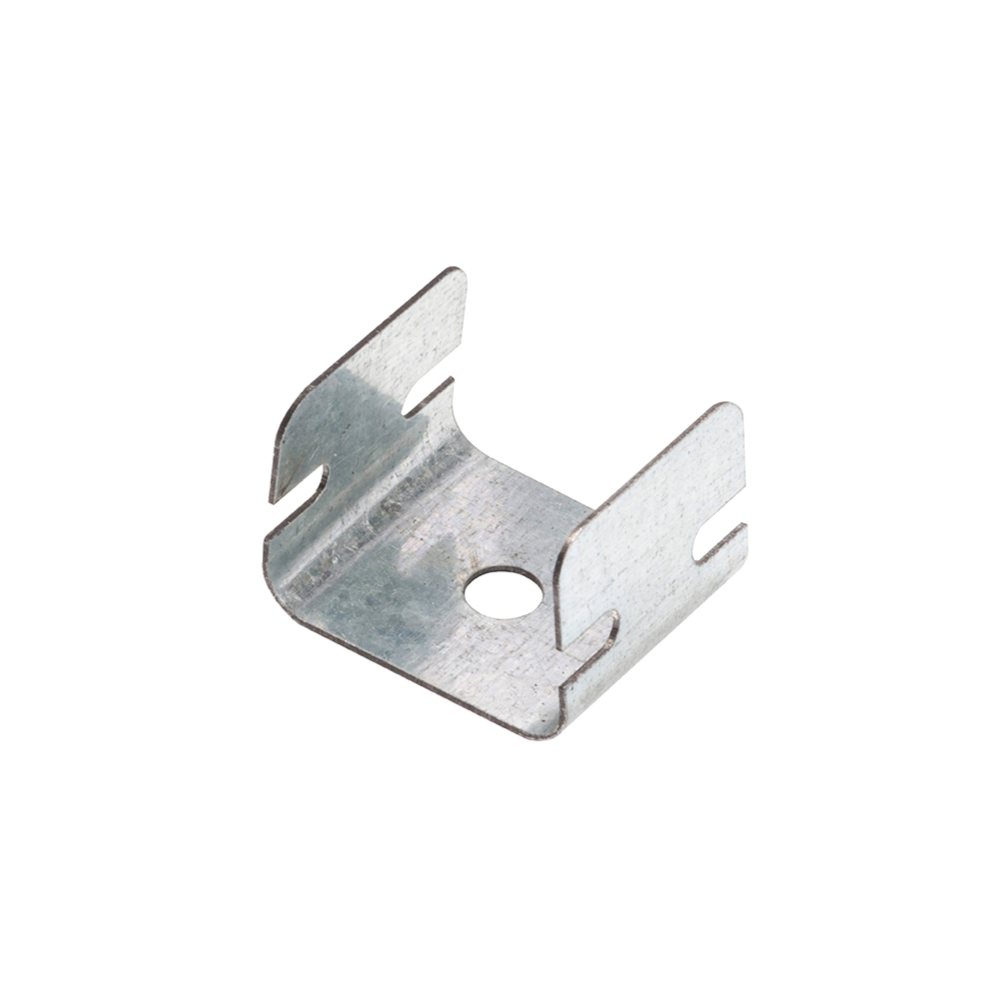

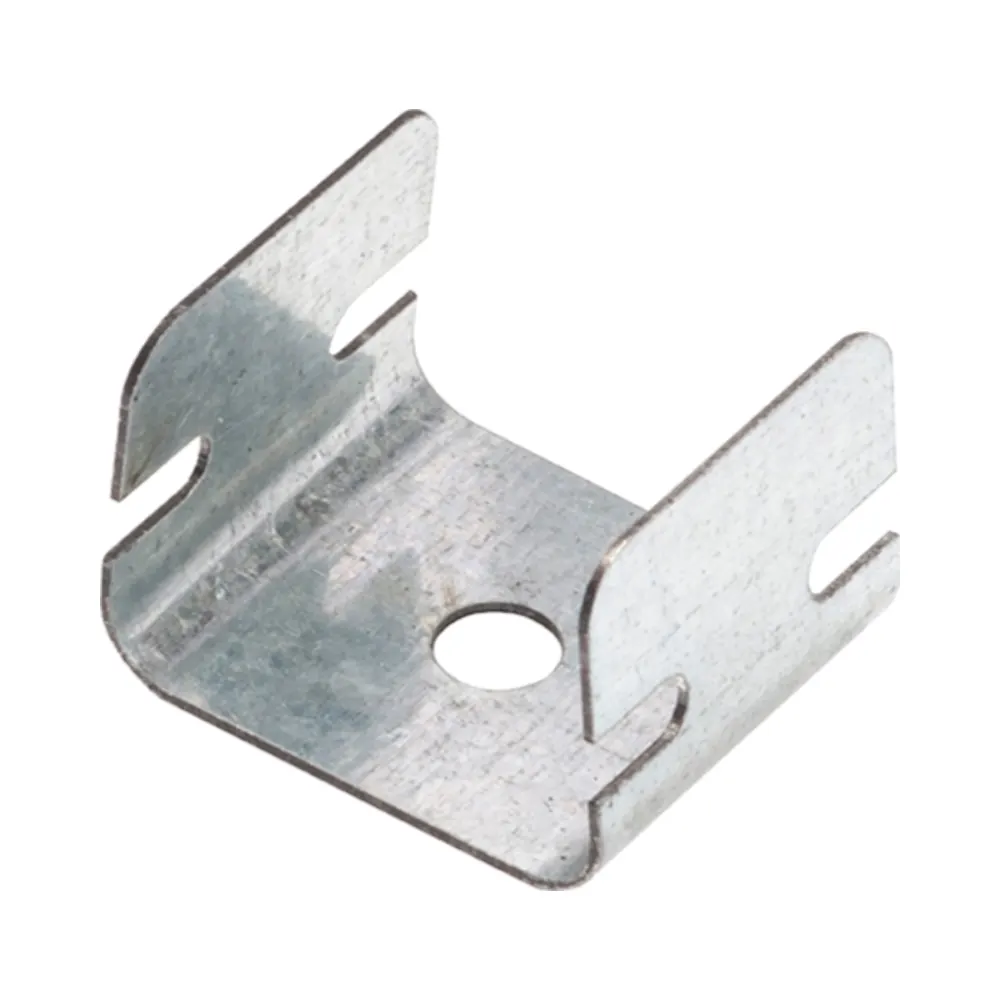

D-Line Safe-D U-Clip 30 Cable Fasteners 20x23x8mm – 100 Pieces
Safe-D U-clips can be fitted direct-to-surface, or in non-metallic trunking systems. All can be secured to substrates by shot-fired nails or screw-fixings.
After cables are inserted, tabs can be folded inwardly to safely secure the cables. They are produced from a specified steel with >1200ºC melting point.
The combination of the pliable gauge steel & rounded corner features makes Safe-D U-Clips quick & easy to install.

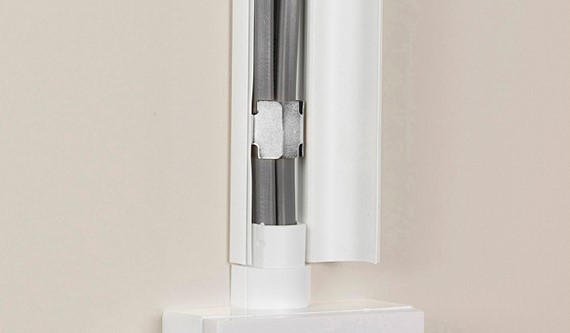

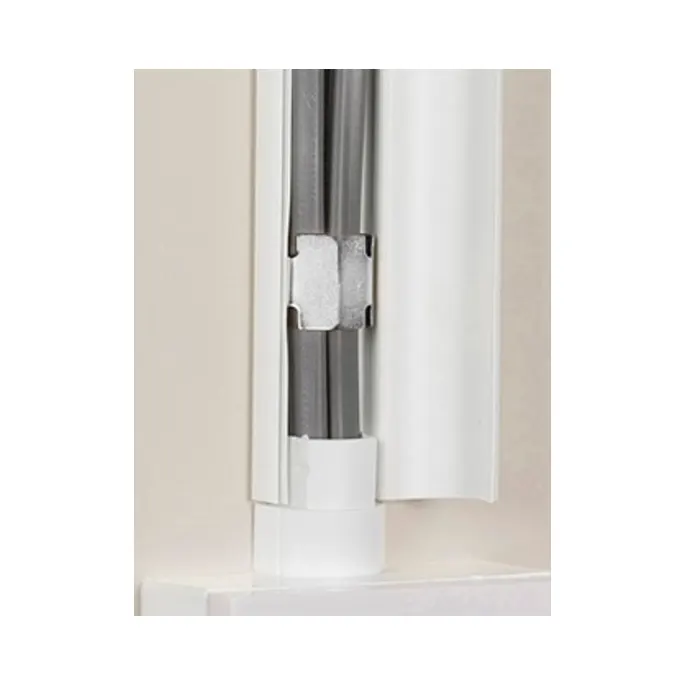

1st fix clips, then 2nd fix cables: Safe-D U-Clip 30 fits perfectly in 30 x 15mm Mini Trunking, while the 23mm base can fit 25 x 16mm traditional trunking also.

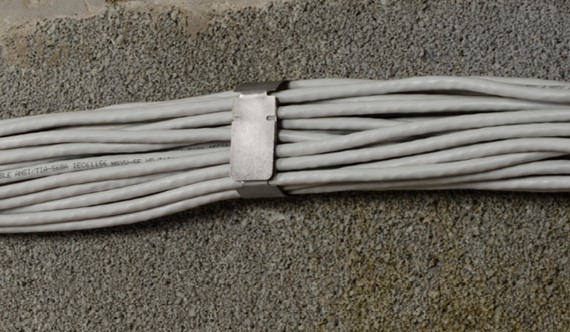

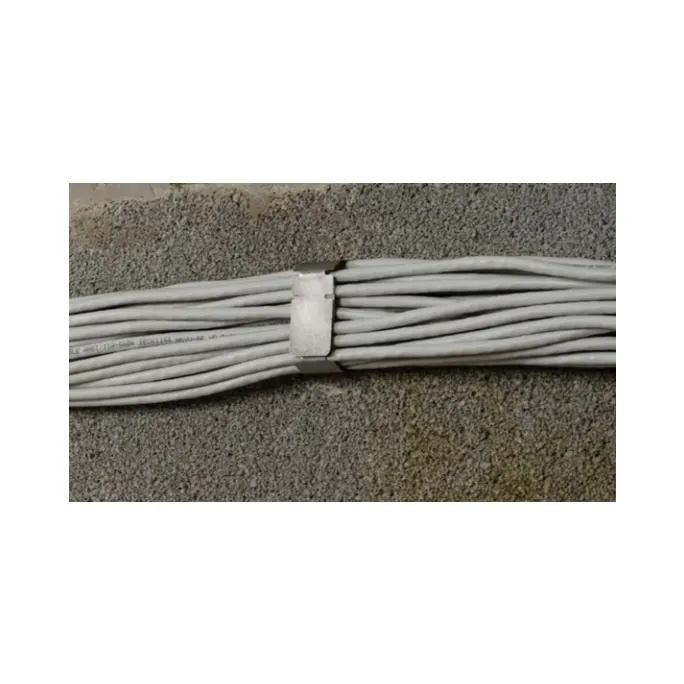

Alternatively Safe-D U-Clip 30 fire clips can be fixed directly to surfaces, with user-friendly and pliable tabs that simply fold-over to secure cables.
The 23mm width is ideal for popular 2x MICC or FP-cable combinations.
- Certified for 2 hours at 970°C

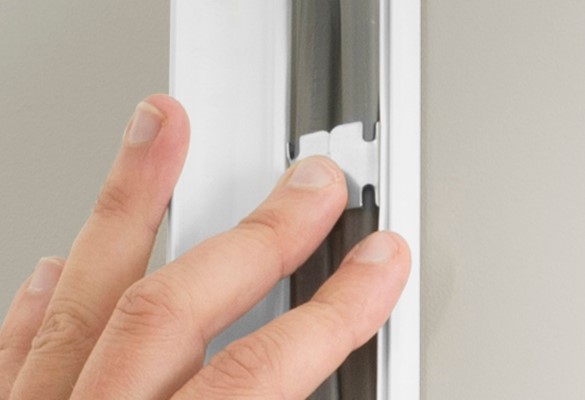

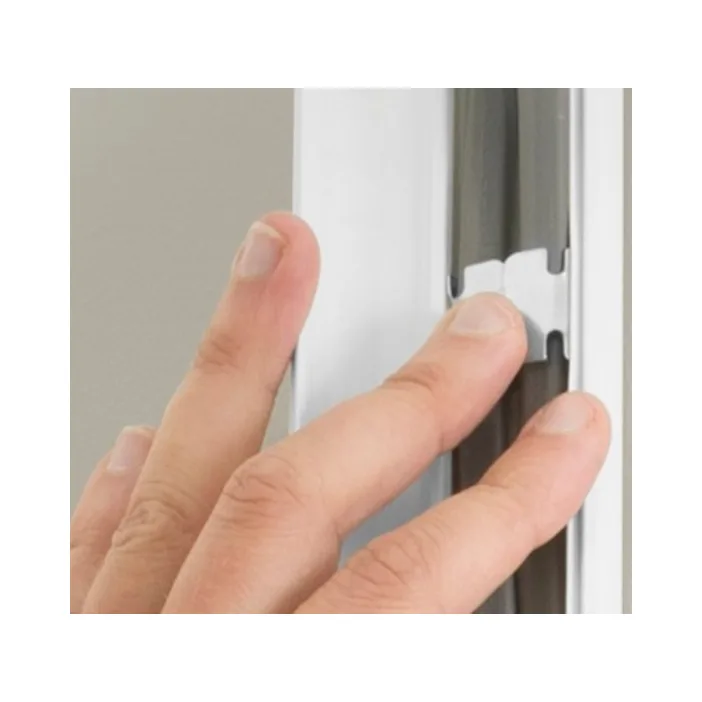

- Thumb friendly, easy fold side-tabs
- Ideal for ceiling voids, or popular PVC trunkings
- Rounded edges for easy handling
- Supplied as U-shape
- >1200°C melting point
- Fully safety tested to satisfy requirements of BS5839 pt 1 & BS7671
- Dimensions:
- 20mm (L) x 23mm (W) x 8mm (H)
- 5.7mm diameter pre-drilled hole in base
