Compact Flush-Mounted Ceiling PIR Presence Detector – DALI/DSI Digital Dimming
CP Electronics EBDSPIR-DD
Advanced Energy-Saving Lighting Control with PIR Detection and Digital Dimming
Efficient and Intelligent Lighting Control

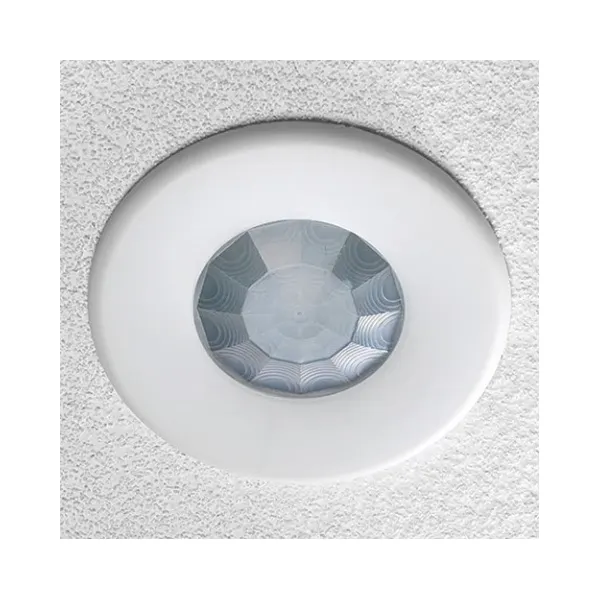

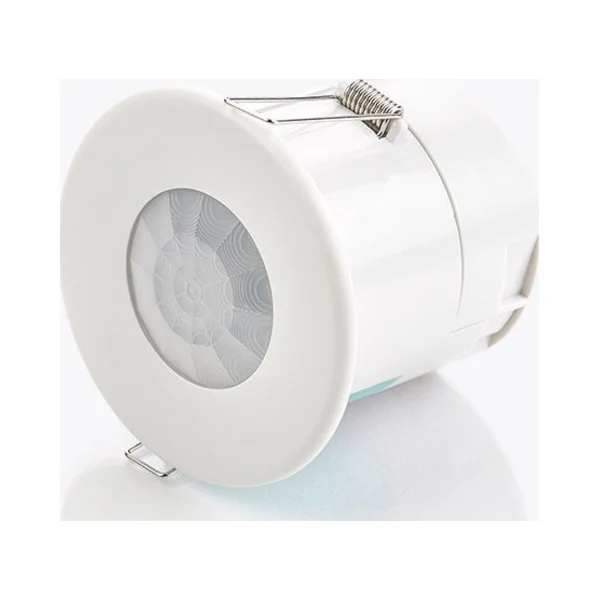

The CP Electronics EBDSPIR-DD PIR Presence Detector provides automatic lighting, heating, and ventilation control, making it ideal for commercial, office, and educational environments. Designed for flush-mounting into ceiling tiles or surface mounting, this compact and low-profile PIR sensor ensures seamless integration into any space.
Equipped with DALI/DSI digital dimming, the unit offers precise lux level adjustments and daylight harvesting, optimising energy efficiency and comfort. The self-contained design eliminates the need for external control boxes, while plug-in connections ensure a quick and hassle-free installation.
For added convenience, the detector is fully programmable using the UHS5 or UNLCDHS handsets, allowing users to customise lighting control settings and adjust on/off, lux levels, and scene recall with ease.
Key Features and Benefits
✅ Compact Low-Profile Design
- Flush-mounts into ceiling tiles or installs using a surface mounting box.
- Ideal for narrow ceiling voids, offering a discreet and efficient solution.
✅ Self-Contained & Pluggable for Quick Installation
- No external control boxes required, reducing complexity.
- Plug-in connections for fast and simple setup.
✅ Infrared Programmable for Customised Control
- Adjust settings easily via the UHS5 or UNLCDHS remote handsets.
- User-friendly on/off, lux level, and scene recall control.
✅ DALI/DSI Digital Dimming for Precision Lighting
- Supports step-down illuminance and maintained illuminance (daylight linking).
- Scene setting and recall for flexible lighting configurations.
✅ Enhanced Detection & Energy Efficiency
- 7m detection range at 2.8m mounting height, ideal for various spaces.
- Absence detection functionality reduces energy consumption.
✅ Compatible with All Lighting Types
- Suitable for LED, fluorescent, and other lighting systems.
- Two-channel flexibility allows for separate switching/dimming control.
✅ Built for Reliability – 5-Year Warranty
- Durable high-quality construction ensures long-term performance.
- Backed by a 5-year manufacturer’s warranty for peace of mind.
Technical Specifications
- Detection Type: PIR (Passive Infrared)
- Mounting Options: Flush-mount into ceiling tiles / Surface mounting box
- Detection Range: Up to 7m at 2.8m mounting height
- Control Type: DALI/DSI digital dimming
- Programming Options: Infrared programmable via UHS5 or UNLCDHS handset
- Functions: Presence/absence detection, daylight linking, scene recall, lamp burn-in
- Channels: Two-channel flexibility for switching/dimming
- Power Supply: 230V AC
- Ingress Protection: IP40
- Warranty: 5 Years
Ideal Applications
- ✅ Commercial Buildings & Offices – Intelligent lighting control for energy efficiency.
- ✅ Educational Facilities – Automatic lighting in classrooms, lecture halls, and libraries.
- ✅ Retail & Hospitality – Adjustable lighting scenes for enhanced ambiance.
- ✅ Healthcare & Public Spaces – Reliable occupancy detection for improved energy savings.
Why Choose the CP Electronics EBDSPIR-DD PIR Detector?
This intelligent PIR presence detector provides seamless lighting automation with DALI/DSI dimming for enhanced energy efficiency, comfort, and ease of use. With its self-contained design, programmable features, and quick installation, it is a top choice for modern lighting control solutions.
