Description
Maintenance Free Junction Box

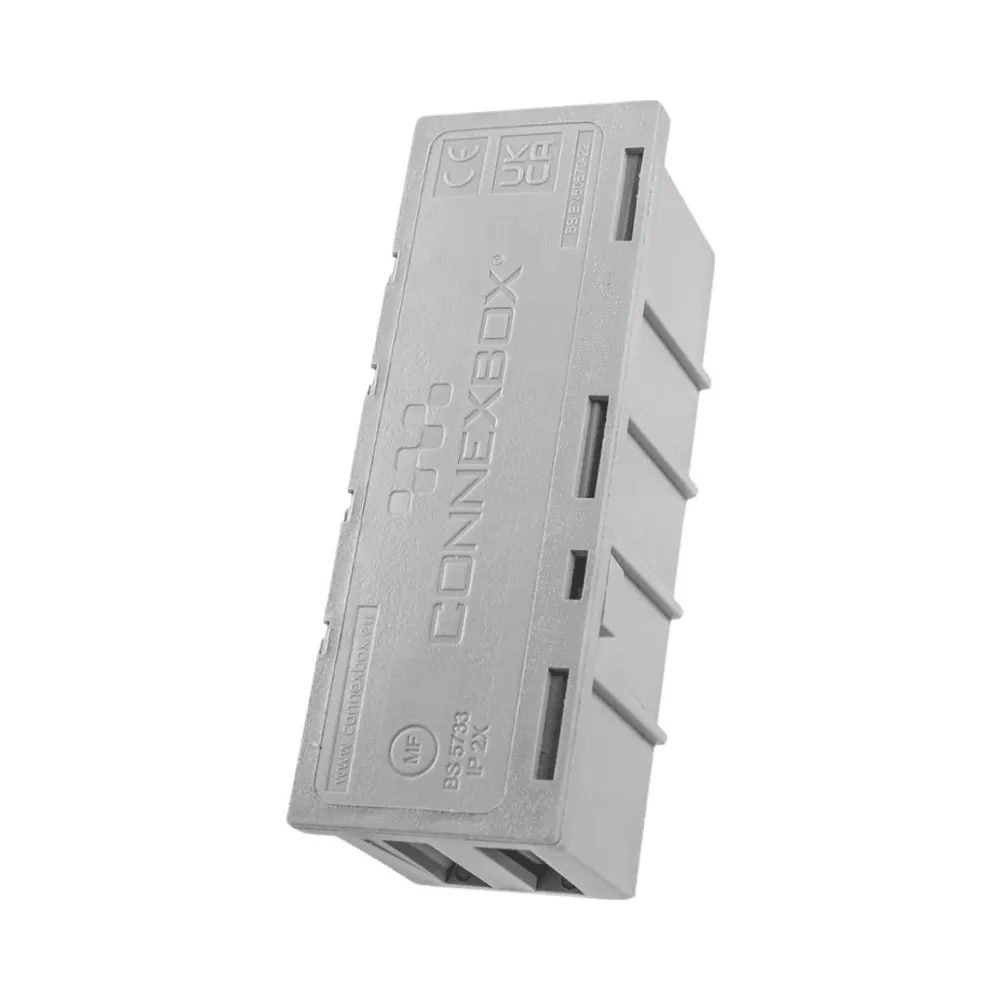

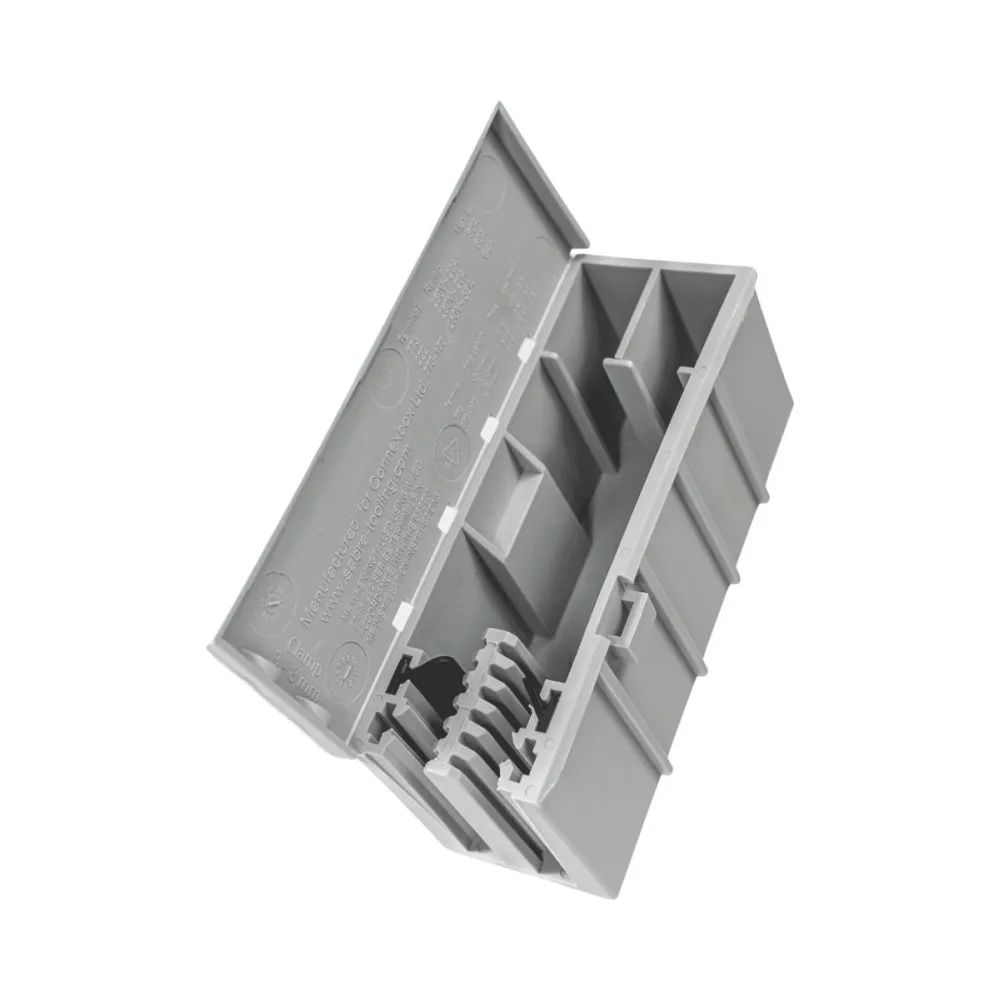

Connexbox® WBX-001-G
The Connexbox Classic junction box is the original game changing enclosure designed to make electrical installations simpler quicker and safer. Purpose built for use with Wago 222 and 773 connectors it allows cables to be connected outside the enclosure eliminating the need to work in cramped spaces and significantly reducing installation time.
Its compact design means the Connexbox Classic can easily pass through a 60mm spotlight cut out making it ideal for ceiling voids and confined locations. Built with flexibility in mind the enclosure supports mixed use of Wago 222 and 773 connectors allowing up to 24 terminations within a single junction box.
Designed to handle demanding installations the Connexbox Classic accommodates up to six cables with adjustable clamps securing both flex and twin and earth cables from 1.0mm to 6.0mm. Robust cable grippers provide reliable strain relief for cables up to 8.0mm in diameter delivering a secure professional finish every time.
Fully compliant with current wiring regulations and certified maintenance free the Connexbox Classic is built to last and trusted by electricians for speed flexibility and consistent results on site.
Key Features – Connexbox Classic Junction Box
- Original Connexbox junction box design
- Purpose built for Wago 222 and 773 connectors
- Allows cable termination outside the enclosure
- Compact size fits through a 60mm spotlight hole
- Supports up to six cables
- Adjustable clamps for flex and twin and earth cables
- Robust grippers secure cables up to 8mm diameter
- Supports mixed connector use for up to 24 terminations
- Maintenance free and fully regulation compliant
Technical Specifications
Standards
- BS 7671 2018
- BS EN 60670-22
- BS 5733 maintenance free
Ingress protection: IP2X
Dimensions
- 108mm length
- 34mm width
- 42mm depth
Cable Capacity
- 3 x 6.0mm twin and earth
- 4 x 4.0mm twin and earth
- 6 x 1.0 1.5 or 2.5mm twin and earth
- 6 x 1.0 or 1.5mm three core and earth
- 6 x flexible cables up to 8mm diameter
Connector Compatibility
- Wago 222 series connectors
- Wago 773 series connectors
- Suitable for Wago 2773 series applications
Rating
Up to 41A 400V 4kV
About Connexbox
Connexbox was founded by electrician Ray Brewer with the goal of making electrical connections simpler quicker and safer. For more than 17 years the company has designed and manufactured the trusted grey junction boxes used throughout the UK electrical trade. Supplying products under the Connexbox name allows greater control over innovation technical support and long term product development while maintaining the same proven designs electricians trust.
