Description

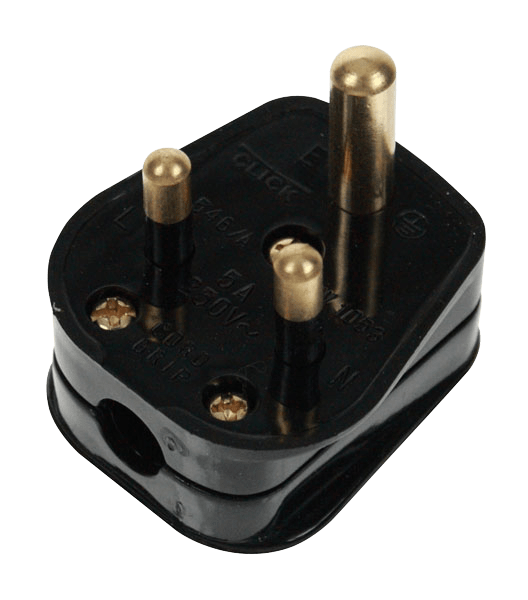

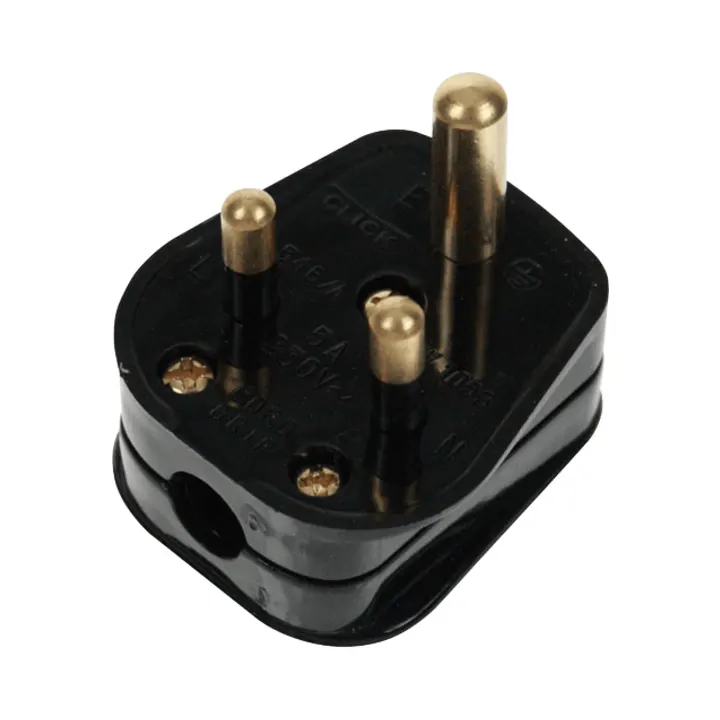

Click Scolmore Essentials 5A Round Pin Plug
- Resilient material, suitable for rough usage
- Screw bar grip cable restraint
- Unfused
- Access to earth pin for testing
The Essentials group of products comprises those items that you will find in a wide variety of installations.
| Dimensions (mm) | 41(W) x 19.5(D) x 45(H) |
|---|---|
| Colour | Black |
| Materials | Body: Nylon Pins: Brass Internal Busbars: Formed Pressed Brass |
| Operating Voltage (V AC) | 250 |
| Resisitve Load Rating (A) | 5 |
| Termination Type | Screw |
| Terminal Size (mm) | ⌀3.2 |
| Terminal Capacity – Solid (mm²) | 1.5 |
| Cable Entry Dimensions (mm) | ⌀9.4 |
| Cable Restraint Supplied | Yes |
| Ingress Protection | IP20 |
| Operational Temeprature (°C) | -5 to +40 |
| Warranty (Years) | 10 |
| Frequency (Hz) | 50 |
| Terminal Torque Value (Nm) | 0.4 |
| Standards | BS 546 |
