Description

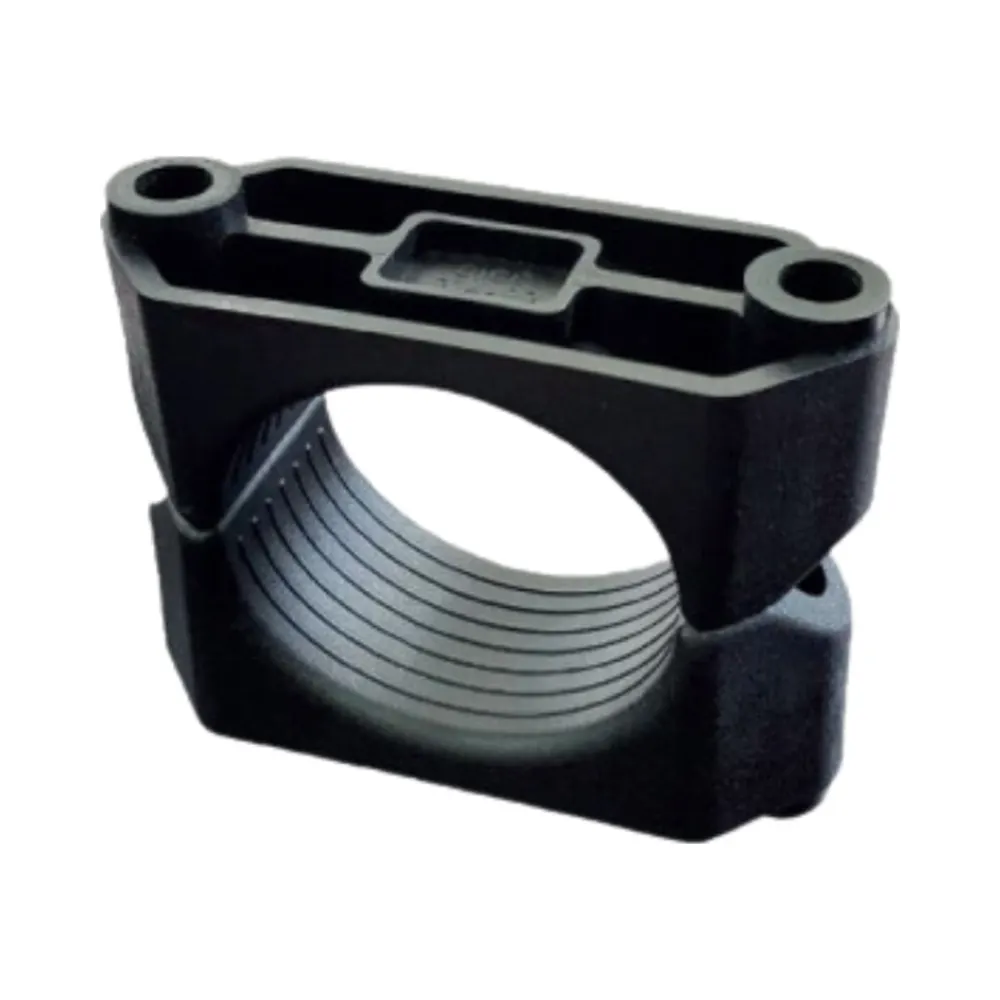

Two Bolt LSF Type Cleat for 68-76mm Cables
BICC Components TBLSF04
The TBLSF04 Cleat secures cables between 68 mm and 76 mm, offering heavy-duty performance with high mechanical strength. It minimizes cable movement during faults, ensuring consistent operation in demanding environments. The BICC TBLSF04 Two Bolt LSF Type Cleat supports cables from 68 mm to 76 mm. Its LSZH Nylon 66 ensures mechanical stability and fire safety.
Key Features of Two Bolt LSF Type Cleat
- Each cleat is sold individually, per item.
- Strong cleat design for heavy-duty applications
- LSZH properties for fire safety
- UV and weather-resistant
- Maintains cable stability during faults
Technical Specifications
- Cable Diameter: 68 – 76 mm
- Cleat Dimensions (mm): C: 96.0, A: 114.5, B: 50.0, E: 93.0
- Fixing Holes: 2 x M10
- Material: Nylon 66 Glass Reinforced (LSZH)
- Compliance: EN 61914:2016 & IEC 61914:2015
Why Choose TBLSF04?
TBLSF04 offers exceptional cable retention and minimises movement during faults, ensuring safety in critical systems
