Description

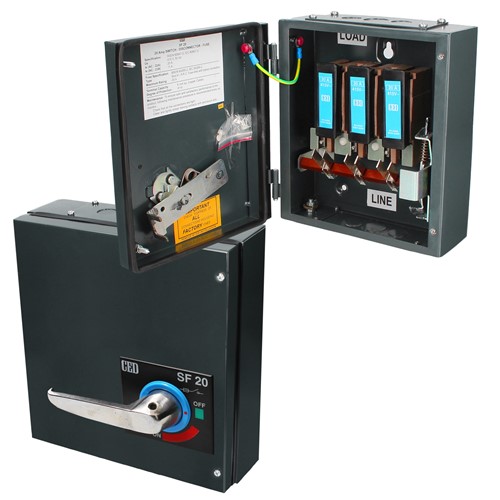

Axiom SF20 20A TPN Switch Fuse with Fuses
Reliable Low-Capacity Power Distribution
The Axiom SF20 20A TPN Switch Fuse provides dependable power distribution within a sturdy steel enclosure. Designed for various environments, this switch fuse ensures safe and efficient operation. It complies with EN60947-3 1992/A1-1995, A2-1997 standards, and the Low Voltage Directive 73/23/EEC, guaranteeing both safety and performance.
Key Features
- Safe Fuse Replacement: The design isolates fuses at both the top and bottom, ensuring safe and easy replacement.
- High-Quality Components: The unit uses top-grade components, meeting current specifications, and includes durable switch fuses.
- Compliance and Versatility: The switch fuse complies with the Low Voltage Directive 73/23/EEC and supports BS88 Part 2 fuses, making it versatile for multiple applications.
- Durable Construction: The steel enclosure features a rust-resistant epoxy grey powder paint finish. Additionally, it includes knockouts on each side and a lockable handle for secure installation.
- Reliable Terminal Base: The ceramic terminal fuse base supports 415V – 50Hz triple pole and neutral (4 poles) operations, ensuring consistent performance.
Technical Specifications
- Dimensions: Compact design measuring 220 x 205 x 95 mm.
- Ingress Protection: Rated IP41, protecting against solid objects and limited moisture ingress.
- Color and Finish: Dark metallic grey, providing a sleek and professional appearance.
- Electrical Specifications:
- Input Voltage: 440V
- Output Voltage: 415V – 50Hz
- Load Capacity: 20A
- Terminal Capacity: Supports up to 6mm² copper cable.
- Knockouts: Includes 2×20 mm and 1×25 mm knockouts for flexible installation.
- Construction: The steel body offers long-lasting durability and protection.
- Warranty: Backed by a 1-year warranty for peace of mind.
Applications
The Axiom SF20 20A TPN Switch Fuse is ideal for domestic, commercial, and industrial applications. Whether used in a home, business, or industrial setting, it ensures reliable and safe power distribution.
